Item Specification
Installation
orientation
and restric-
tions
Installation orientation:
• Connected to a CPU Unit or a Communication Control Unit
*1
Possible in the upright installation orientation.
• Connected to a Communications Coupler Unit
Six possible orientations.

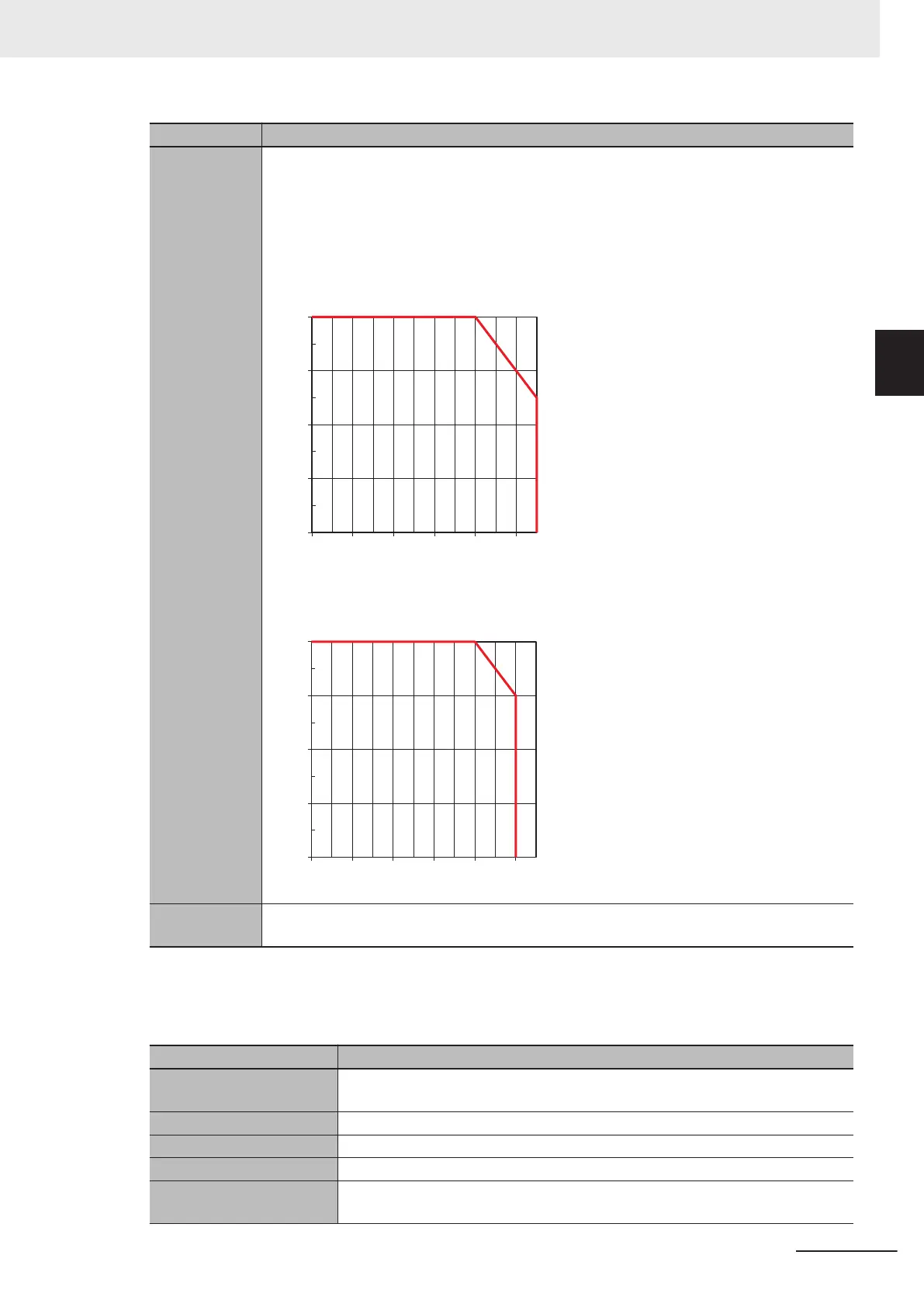

Restriction: For upright installation, the ambient temperature is restricted as shown below ac-
cording to the total Unit load current.
2
1
0
4
3
2
0
30 40 5550100
Load current [A]
Ambient Operating Temperature (°C)
2.5 A
For all installation orientations other than upright installation, the ambient temperature is re-
stricted as shown below according to the total Unit load current.
2
1
0
4
3
2
0
30 40 50100
Load current [A]
Ambient Operating Temperature (°C)
Protective
functions
Overvoltage protection circuit and short detection
*1. Only NX102 CPU Units and Communication Control Units can be connected. NX1P2 CPU Units cannot be
connected.
l
NX-SOD400
Item Specification
Number of safety output
points
4 points
Internal I/O common PNP (sourcing outputs)
Maximum load current 0.5 A/point and 2.0 A/Unit
Rated input voltage 24 VDC (20.4 to 28.8 VDC)
Number of safety slave
connections
1
2 Specifications
2 - 33
NX-series Safety Control Unit User's Manual (Z930)
2-3 Safety Output Unit
2
2-3-1 Models and Specifications
