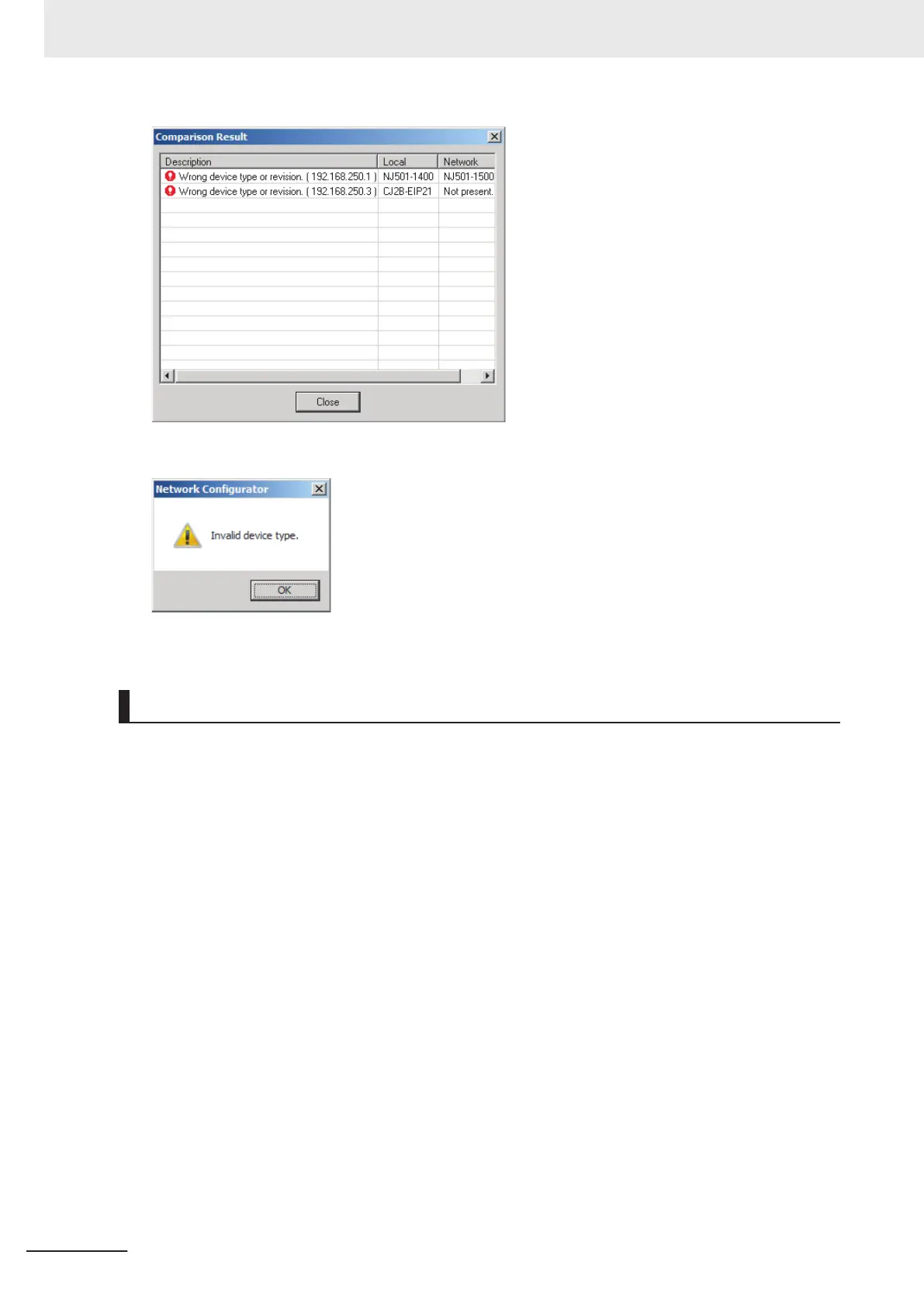

• Differences Found in the Device Type
Click the OK Button or the Close
Button.
Verifying the Device Parameters
Use the following procedure to compare the device parameters for the devices selected in the Network
Configuration Pane with those of the devices connected on the EtherNet/IP network.
The IP addresses, device types, and device parameters are compared.
1 Connect the Network Configurator to the network.
2 Click the icon of the built-in EtherNet/IP port to verify. To select multiple nodes, press and hold
the Shift Key or the Ctrl Key while you select additional icons. (In the following example, 2 no-
des are selected: 192.168.250.1 and 192.168.250.2.)
Right-click the icon to display the pop-up menu and select Parameter - V
erify.
