A-3
EDS File Management
This section describes the EDS file management on the Network Configurator.
Precautions for Correct Use
On Windows Vista or Windows 7:
We recommend that you select Run as administrator to start the Network Configurator for op-
erations with EDS files.
If you do not select Run as administrator, the following condition will result according to Win-
dows user management for security purposes.
The following operations are not valid if you log in with another user account, and you need to
restart the Network Configurator again: Install, Create, Delete, and Create EDS Index File un-
der EDS File.

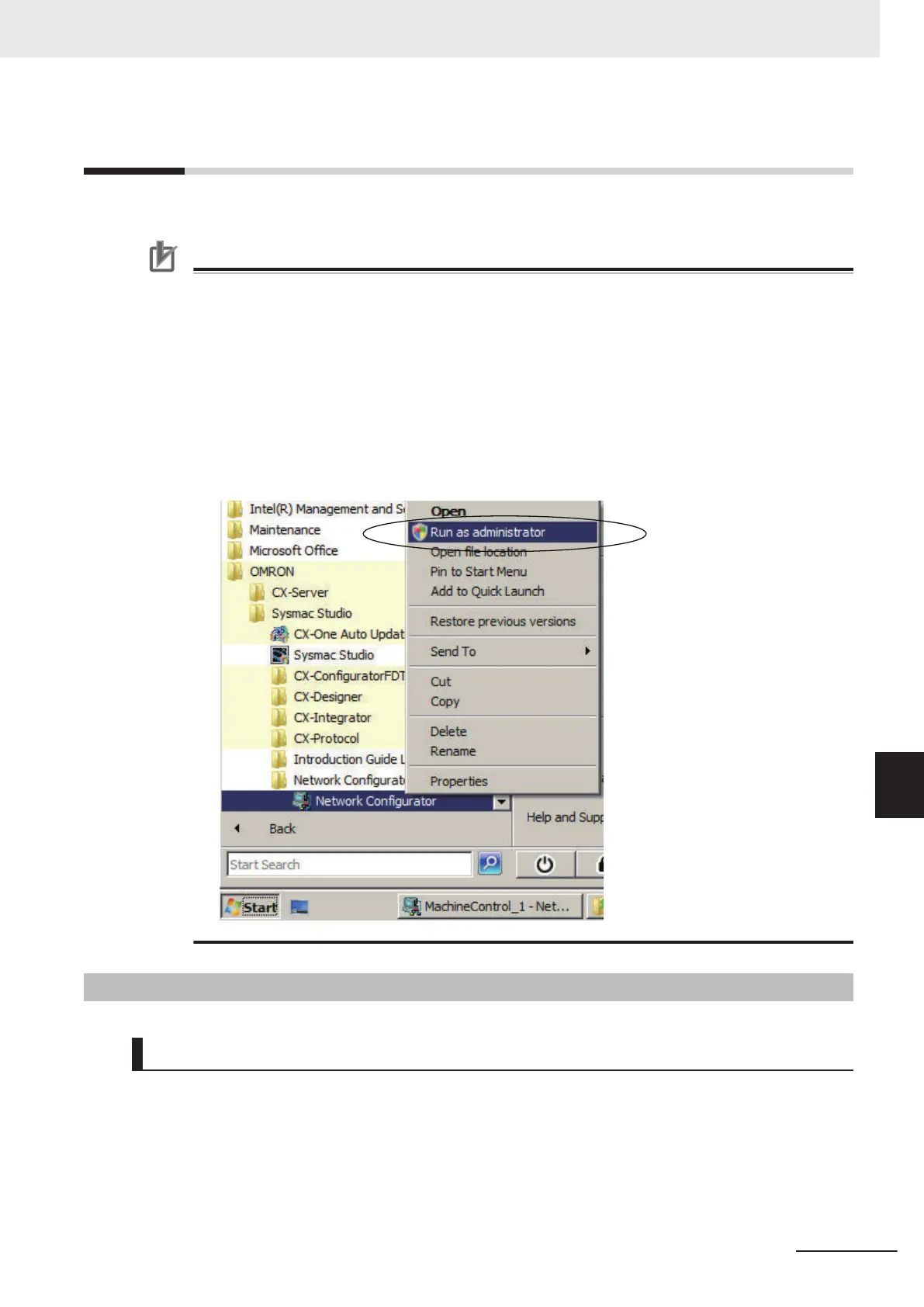

When you start the Network Configrator, select Run as administrator as below.
1. Select the Network Configurator from the Start Menu, and then right-click.
2. Select Run as administrator from the displayed pop-up menu.
A-3-1
Installing EDS Files
EDS File - Install
The Network Configurator can support new devices if the proper EDS files are installed.
T
o install the EDS file, use the following procedure.
1 Select EDS File
- Install.
The Install EDS File Dialog Box is displayed.
Appendices
A-39
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
A-3 EDS File Management
A
A-3-1 Installing EDS Files
To Next Page
