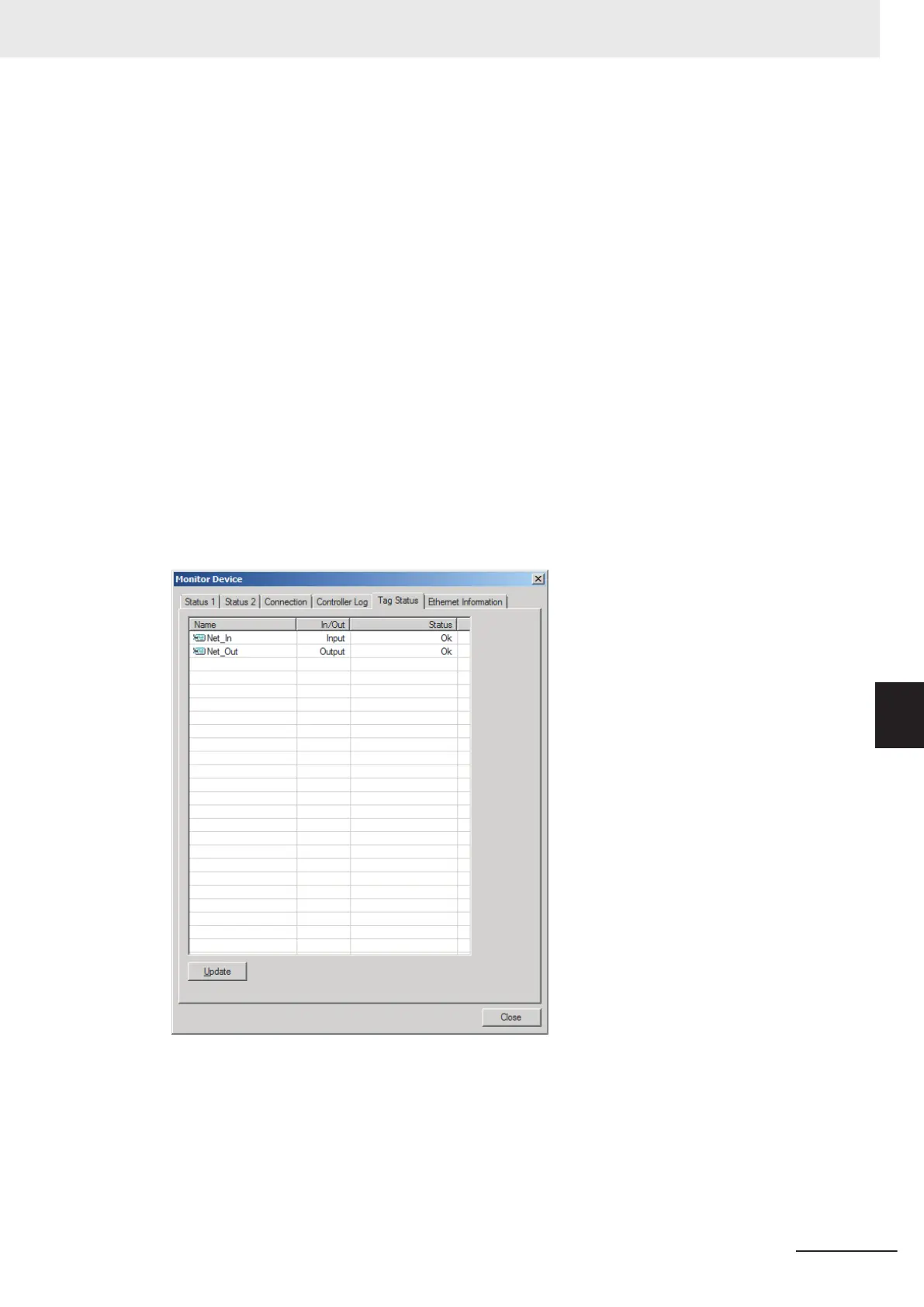

Tag Status Tab Page
This tab page displays if the tag settings for each tag for tag data links are set so that data can be
exchanged with the CPU Unit.
The following status is displayed depending on the status that is set.
Normally resolved: Normal data exchange is possible.
Resolving: The variables with tags are being resolved.
When the resolution is completed normally
, a connection will be established and the data ex-
change will start.
Different sizes: Different sizes are set for the network variables and the tag settings.
A connection will not be established for a tag for which this error occurs.
No tag: A network variable is not set in the variable table in the CPU Unit for the specified tag setting.
A connection will not be established for a tag for which this error occurs.
Attribute error:
1. Writing is not possible for Read Only and Constant attributes.
2. The I/O direction that is set in the tag data link settings does not agree with the I/O direction
of the variable in the CPU Unit. There is an error in the setting of a Network Publish attribute
for a CPU Unit variable.
A connection will not be established for a tag for which this error occurs.
If the status is not “Normal resolution completed,” check the tag data link settings or the network
variable settings in the variable table in the NJ/NX-series CPU Unit.
