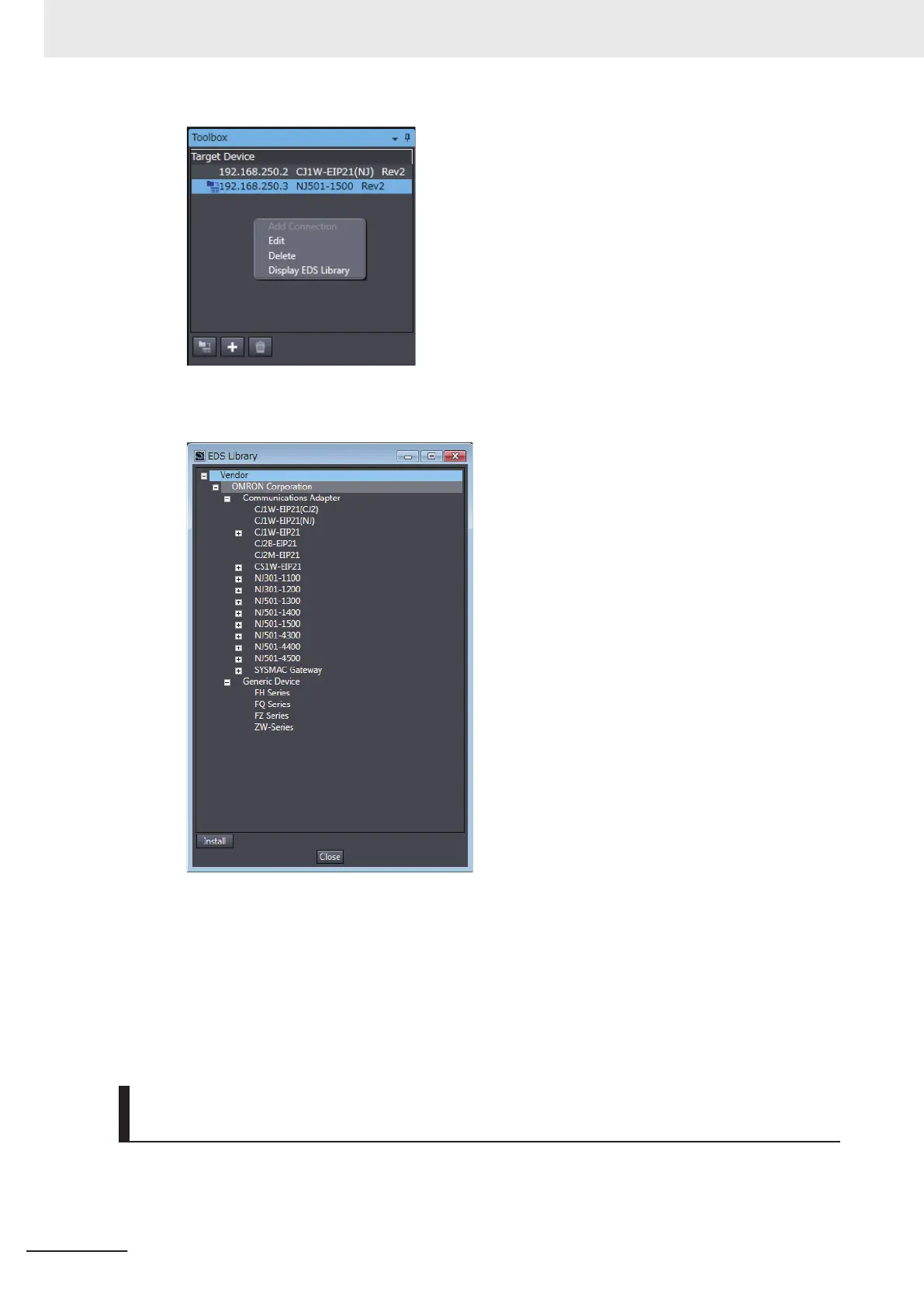

2 The EDS Library Dialog Box is displayed. Click the Install Button.
3 Select the EDS file to add, and then click the Open Button.
The EDS file is added.
4 The EtherNet/IP device with the EDS file installed is added to the EDS Library.
Devices listed in the EDS Library are used as a candidate device list when adding devices to
the Target Device List in the Toolbox of the EtherNet/IP Connection Setting Tab Page.
Changing the Target Device Settings after Making Connection Set-
tings
If you change the IP address, model, or revision of the target device after making the connection set-
tings, you must also change the target device settings that are included in the connection settings.
You can change the target device settings entirely.
Appendices
A-20
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
