20 Frequency inverters

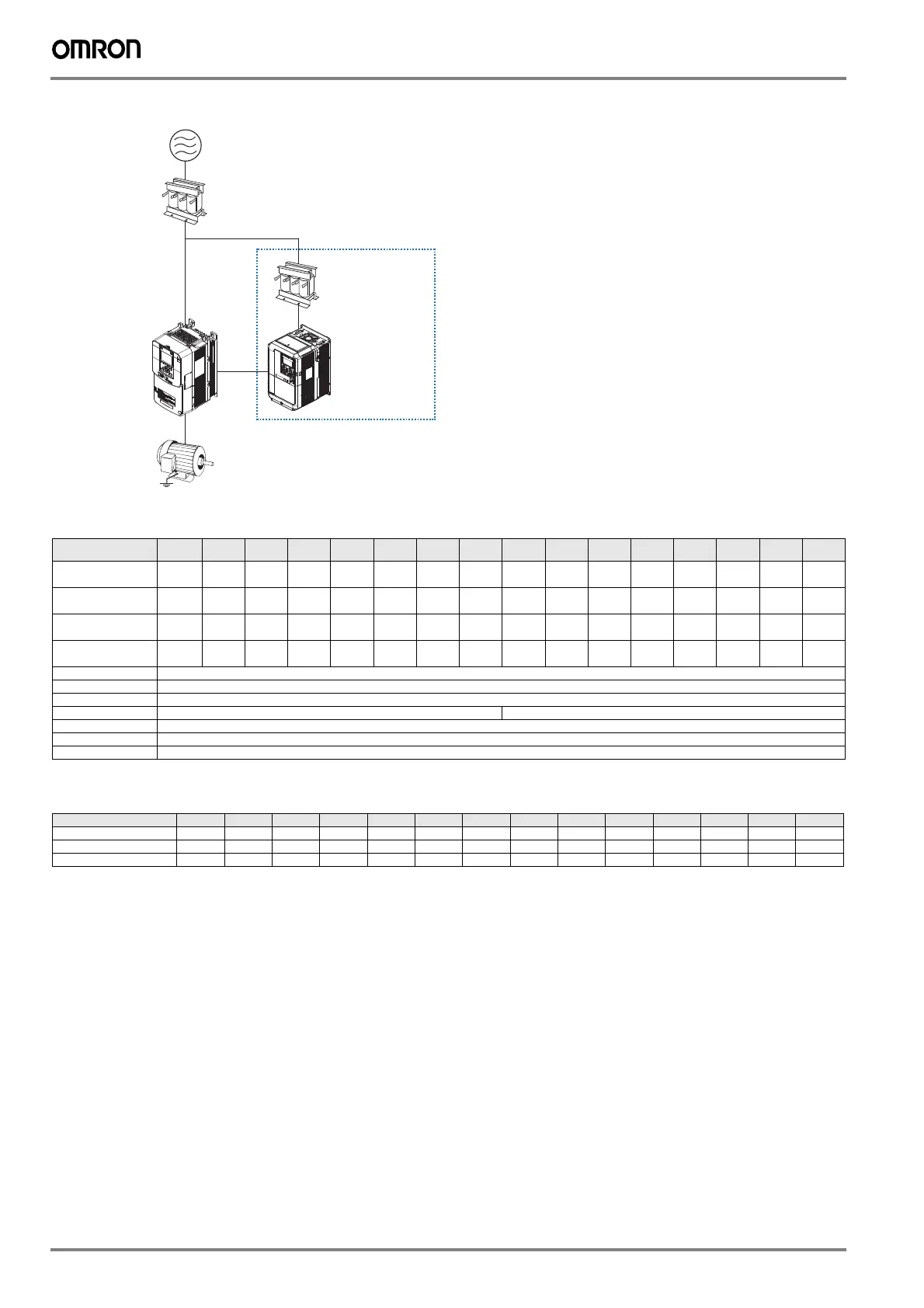

R1000 kit - Regenerative Braking unit system
Regenerative Braking unit (R1000)
Current suppression reactor
Reference:
CIMR-RC@
4A03P5 4A0005 4A0007 4A0010 4A0014 4A0017 4A0020 4A0028 4A0035 4A0043 4A0053 4A0073 4A0105 4A0150 4A0210 4A0300
Max. applicable
motor capacity (kW)
3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75 110 160 220 315
Rated output
capacity (kW)
*1
*1. Rated output capacity is calculated with a rated input voltage of 400 V.
3.5 5 7 10 14 17 20 28 35 43 53 73 105 150 210 300
Rated input current
AC (A)
5 8 11 16 22 27 32 43 54 66 81 110 161 237 326 466
Rated output current
DC (A)
7 111522303643587389109149217320440629
Rated input voltage 3-phase 380 to 480 VAC
Rated frequency 50/60 Hz
Power factor > 0.9 at full load
Degree of protection IP20 IP00
Ambient humidity 95% RH or less (without condensation)
Storage temperature -20 to 60ºC
Ambient temperature -10 to 50ºC
Reference: B150@
9105 9106 9107 9108 9109 9110 4118 9111 9112 9113 9114 5002 5008 5011
Rated current (A) 7.5 10 15 25 30 40 50 60 75 100 161 237 326 466
Inductance (mH) 1.2 0.6 0.4 0.3 0.2 0.15 0.12 0.1 0.08 0.06 0.04 0.03 0.02 0.013
Heat loss (W) 2119233633404656817295105120160
Motor
Power
supply
Q2A
Regeneretive
braking unit (R1000)
Current suppression
reactor
AC input
reactor
R1000 kit
I175E-EN-01+Q2A+Datasheet.fm Seite 20 Montag, 26. März 2018 3:18 15
