Omron Q2A Series User Manual

Q2A 21
Q2A inverter
Ordering information
Specifications
Model
Voltage
Heavy Duty (HD) < 460 V Heavy Duty (HD) ≥ 460 V Normal Duty (ND) < 460 V Normal Duty (ND) ≥ 460 V
Max motor
(kW)
Rated
current (A)
Max motor
(kW)
Rated
current (A)
Max motor
(kW)
Rated
current (A)
Max motor
(kW)
Rated
current (A)
400 V 0.55 1.8 0.55 1.6 0.75 2.1 0.75 2.1 Q2A-A4002-AAA
0.75 3.4 0.75 2.1 1.5 4.1 1.5 3.4 Q2A-A4004-AAA
1.5 4.8 1.5 3.4 2.2 5.4 2.2 4.8 Q2A-A4005-AAA
2.2 5.5 2.2 4.8 3.0 7.1 3.0 6.9 Q2A-A4007-AAA
3.0 7.2 3.0 6.9 3.7 8.9 3.7 7.6 Q2A-A4009-AAA
3.7 9.2 3.7 7.6 5.5 11.9 5.5 11 Q2A-A4012-AAA
5.5 14.8 5.5 11 7.5 17.5 7.5 14 Q2A-A4018-AAA
7.5 18 7.5 14 11 23.4 11 21 Q2A-A4023-AAA
11 24 11 21 15 31 15 27 Q2A-A4031-AAA
15 31 15 27 18.5 38 18.5 34 Q2A-A4038-AAA
18.5 39 18.5 34 22 44 22 40 Q2A-A4044-AAA
22 45 22 40 30 59.6 30 52 Q2A-A4060-AAA
30 60 30 52 37 74.9 37 65 Q2A-A4075-AAA
37 75 37 65 45 89.2 45 77 Q2A-A4089-AAA
45 91 45 77 55 103 55 96 Q2A-A4103-AAA
55 112 55 96 75 140 75 124 Q2A-A4140-AAA
75 150 75 124 90 168 90 156 Q2A-A4168-AAA
90 180 90 156 110 208 110 180 Q2A-A4208-AAA
110 216 110 180 132 250 150 240 Q2A-A4250-AAA
132 260 150 240 160 296 185 302 Q2A-A4296-AAA
160 304 185 302 200 371 220 361 Q2A-A4371-AAA
200 371 220 361 220 389 260 414 Q2A-A4389-AAA
220 414 260 414 250 453 300 477 Q2A-A4453-AAA
250 453 300 477 315 568 335 515 Q2A-A4568-AAA
315 605 335 515 355 675 370 605 Q2A-A4675-AAA
E
A
A
B
C
C
D
B
MCCB
Q2A
Filter
Input AC
Reactor
Motor
Ground
Power
Supply
Braking Resistor
DC Reactor
Feedback Speed Option Card
Input/Output Option Card
Choke
Output AC Reactor
or
Braking chopper
R1000 kit
Regenerative solution
E
D1000 kit
Regenerative solution
E
LCD Remote
Installation
Remote Operator
Extansion Cable
USB Cable
A
A
A
E
Communication Option Card
D
C
Mounting
Bracket

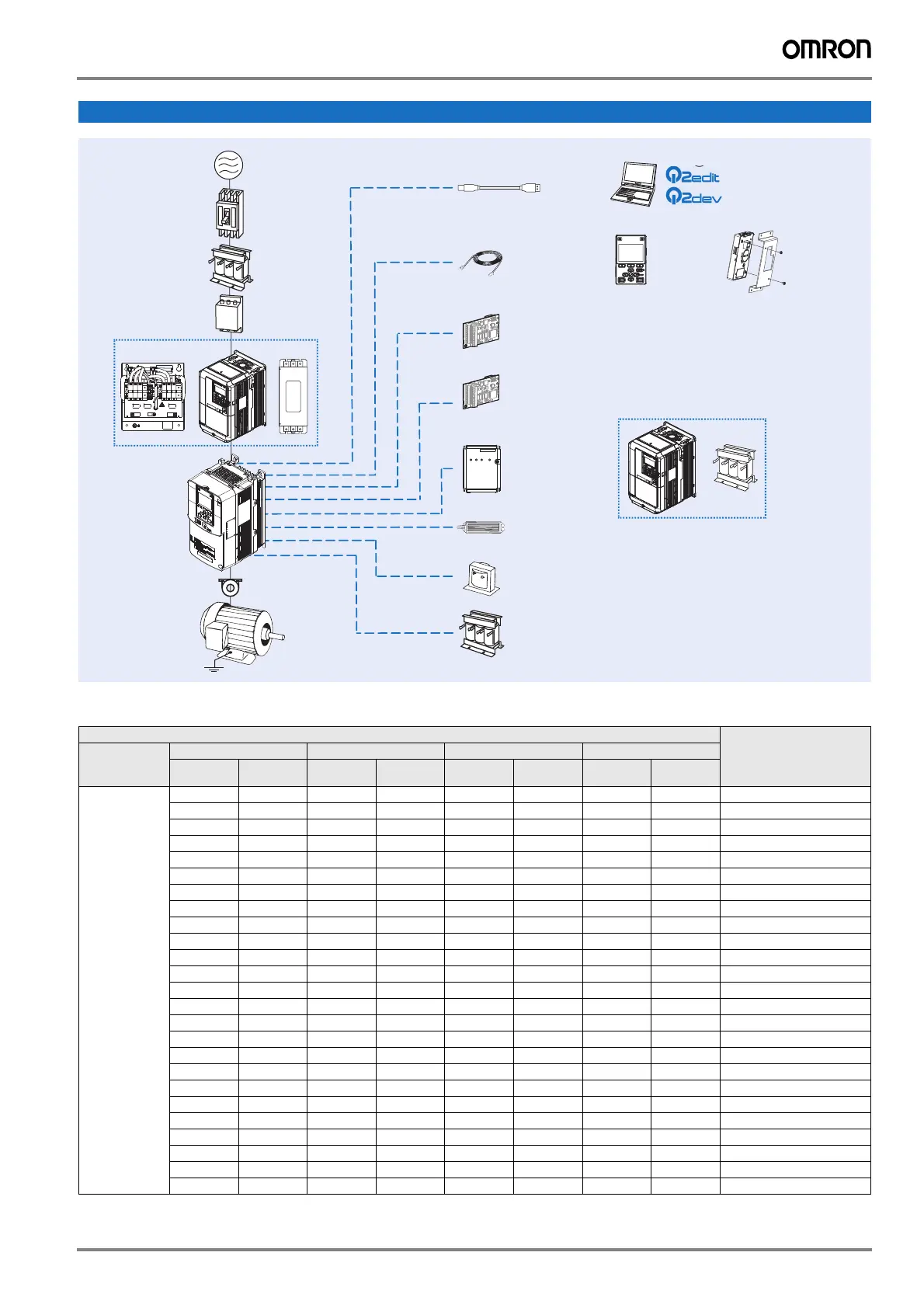

I175E-EN-01+Q2A+Datasheet.fm Seite 21 Montag, 26. März 2018 3:18 15

Omron Q2A Series Specifications
