3-1 Servo Drive Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications

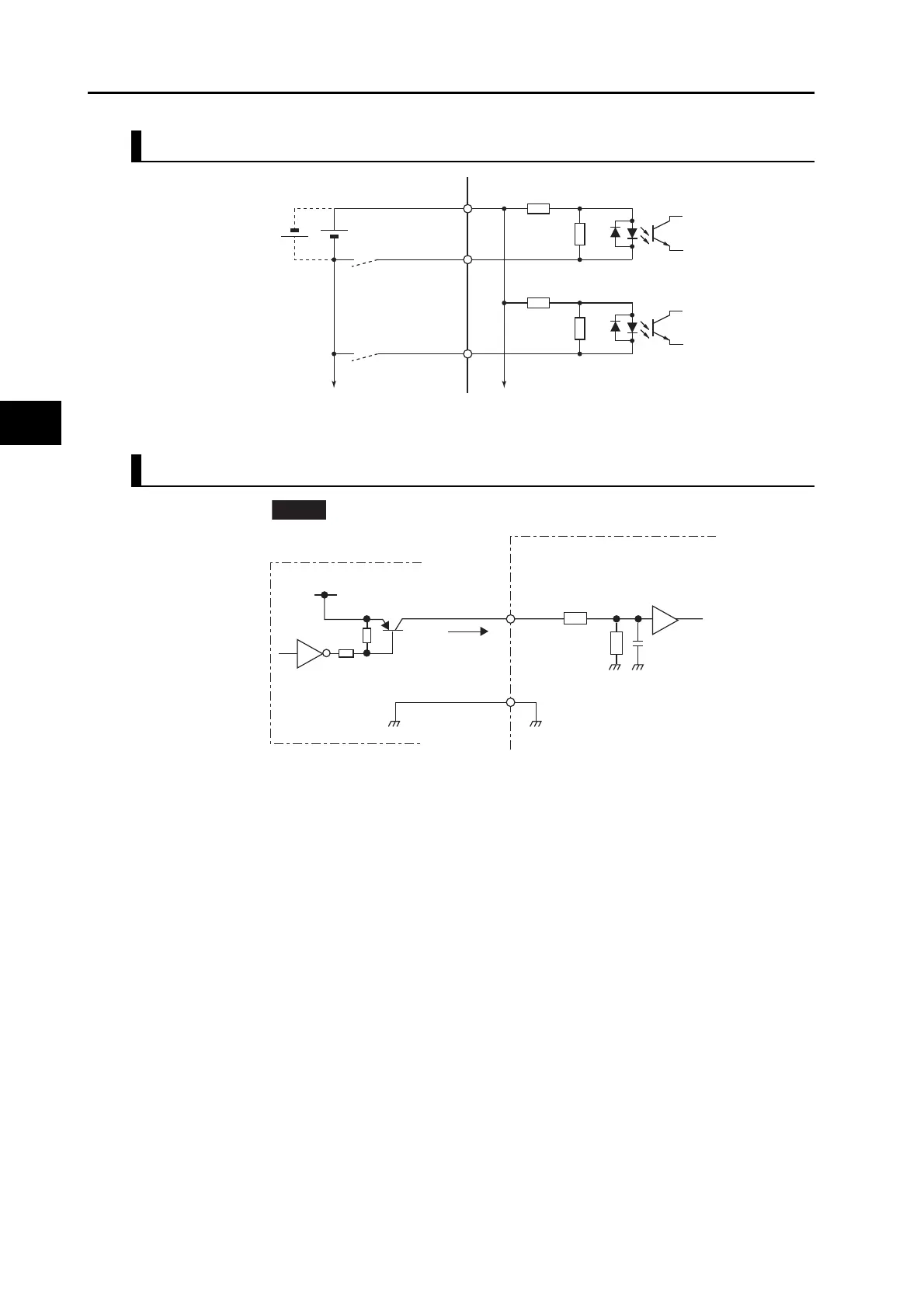

General-purpose Input
Sensor Input
Sensor ON Input
 A PNP transistor is recommended.
 The signal level is as follows.
H level: 2.0 V or more, L level: 0.8 V or less
4.7 kΩ
1.0 kΩ
8
9
SI1
SI2
7+24VIN
To other input circuit
External power supply
12 VDC ± 5% to
24 VDC ± 5%
Signal level
ON level: 10 V or more
OFF level: 3 V or less
To another input circuit GND common
Minimum ON time 40 ms
Photocoupler input
4.7 kΩ
1.0 kΩ
Photocoupler input
Input current
specification
10 mA max. (per point)
ABS
SENGND
SENGND
20
100
Ω
SEN
At high level
Approx. 1 mA
+
5 V
7406 or equivalent
4.7 K
Ω
1
μ
F
13
