14

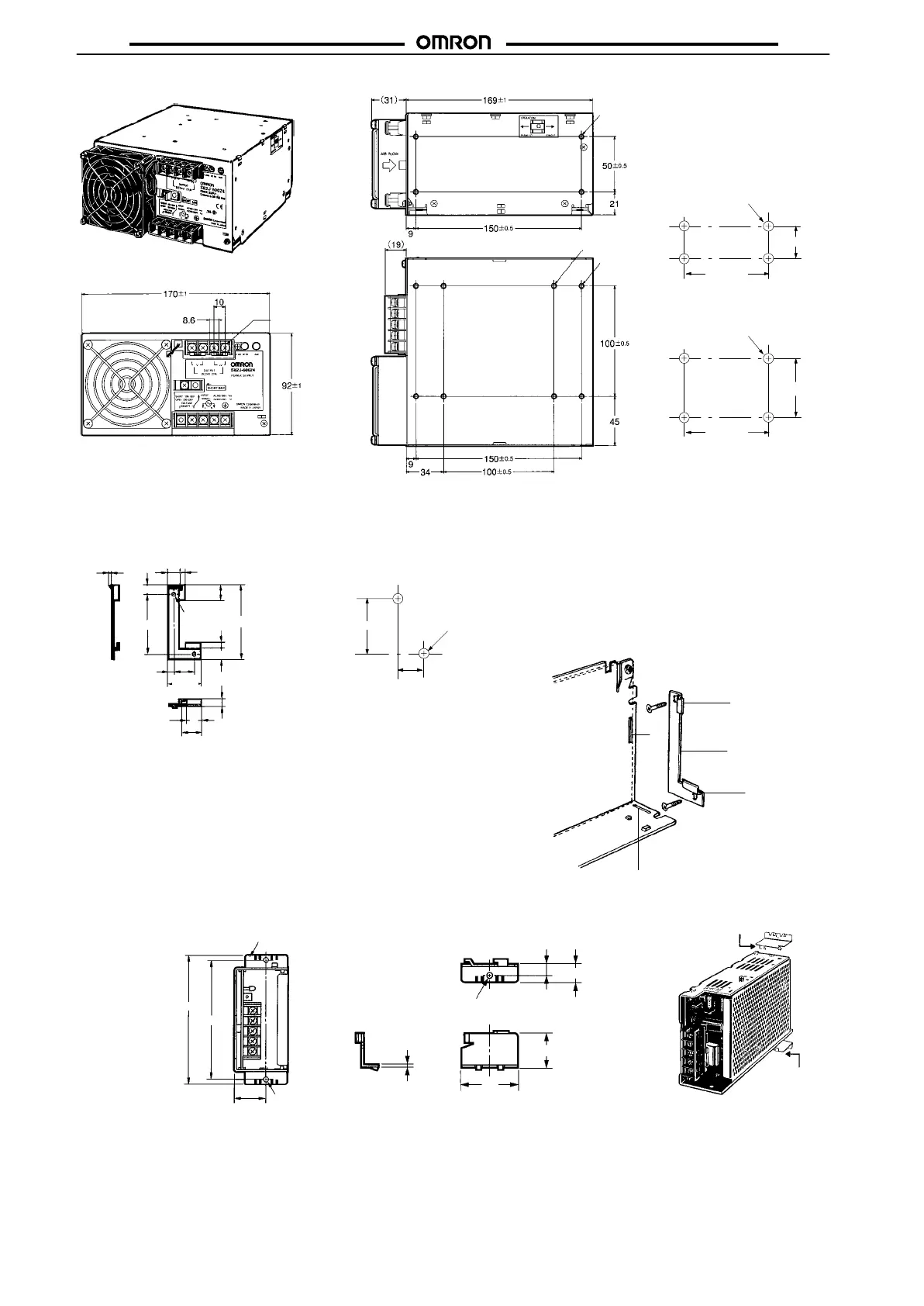

S82J-60024j (600 W)
Four, M4 holes (depth: 8 max. on one side)
Four, M4 holes
(depth: 8 max.)
Eight, M4 holes
(depth: 8 max.
on both sides)
Nine, M4 terminal screws
Mounting Holes
(Surface Screw Mounting)
Side Mounting
Bottom Mounting
150±0.5
50±0.5
Four, 4.5 dia.
150±0.5
100±0.5
Four, 4.5 dia.
Dimensions with Mounting Bracket (Provided)
10-/25-/50-/100 (24 V)-W Models
Mounting Holes Using the Mounting Bracket
Attach the mounting bracket to the panel and
loosely tighten the two screws. Insert the projected
parts of the bracket (b) to the square holes of the
power supply (a). Then securely tighten the
screws.
Note:
The mounting screws are order separately .
1.5
11
9
60
5
20
31.5
15
20.5
4.7
4.6
11
74
15±0.2
Mounting bracket
(b)
(b)
(a)
(a)
Power supply unit
Two, M3
60
20
4.6
Two,
3.5 dia.
t=1.0
Mounting bracket
120 MAX
Two, 5 dia.
30±0.5
110±0.5
100- (5, 12, 15 V) and 150-W Models
Mounting with Brackets
Note: The brackets are for front-mounting.
5 dia.
38
1.5
6.5
11
t=0.8
23.5
