Precautions
Mounting
To
improve and maintain the reliability of the Power Supply over a
long period of time, adequate consideration must be given to heat
radiation.
The
Power Supply is designed to radiate heat by means of natural
air-flow. Therefore, mount the Power Supply so that air flow takes
place
around the Power Supply
.
When mounting the Power Supply, mounting it to a metal plate is
recommended.
When
mounting two or more Power Supplies
side-by-side, allow at
least 20 mm spacing between them, as shown in the following il-
lustration.
Forced
air-cooling is recommended.
Air
Metal plate
20 mm min.

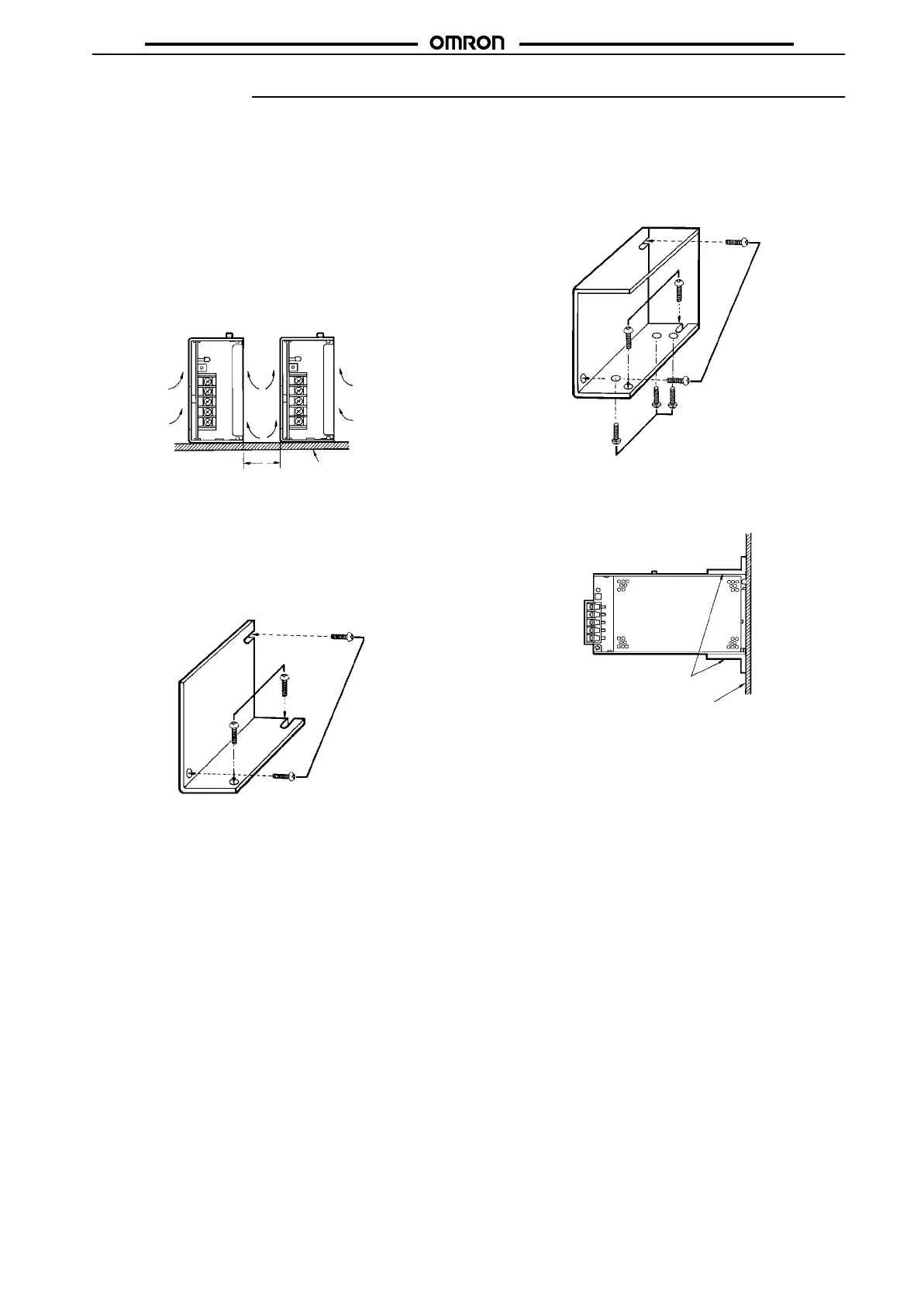

Mounting Methods
The
following mounting methods are available.
10-/25-/50-/100 (24 V)-W Models
(A) Side mounting
(B) Bottom mounting
(C) Front mounting (see
Accessories)
100 (5, 12, 15 V)/150-/300-/600-W Models
(A) Side mounting
(B) Bottom mounting (secured with screws from the inside of the
Switching
Power Supply)
(C) Bottom mounting (secured with screws from the back of the
Switching
Power Supply)
(A)
(B)
(C)
(D) Front mounting
Front mounting is possible with the mounting brackets pro-
vided.
Refer to
Dimensions
.
Mounting brackets
(provided)
Metal plate
