22 Switch Mode Power Supply S8VM

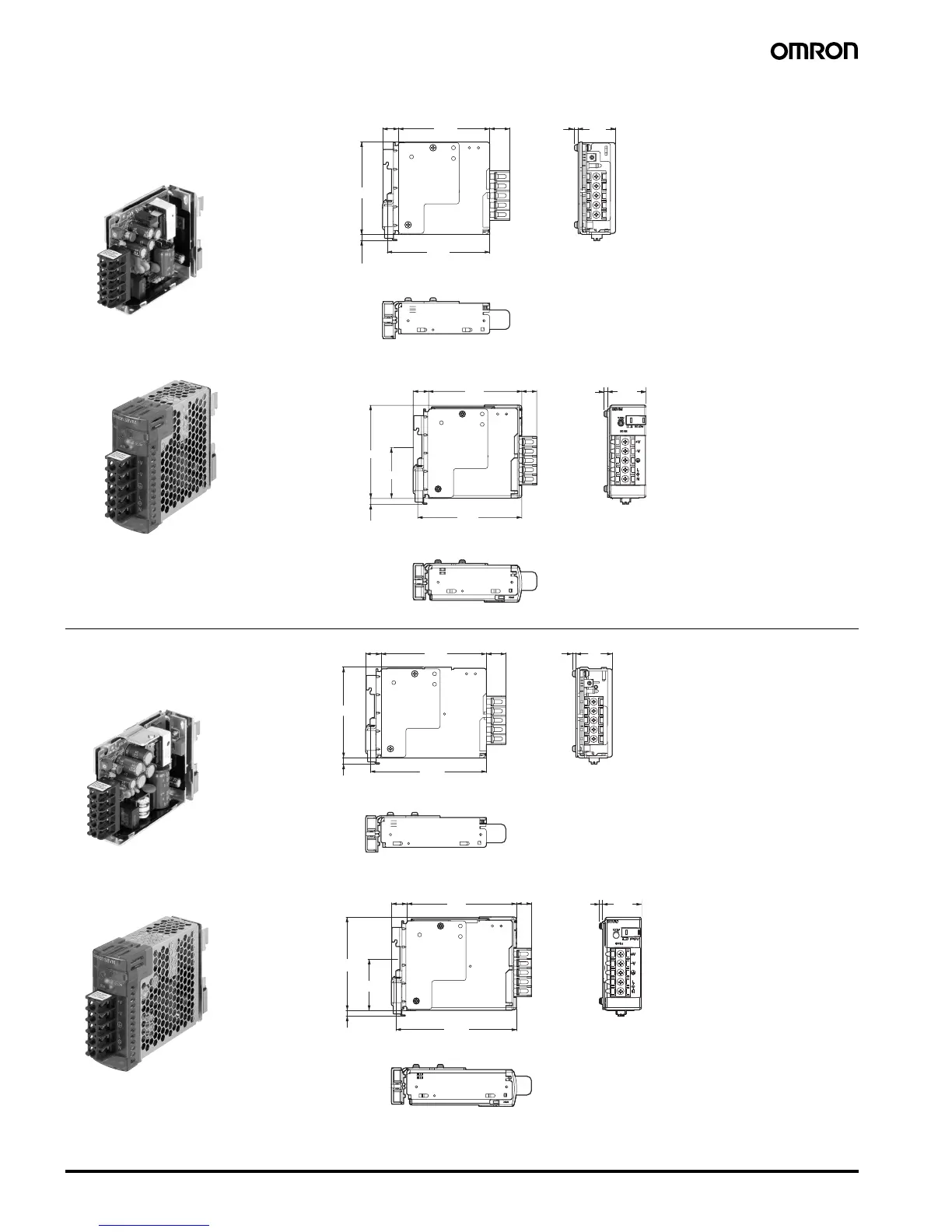

■ DIN Rail Mounting Bracket Models (15-W, 30-W, 50-W, 100-W, 150-W Models)
17.6 max.
3.5 max.
14
5.4 (Sliding: 9 max.)
80.5
81.5
90.4
33
84.5
46.2
84.5
94.4
15 max.
35.1
3.5 max.
14
5.4 (Sliding: 9 max.)
S8VM-015@@D
S8VM-015@@CD
S8VM-01524AD
Note: The image is the S8VM-01524D Model.
Note: The image is the S8VM-01524AD Model.
33
17.6 max.
3.5 max.
14
82
5.4 (Sliding: 9 max.)
105.4
95.5
99.5
15 max.
14
109.4
46.2
84.5
3.5 max.
35.1
5.4 (Sliding: 9 max.)
S8VM-030@@D
S8VM-030@@CD
S8VM-03024AD
Note: The image is the S8VM-03024D Model.
Note: The image is the S8VM-03024AD Model.
