2-25
2-2 External and Mounted Dimensions
2
Standard Models and Dimensions
Backlash = 15’ Max.
For 3,000-r/min Cylindrical Servomotors
Note 1. The standard shaft type is a shaft with key and tap.
Note 2. The diameter of the motor shaft insertion hole is the same as the shaft diameter of the corresponding
Servomotor.
Note 3. Applicable for the servomotors with key, if the key is removed.
Note 4. The dimensional drawings in this document are for showing main dimensions the details of the product
shape.

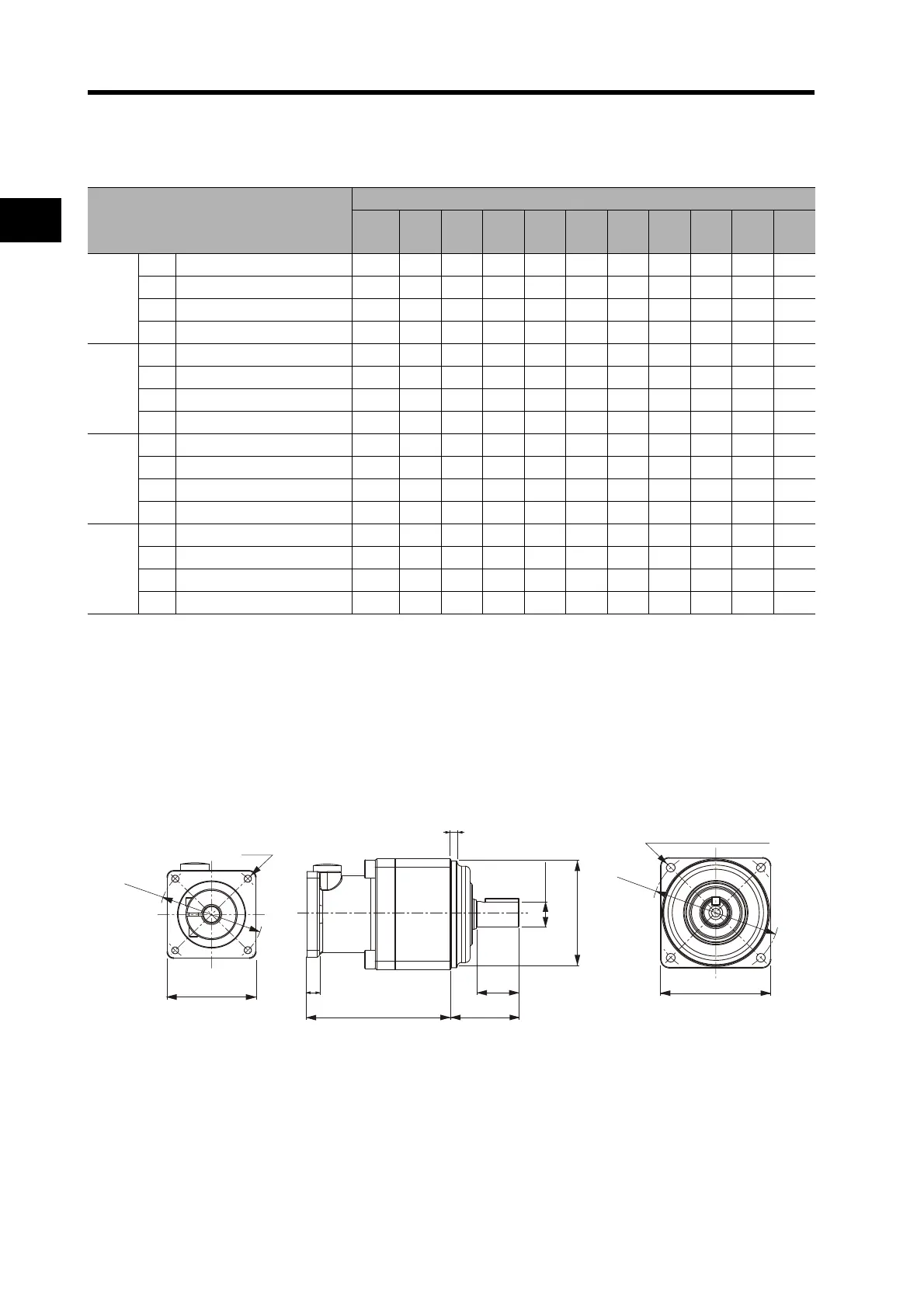

Outline Drawings
Model
Dimensions (mm)
LM LR C1 C2 D1 D2 D3 F G S T
50 W
1/5 R88G-VRXF05B100CJ 67.5 32 40 52 46 60 50 3 6 12 20
1/9 R88G-VRXF09B100CJ 67.5 32 40 52 46 60 50 3 6 12 20
1/15 R88G-VRXF15B100CJ 78.0 32 40 52 46 60 50 3 6 12 20
1/25 R88G-VRXF25B100CJ 78.0 32 40 52 46 60 50 3 6 12 20
100 W
1/5 R88G-VRXF05B100CJ 67.5 32 40 52 46 60 50 3 6 12 20
1/9 R88G-VRXF09B100CJ 67.5 32 40 52 46 60 50 3 6 12 20
1/15 R88G-VRXF15B100CJ 78.0 32 40 52 46 60 50 3 6 12 20
1/25 R88G-VRXF25B100CJ 78.0 32 40 52 46 60 50 3 6 12 20
200 W
1/5 R88G-VRXF05B200CJ 72.5 32 60 52 70 60 50 3 10 12 20
1/9 R88G-VRXF09C200CJ 89.5 50 60 78 70 90 70 3 8 19 30
1/15 R88G-VRXF15C200CJ 100.0 50 60 78 70 90 70 3 8 19 30
1/25 R88G-VRXF25C200CJ 100.0 50 60 78 70 90 70 3 8 19 30
400 W
1/5 R88G-VRXF05C400CJ 89.5 50 60 78 70 90 70 3 8 19 30
1/9 R88G-VRXF09C400CJ 89.5 50 60 78 70 90 70 3 8 19 30
1/15 R88G-VRXF15C400CJ 100.0 50 60 78 70 90 70 3 8 19 30
1/25 R88G-VRXF25C400CJ 100.0 50 60 78 70 90 70 3 8 19 30
D3h7 dia.
Sh6 dia.
4-Z2 (Available depth L)
D2 dia.
F
TG
LRLM
C2×C2
D1 dia.
4-Z1
C1×C1
