Omron STC-HD213DV - Dimensions for DV-CS;DVN-CS Models

No. 20S071-01
STC-HD213DV / STC-HD213DV-CS / STC-HD213SDI / STC-HD213SDI-CS /
STC-HD213DVN / STC-HD213DVN-CS / STC-HD213SDIN / STC-HD213SDIN-CS
Product Specifications and User
’
s Guide
16/94

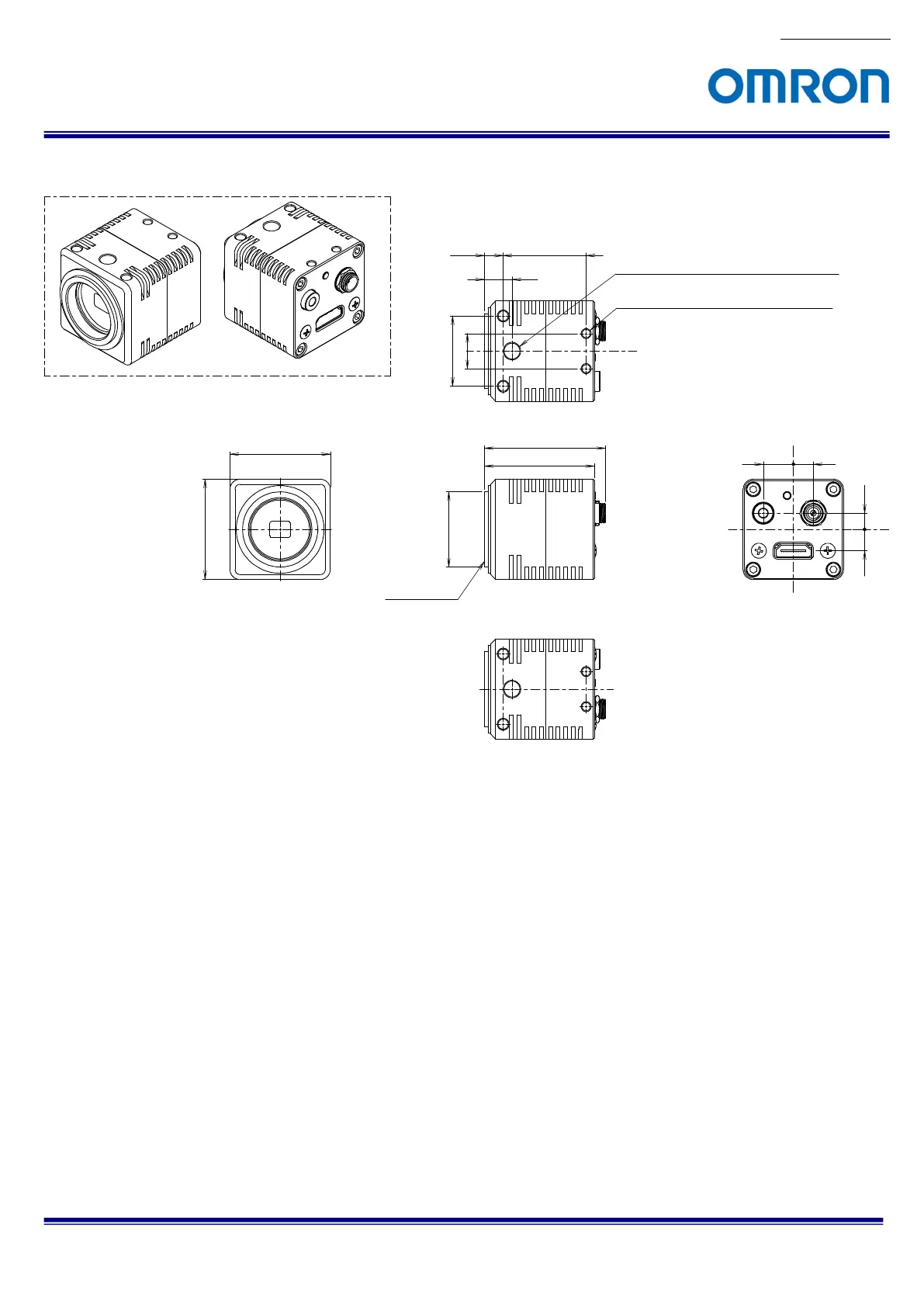

5.2 STC-HD213DV-CS / STC-HD213DVN-CS
(48.36)
43.9
φ
30
1”-32UNF
CS mount
40
40
12
6.5
8
8.5
28 14
33.17.5
11
Tripod depth5 (Top and bottom)
4-M4 depth5 (Top and bottom)
(T
op and bottom are same design)
unit: mm
