DSP: Other
The settings for “Resolution and frame rate”, flip image and “Color / Monochrome” are changeable.
These can be change individual DSP User Preset.

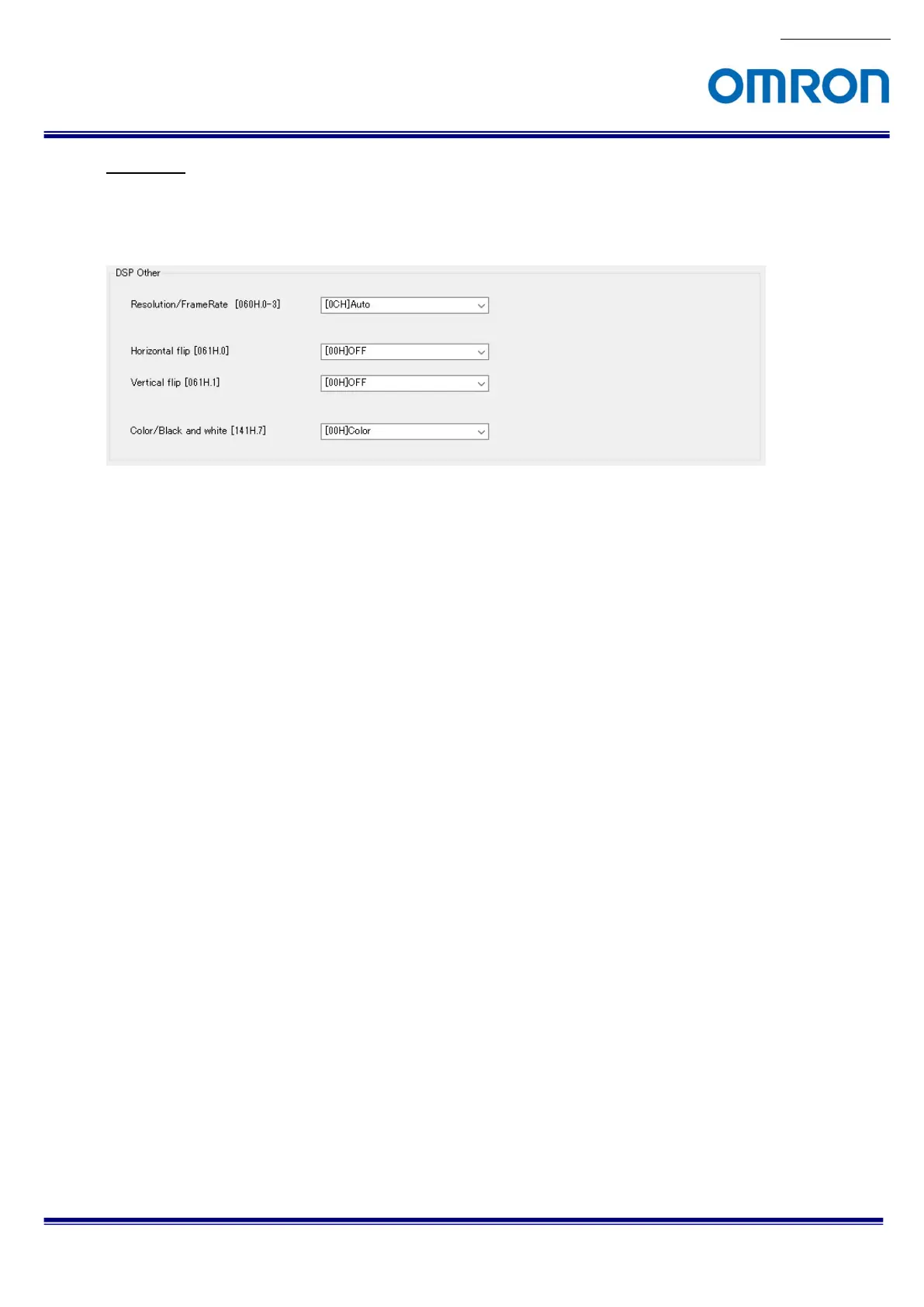

DSP Other
1) Resolution/FrameRate
Selects the video output format from “1080p 60fps”, “1080p 59.94fps”, “1080p 50fps”, “1080p 30fps”,
“1080p 29.97fps”, “1080i 60fps”, “1080i 59.94fps”, “1080i 50fps”, “720p 60fps”, “720p 59.94fps” and
“720p 50fps”.
* “Auto” is only available for DVI output models.
When selecting “Auto”, camera checks supported resolution and frequency of monitor then camera switches to
monitor supported maximum resolution and frequency automatically.
2) Horizontal flip
Selects “OFF” or “ON” for horizontal flip video output.
When selecting “OFF”, standard video is output from camera.
When selecting “ON”, horizontal flipped video is output from camera.
3) Vertical flip
Selects “OFF” or “ON” for vertical flip video output.
When selecting “OFF”, standard video is output from camera.
When selecting “ON”, vertical flipped video is output from camera.
4) Colro/Black and white
Selects the video output from “Color” and “Black and white”.
When selecting “Color”, color video is output from camera.
When selecting “Black and white”, monochrome video is output from camera.
