Omron STC-HD213DV - Page 56

No. 20S071-01
STC-HD213DV / STC-HD213DV-CS / STC-HD213SDI / STC-HD213SDI-CS /
STC-HD213DVN / STC-HD213DVN-CS / STC-HD213SDIN / STC-HD213SDIN-CS
Product Specifications and User
’
s Guide
56/94

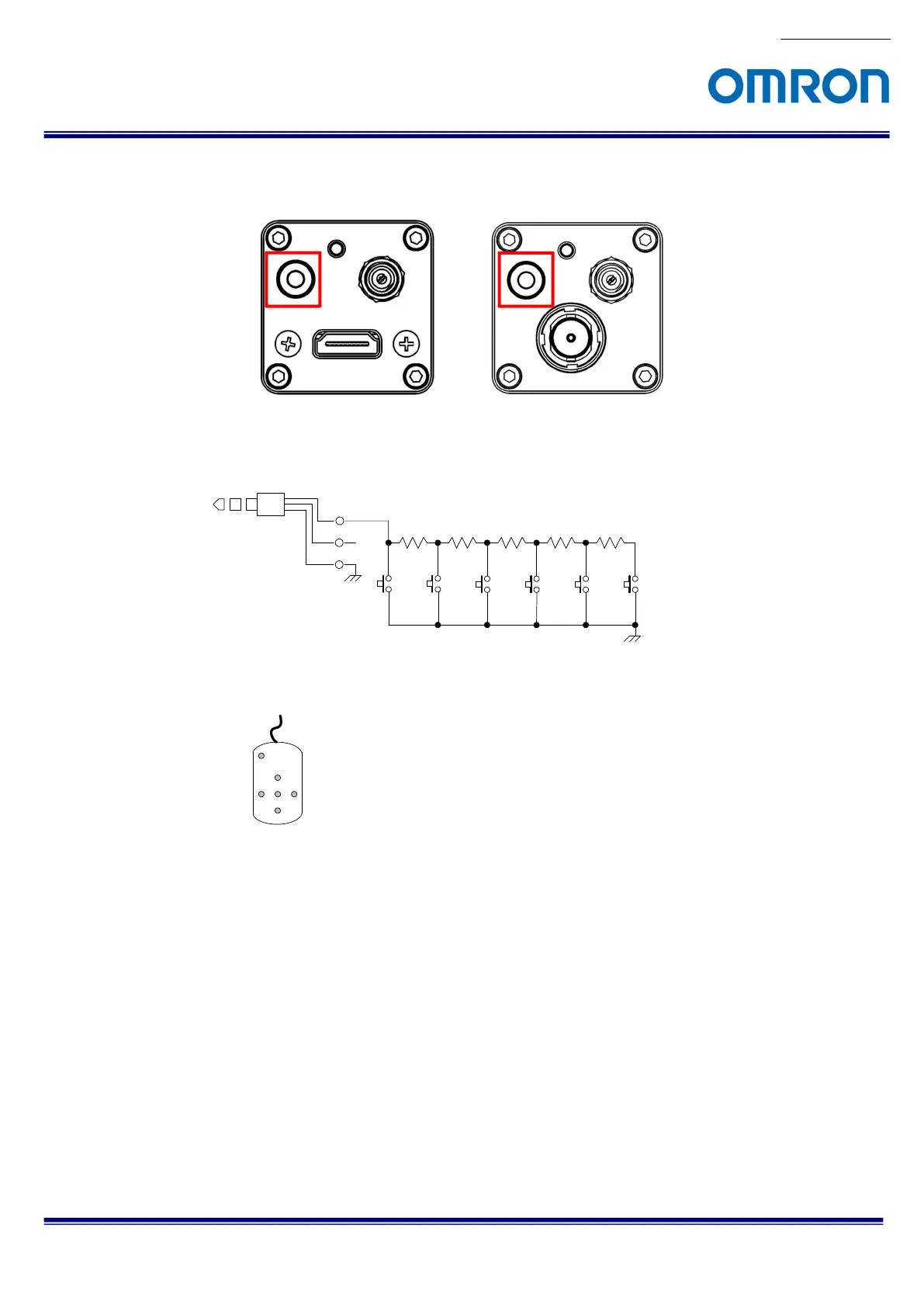

9) External switch
Switch Circuit Diagram,
Example
Tip
GND
SW-A SW-B SW-C SW-D SW-E SW-F
1 2 1 2
1 2
1 2 1 2 1 2
R1
1.8K
R2
3.3K
R3
4.7K
R4
10K
R5
27K
SW-A
SW-B
SW-D
SW-C SW-E
SW-F
