Omron SYSDRIVE 3G3FV CE Series - Page 16

2-5
H 3G3FV-B4550-CE/-B4750-CE
3G3HV-B4550-CE/-B4750-CE

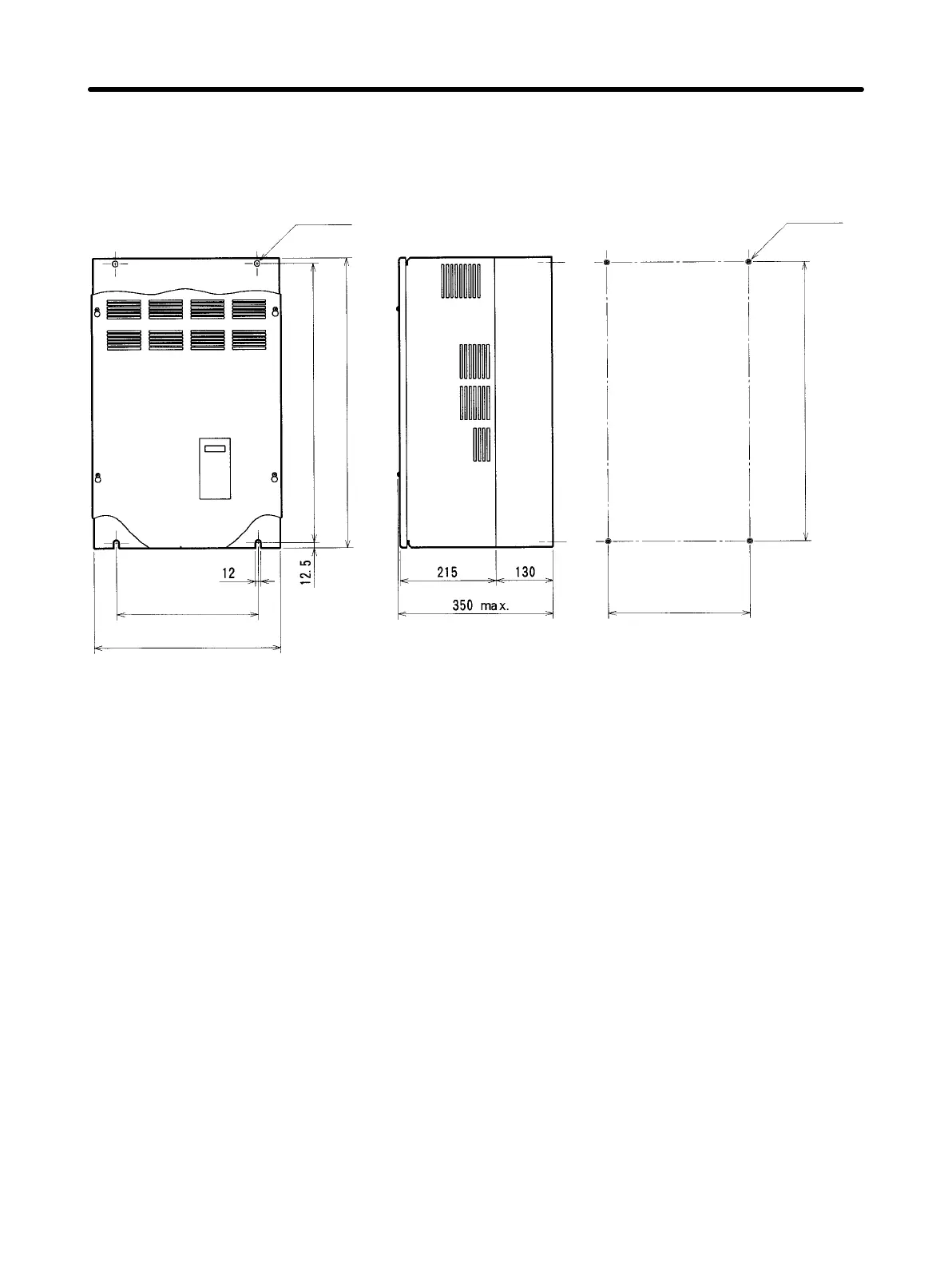

D External Dimensions D Mounting Dimensions
Two, 12 dia.
Four, M10
350
455
350
795 820 795
Installation Chapter 2
