Omron SYSMAC CJ1W-EIP21 User Manual

128
Setting Tag Data Links Section 6-2

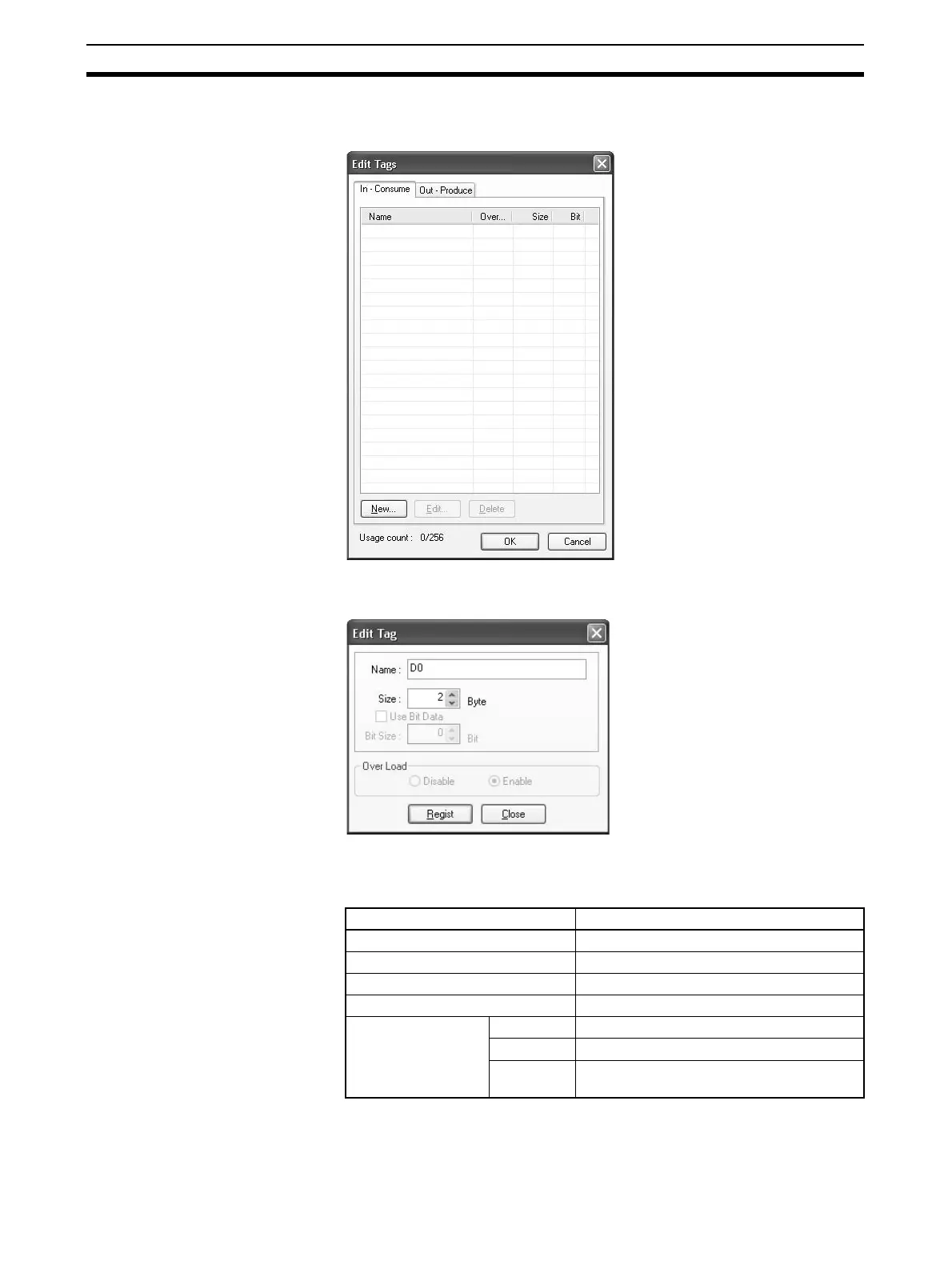

Creating and Adding Tags 3. Click the Edit Tags Button. The Edit Tags Dialog Box will be displayed.
Register the input (consume) tags and output (produce) tags separately.
4. Click the In - Consume Tab, and click the New Button. The Edit Tag Dialog
Box will be displayed.
5. In the Name Field, enter the character string for the CPU Unit's I/O memory
address or a network symbol (e.g., 100, W100, D0, Input_signal).
Addresses in the following I/O memory areas can be set.
Note (a) The H, W, D, and E characters can also be input in lower case as
h, w, d, and e.
CPU Unit’s data area Address (Text to input in Name Field.)
CIO Area 0000 to 6143
Holding Area H000 to H511
Work Area W000 to W511
DM Area D00000 to D32767
EM Area Bank 0 hex E0_00000 to E0_32767
··· ···
Bank 18
hex
E18_00000 to E18_32767
