Setting Tag Data Links Section 6-2

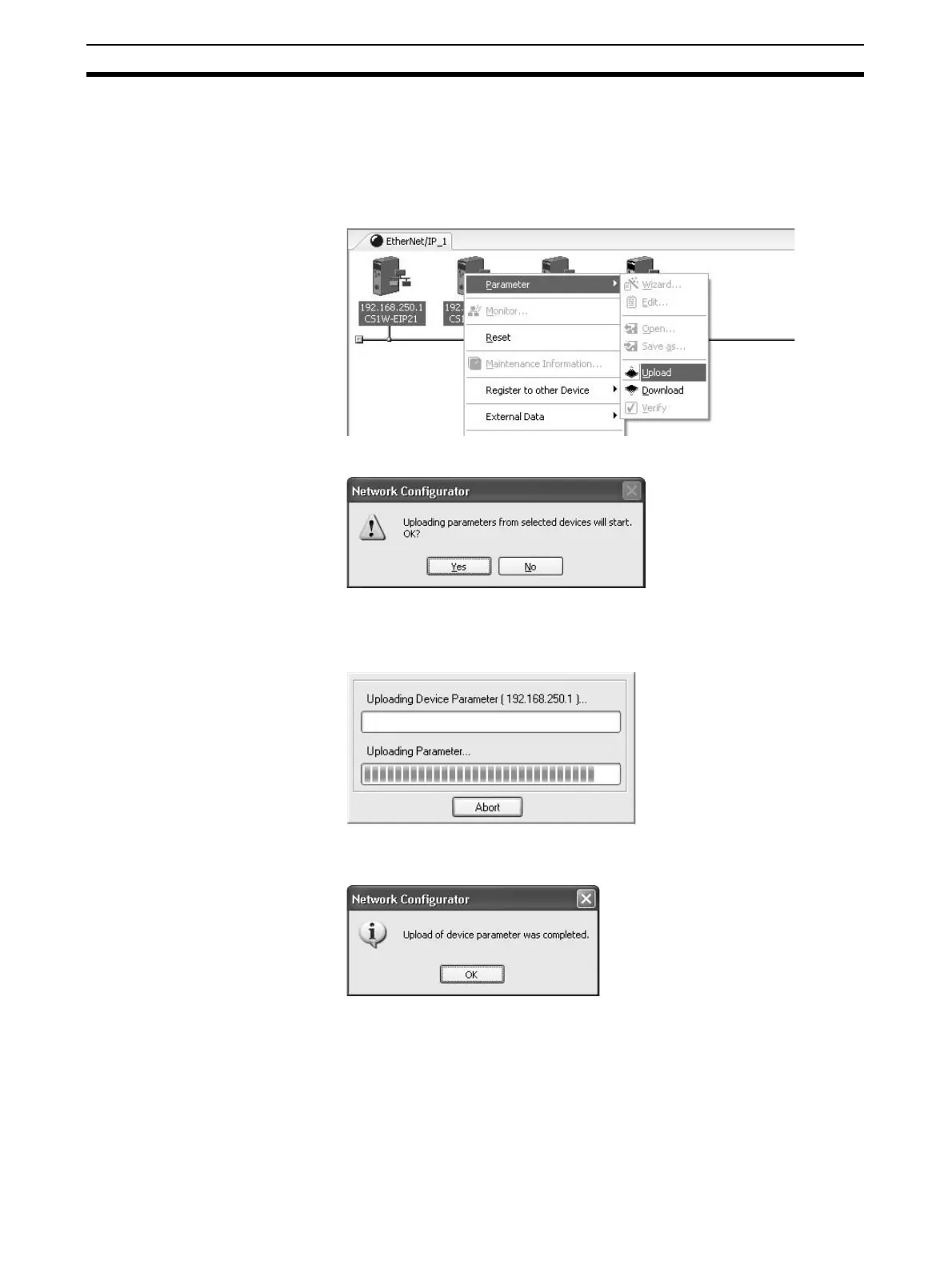

Select the icon of the EtherNet/IP Unit from which you want to upload. To
select multiple nodes, press and hold the Shift Key while selecting addi-
tional icons. (In the following example, 2 nodes are selected:
192.168.250.1 and 192.168.250.2.)
After selecting the icons, click the right mouse button over the icon to dis-
play the pop-up menu, and select Parameter - Upload.
The following confirmation dialog box will be displayed.
Click the Yes Button or No Button.
During the upload, the following progress monitor will be displayed to show
the progress of the upload.
3. The following dialog box will be displayed, indicating that the upload was
completed.
6-2-12 Verifying the Tag Data Links
Tag data link parameters (such as the tag set settings and connection set-
tings) can be compared with the EtherNet/IP Units in the EtherNet/IP network.
The following procedure shows how to compare the parameters. For details
on connecting to the network from the Network Configurator, refer to 6-2-9
Connecting the Network Configurator to the Network.
To Next Page
