EtherNet/IP Unit and Built-in EtherNet/IP Port Specifications Section 2-1

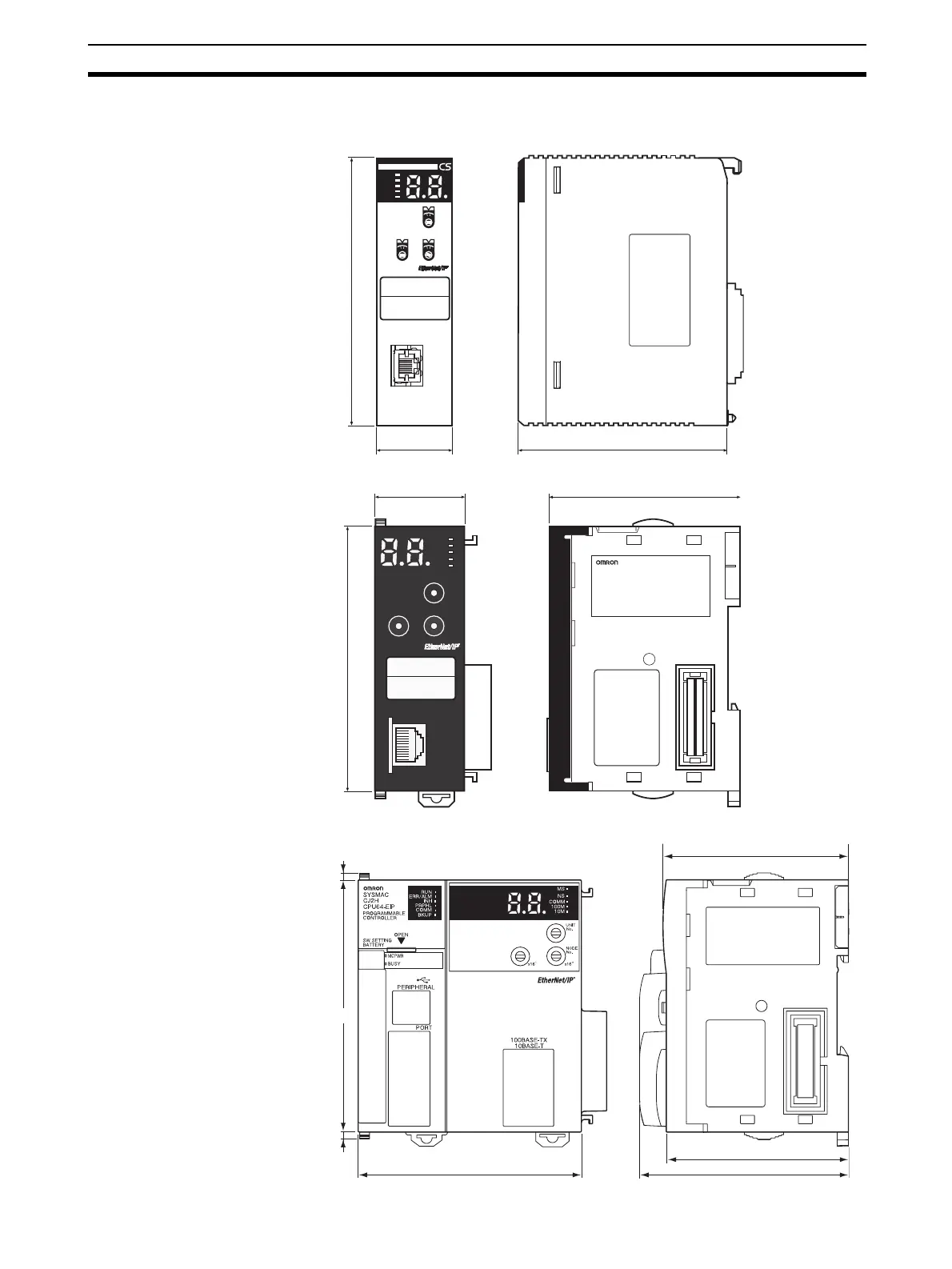

2-1-4 Dimensions
CS1W-EIP21
CJ1W-EIP21
CJ2H-CPU@@-EIP
101 mm35 mm
130 mm
NODE
NO.
1
×16
0
0
×16
1
UNIT
NO.
100BASE-TX
10BASE-T
0
EIP21
MS
NS
COMM
100M
10M
IP ADDRESS
SUBNET MASK
192.168.250.1
255.255.255.0
65 mm
31 mm
UNIT
No.
EIP21
90 mm
NODE
No.
x16
0
x16
1
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
MS
NS
100M
10M
COMM
100BASE-TX
10BASE-T
IP ADDRESS
SUBNET MASK
192.168.250.1
255.255.255.0
90 mm
2.7 mm
2.7 mm
79.8 mm
66.2 mm
65 mm
74.5 mm

Omron SYSMAC CJ1W-EIP21 Specifications

General

Brand	Omron
Model	SYSMAC CJ1W-EIP21
Category	Network Hardware
Language	English
