Setting Tag Data Links Section 6-2

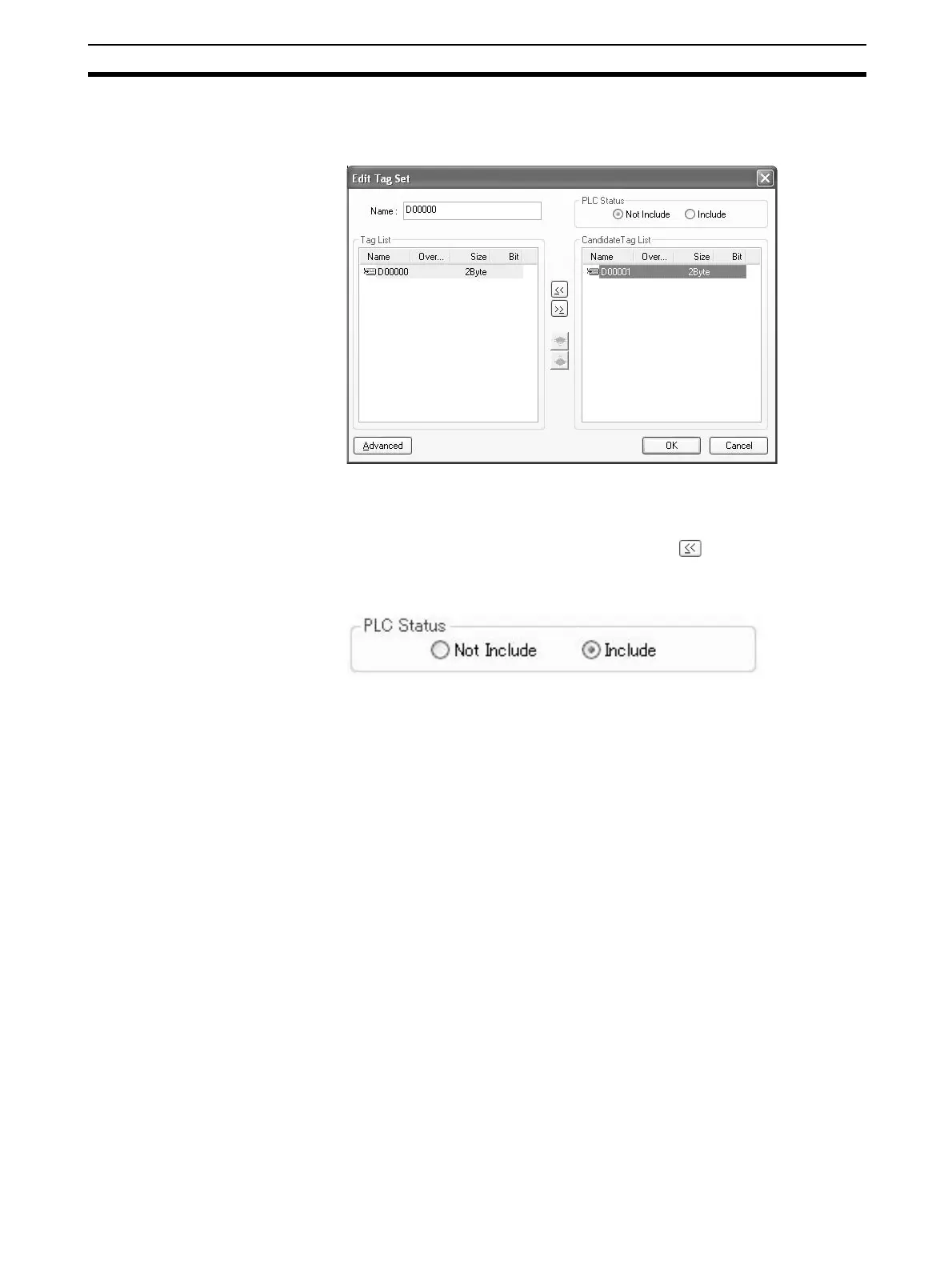

13. In order to edit a registered tag set and add tags, either double-click the tag
set, or select the tag set and click the Edit Button. The Edit Tag Set Dialog
Box will be displayed.
The Tag List on the left side of the dialog box shows the tags that are al-
ready registered, and the Candidate Tag List on the right side of the dialog
box shows the other tags that have not been registered yet. To add a tag,
select it in the Candidate Tag List and click the Button.
14. When the PLC status is being included in the tag set, select the Include
Option at the upper-right corner of the dialog box.
15. If you want to change the tag set’s name, it can be changed in this dialog
box.
16. To save the changes, click the OK Button at the bottom of the Edit Tag Set
Dialog Box.
17. Click the OK Button at the bottom of the Edit Device Parameters Dialog
Box.
To Next Page
