138
Setting Tag Data Links Section 6-2
To place more than one input symbol (input tag) imported from the CX-
Programmer into one tag set, you must delete the input tags that were reg-
istered to separate input tag sets.

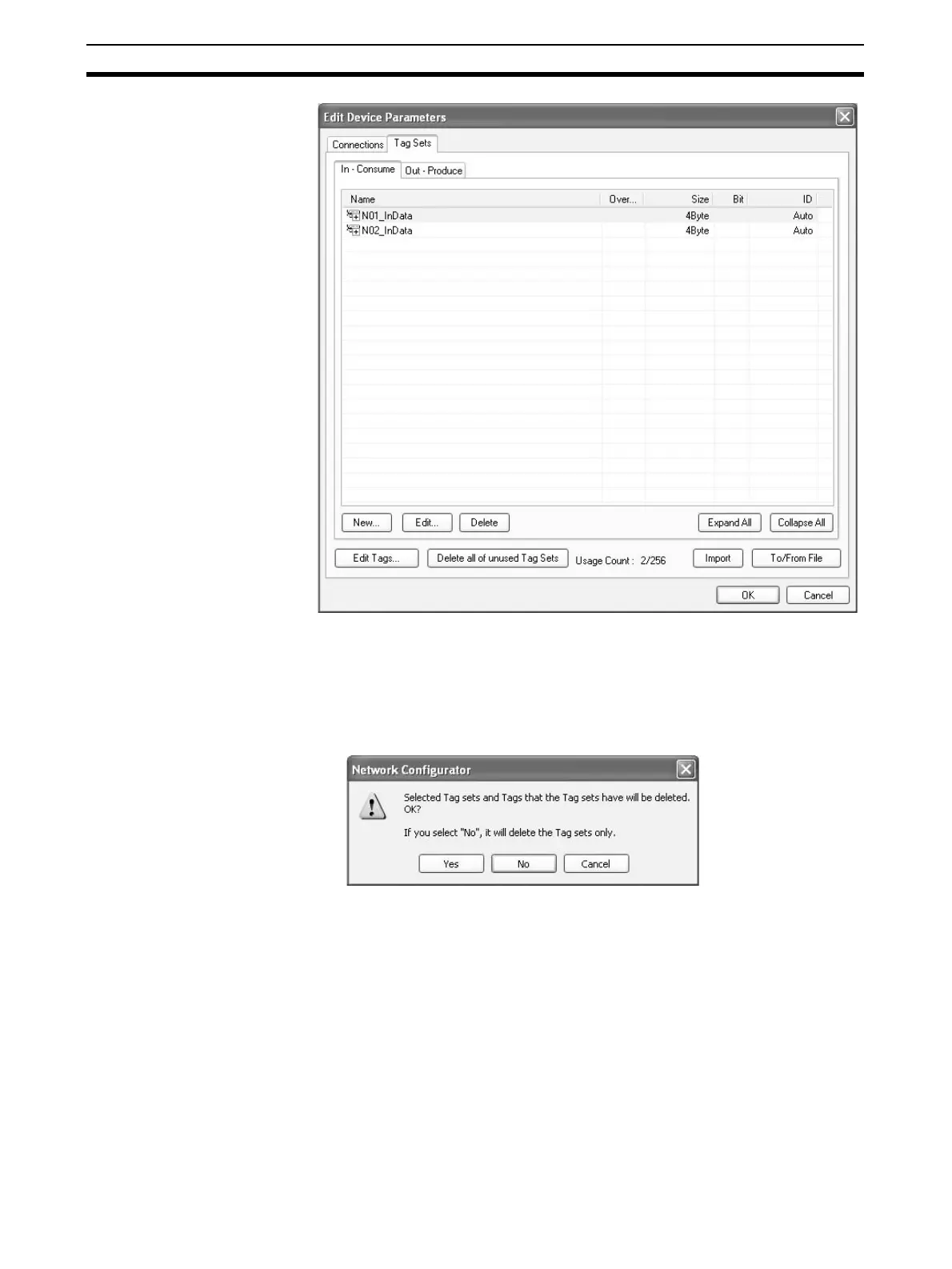

Select the tag sets for the symbols that are included in the one tag set and
click the Delete Button. A confirmation message will be displayed. Click
the No Button to delete only the tag sets.
To create a new tag set for more than one tag, click the New Button. To
place more than one tag in an existing tag set, double-click the tab set, or
select it and click the Edit Button.
The Edit Tag Set Dialog Box will be displayed. Imported tags that are not
registered in another tag set will be displayed in the Candidate Tag List
Area on the right. Click the Right Arrow Button to add tags individually.
