Using FINS Applications Section 8-5

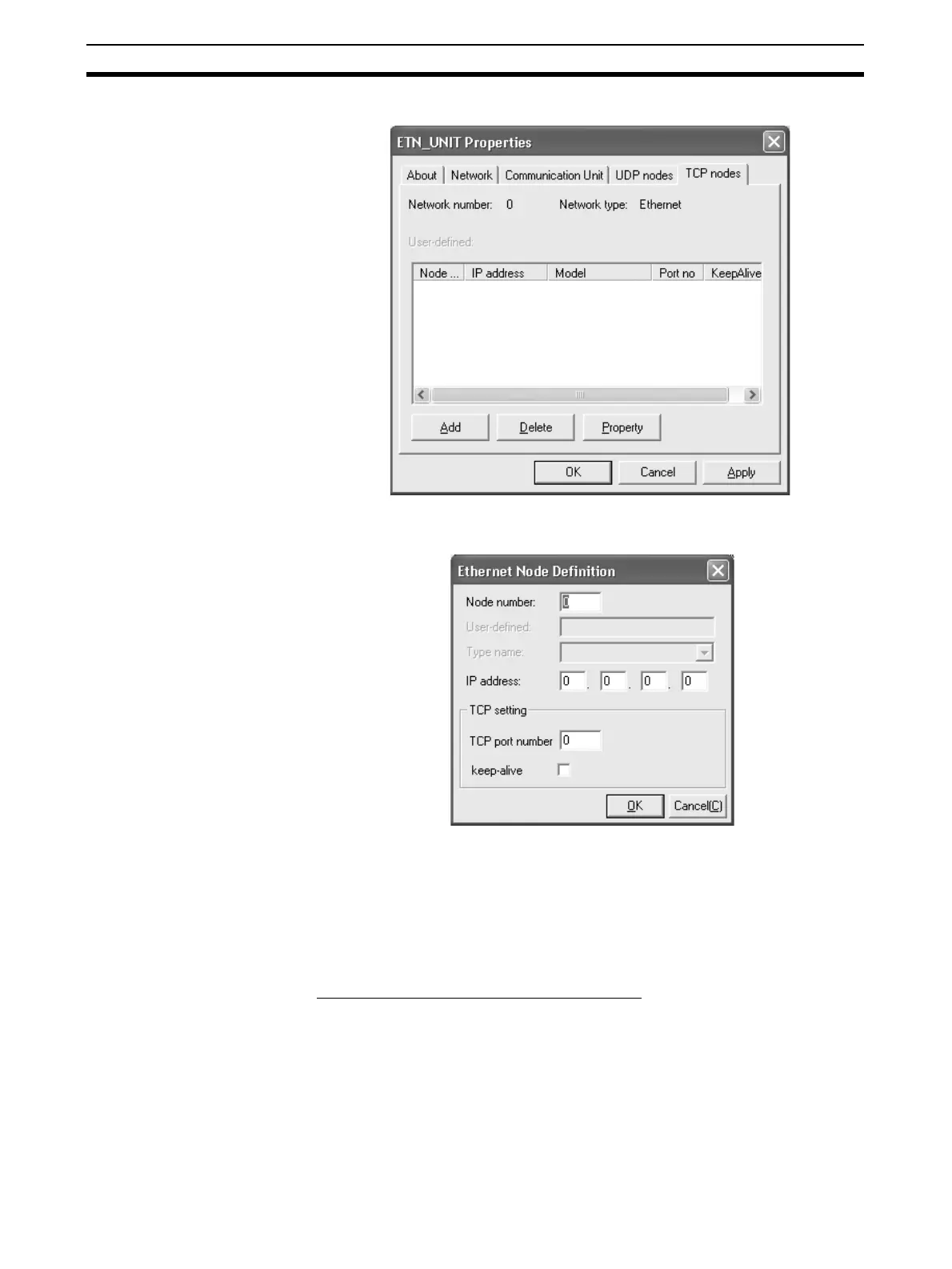

• TCP Nodes Tab Page
Click the Add Button, and then set the IP address table in the following Ether-
net Node Definition Dialog Box.
3. Starting FinsGateway ETN_UNIT Service
Select ETN_UNIT from Services under the Basic Tab in the FinsGateway
Setup Window, and then click the Start Button.
• Node address: Set the remote FINS node address.
• IP address: Set the remote IP address.
• Destination port number: Set the FINS/TCP port number for the remote node.
Normally the PLC's default setting of 9600 should be
specified.
• Keep-alive setting: Sets the keep-alive function. Normally this should be
selected.
