Omron SYSMAC CJ1W-EIP21 User Manual

59
Tag Data Link Parameters Section 3-9

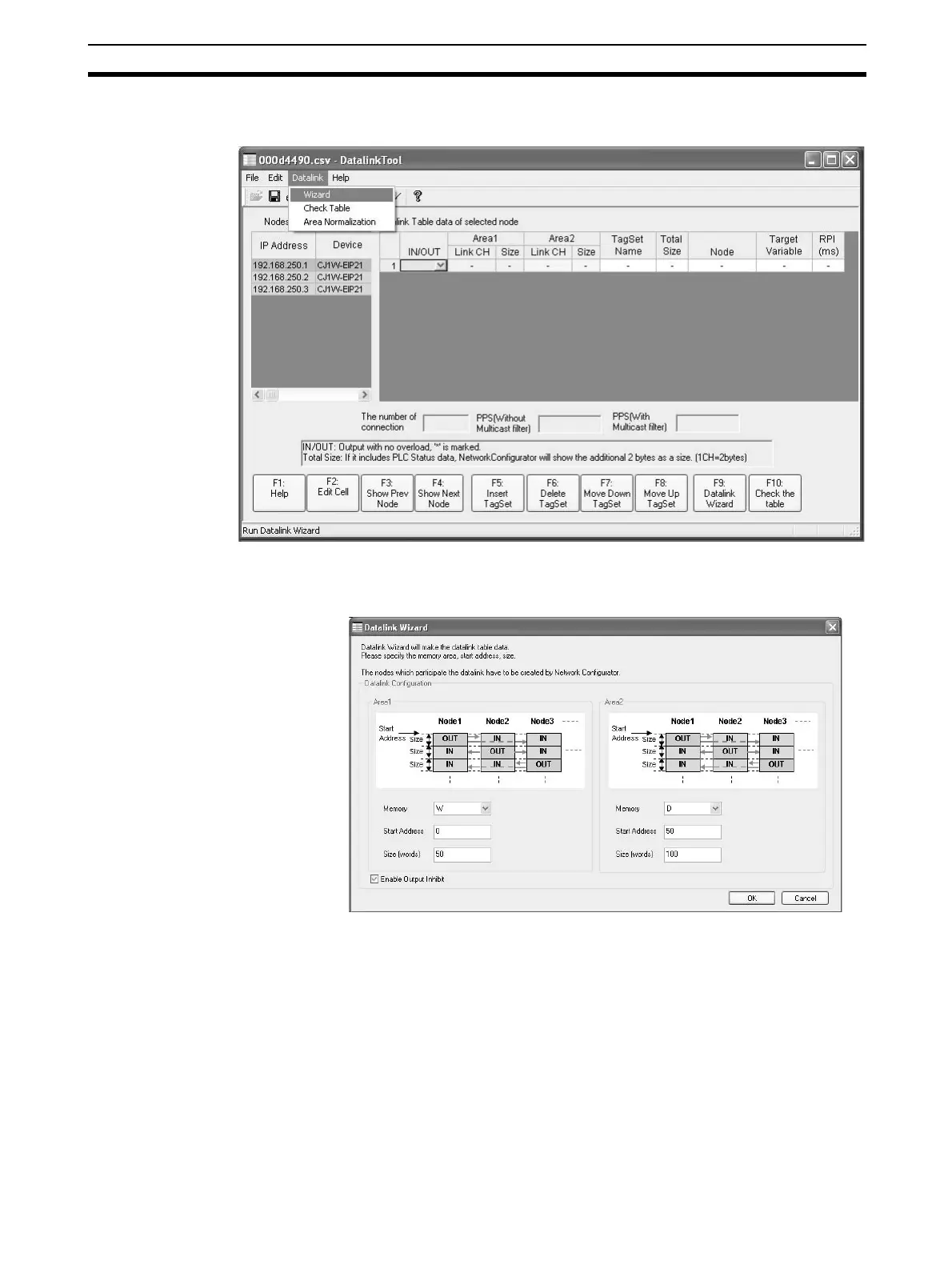

3. Select Datalink − Wizard from the menus in the Datalink Tool when it has
started.
4. In the Datalink Wizard Dialog Box, enter 50 words starting from memory
address W000 for area 1 and 100 words starting from D00050 for area 2,
and then press the OK Button.
5. The data link settings will be automatically created in the window of the
EtherNet/IP Datalink Tool. Select File
− Save to end. The settings will be
saved in the Network Configurator.
