3-2

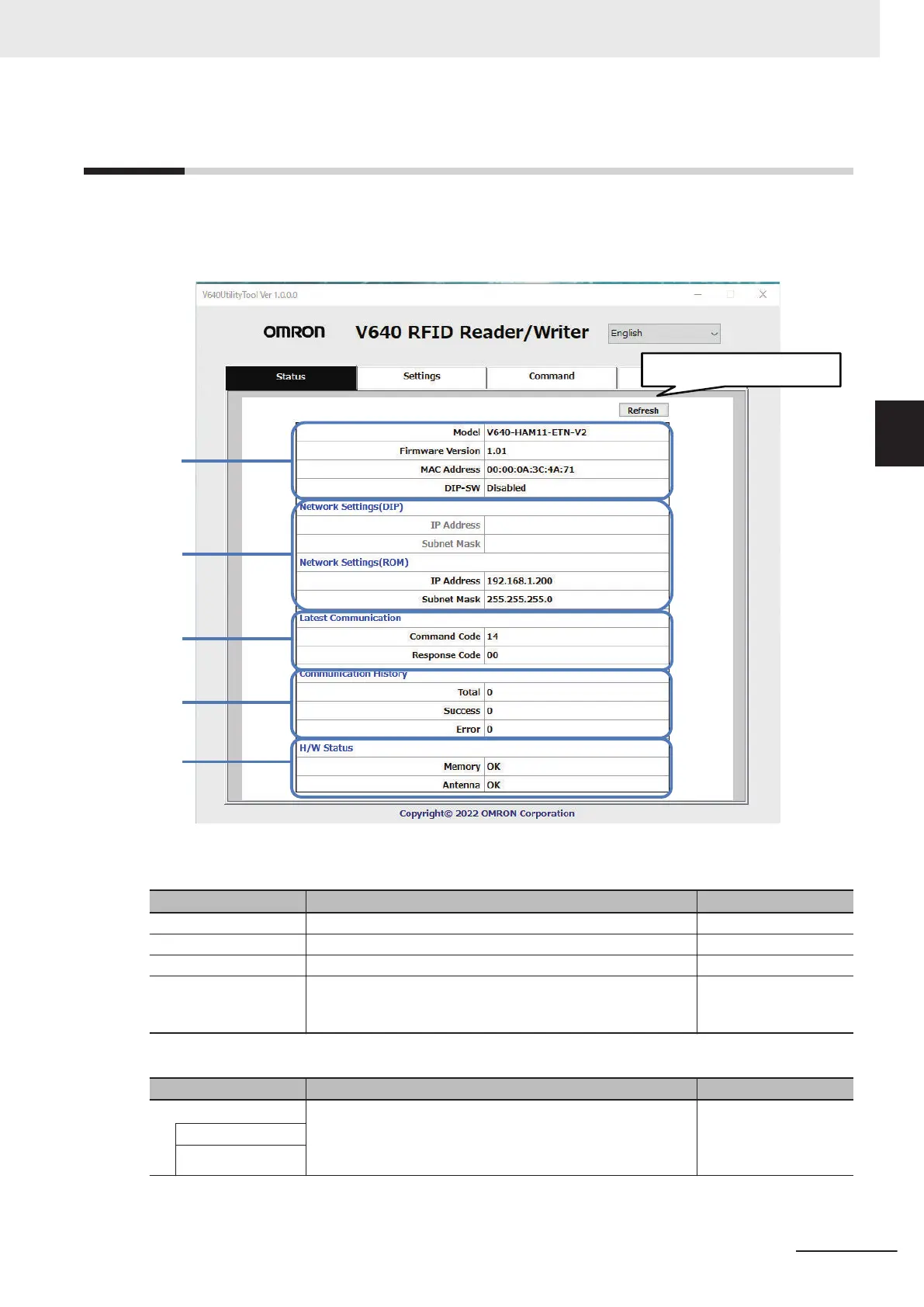

Status Window
The Status Window displays the model number, firmware version, MAC address, and other informa-
tion on the Amplifier Unit so that you can check it. Click the Refresh Button at the top of the window to
update the displayed information (latest communication, communication history, and H/W status).
Refresh Button
(1)
(2)
(3)
(4)
(5)
(1) Amplifier Unit Information
Item Description Comments
Model The product model number is displayed.
Firmware Version The firmware version is displayed.
MAC Address The MAC address is displayed.
DIP-SW Enabled
is displayed if the Amplifier Unit is set to use the IP address
that is
set on the DIP switch. Disabled is displayed if the Amplifier
Unit is set to use the IP address that is set in ROM.
(2) Network Setting Information
Item Description Comments
Network Settings(DIP) If the Amplifier Unit is set to use the IP address that is set on the DIP
switch, this item is displayed in blue, and the IP address and
subnet mask of the Amplifier Unit are displayed.
If the Amplifier Unit is set
to use the IP address that
is set on the DIP switch,
this item is grayed out.
IP Address
Subnet Mask
3 V640 Utility Tool Features
3-3
V640 SERIES CIDRW SYSTEM OPERATION MANUAL V640 Utility Tool (Z469-E1)
3-2 Status Window
3
