Omron ZEN Quick Guide

4 Connections ZEN Programmable Logic Module
OMRON ELECTRONICS, S.A. Page 13

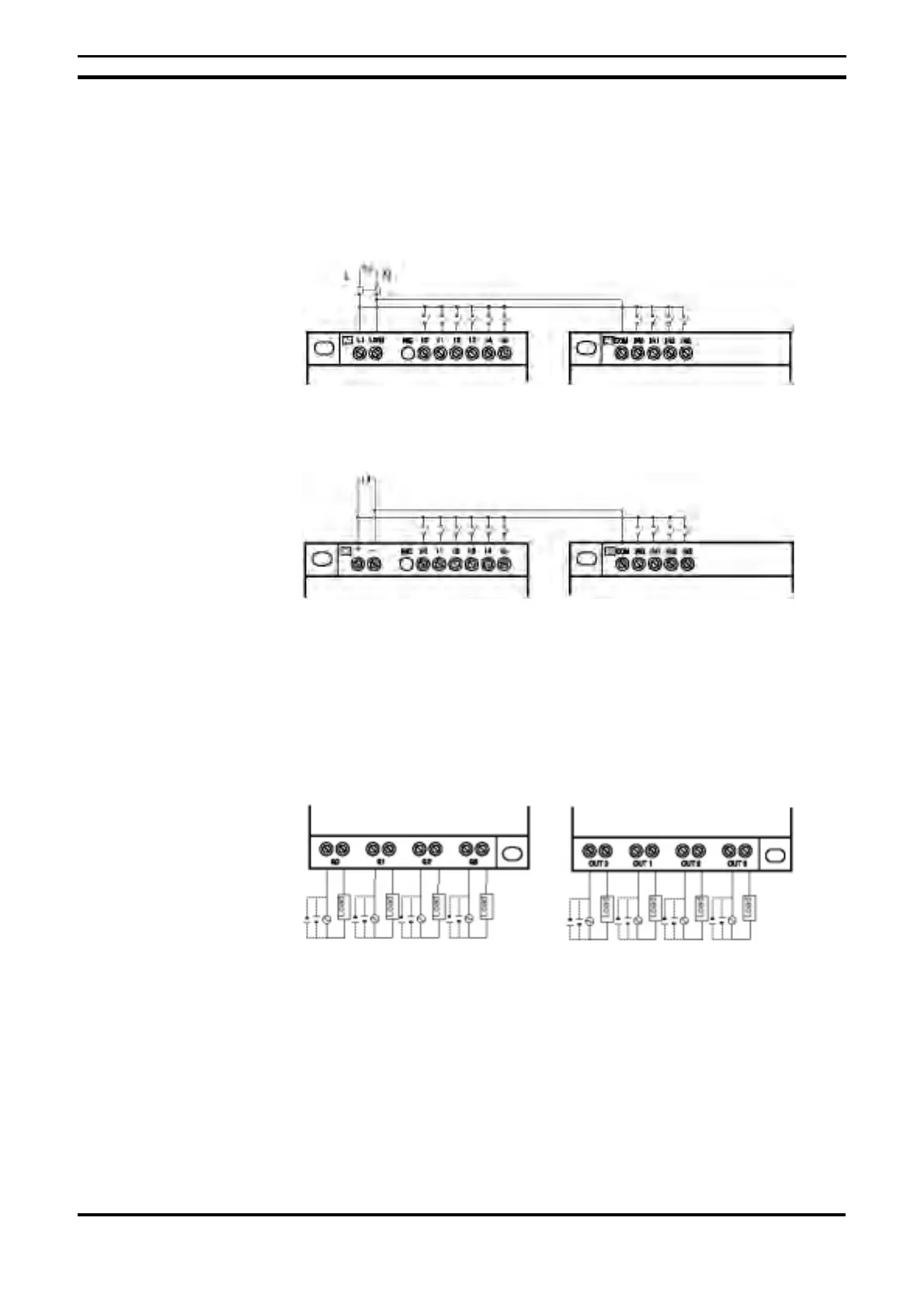

4 Connections
4.1 Input Stage
• Using AC power supply
• Using DC power supply
Note. Inputs 14 and 15 can also be used as analog inputs with an input range
of 0 to 10 V.
4.2 Output Stage
Note. The 4 outputs are completely independent and have no restrictions on
polarity.
I/O expansion unitCPU
I/O expansion unit
(AC inputs)
CPU
Input devices
I/O expansion unit
(DC inputs)
CPU
Input devices
250 VAC, 8A
24 VDC, 5A
ON ƒ 16V
OFF 5V
ON ƒ 80V
OFF 25V

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
