Omron ZEN Quick Guide

7 Programming Functions ZEN Programmable Logic Module
OMRON ELECTRONICS, S.A. Page 23

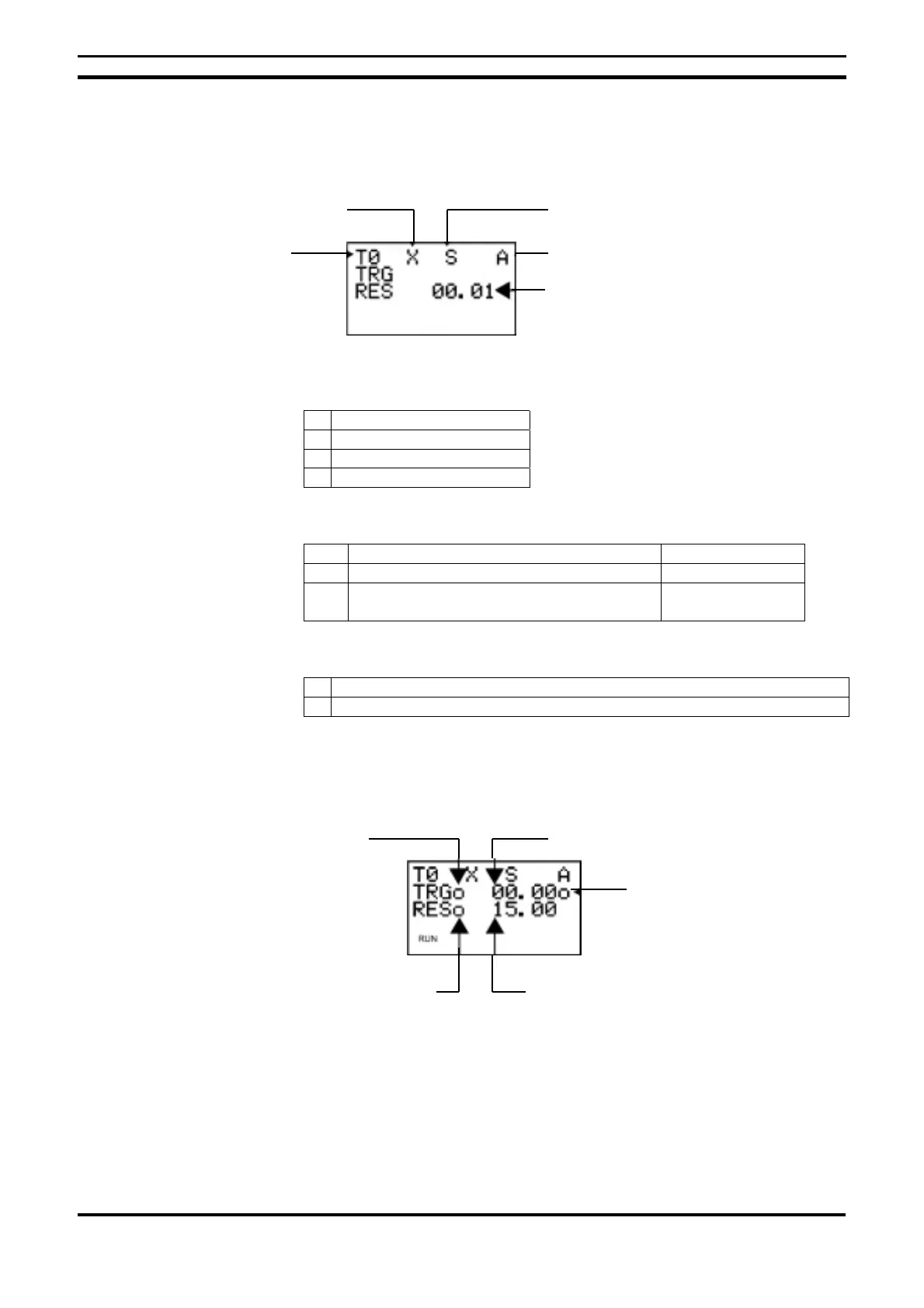

7.1.2. Settings in the Parameters Settings Screen
Timer types
X ON delay
n OFF delay
O One-shot pulse
F Flashing pulse
Time units and settings
S 00.01 to 99.99 s (in 0.01 s units) Error: 0 to 10 ms
M:S 00 min 01 s to 99 min 59 s Error: 0 to 1 s
H:M 00 h 01 m to 99 h 59 m (in hours and
minutes)
Error: 0 to 1min
Monitoring enabled/disabled
A Parameters can be monitored and settings changed
D Parameters cannot be monitored nor can settings be changed
7.1.3. Parameter Monitoring on ‘Screen Display’
7.2. Using Counters (C)
Up to 8 counters can be used in incremental or decremental mode. The
present or current value (PV) of each counter and the status of the bits of each
counter (ON/OFF) are maintained even when the operation mode changes or
when there is no power supply.
Time unit (s)
Monitoring enable/disable
Timer type
Timer parameters
Reset input status
(
m:OFF / l:ON
)
Trigger input status
(
m:OFF / l:ON
)
Timer present value
Set value
Timer address
Bit timer status
(m:OFF / l:ON)

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
