Dimensions Section 6-2
157

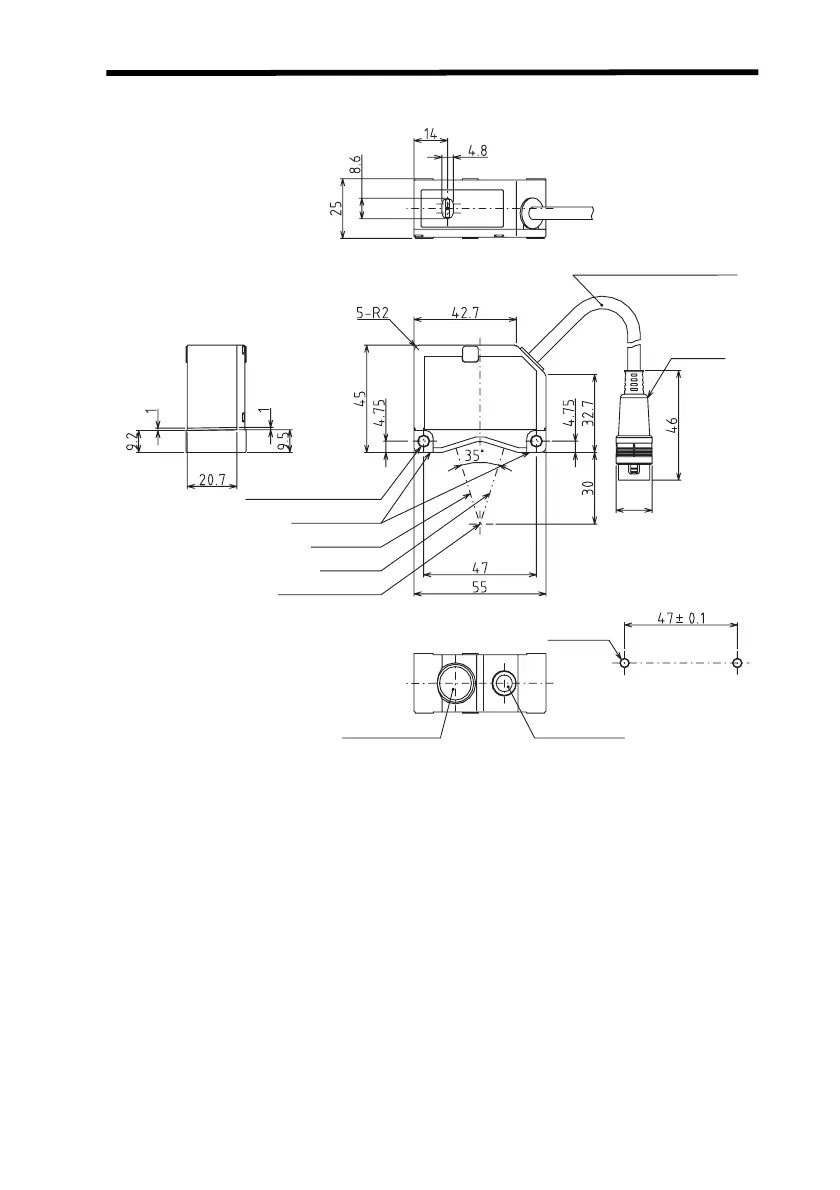

 ZX-LD30V /ZX-LD30VL
Vinyl-insulated round cable,
5.1 dia., standard length: 0.5 m
Connector
Two, 4.5-dia. mounting holes
Reference plain
Receiver axis
Emitter axis
Measurement center
Lens (16 dia.)
Lens (10 dia.)
Mounting Holes
15 dia.
Two, M4 holes
(Unit: mm)
