Omron ZX2 - Page 2

2
ZX2

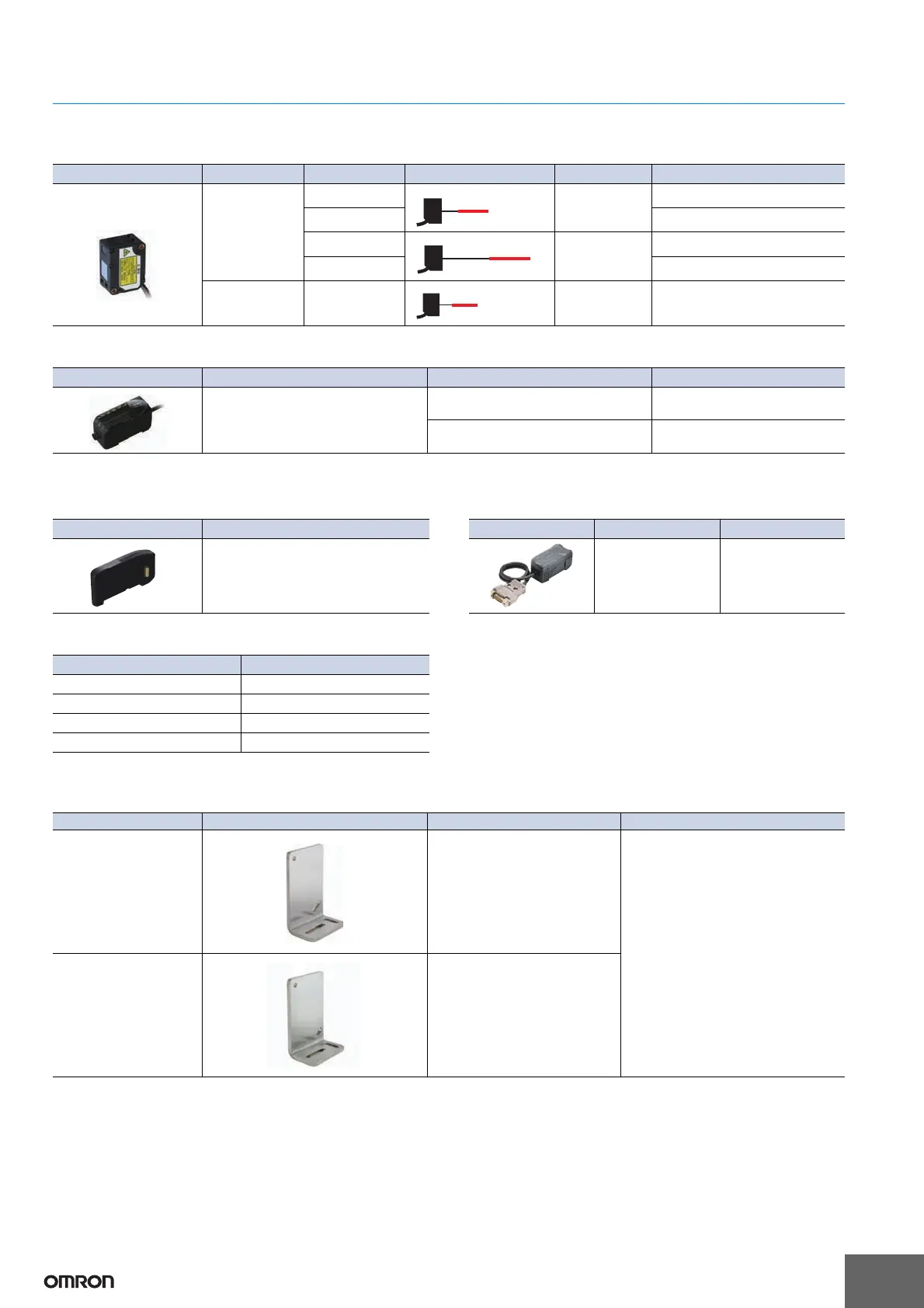

Ordering Information
Units
Sensor Heads [Dimensions➜ page 11]
Amplifier Units [Dimensions ➜ page 11]
Accessories (sold separately) These are not included with the Sensor Head or Amplifier Unit. Please order as necessary.
Calculating Unit [Dimensions ➜ page 12] Communications Interface Unit [Dimensions ➜ page 12]
Sensor Head Extension Cables [Dimensions ➜ page 12]
Note: Extension cables cannot be coupled and used together.
Mounting Brackets [Dimensions ➜ page 13]
Appearance Sensing method Beam shape Sensing distance Resolution Model
Diffuse reflection type
Diffuse-
reflective
Line beam
1.5 μm
ZX2-LD50L 0.5M
Spot beam ZX2-LD50 0.5M
Line beam
5 μm
ZX2-LD100L 0.5M
Spot beam ZX2-LD100 0.5M
Regular-
reflective
Spot beam 1.5 μm ZX2-LD50V 0.5M
Appearance Power supply Output type Model
DC
NPN ZX2-LDA11 2M
PNP ZX2-LDA41 2M
40
50±10 mm
60
65
100±35 mm
135
43
48±5mm
53
Appearance Model
ZX2-CAL
Appearance Type Model
RS-232C ZX2-SF11
Cable Length Model
1 m ZX2-XC1R
4 m ZX2-XC4R
9 m ZX2-XC9R
20 m ZX2-XC20R
Applicable Sensor Head Appearance Model Remarks
ZX2-LD50V
ZX2-LD50L
ZX2-LD50
E39-L178
Mounting Brackets (1)
Nut Plate (1)
Phillips screws (M30 ✕ 30) (2)
ZX2-LD100L
ZX2-LD100
E39-L179
