on networks N300R User Manual

N300 WiFi Router (N300R) User Manual
5-8 Fine-Tuning Your Network
v1.0, May 2012

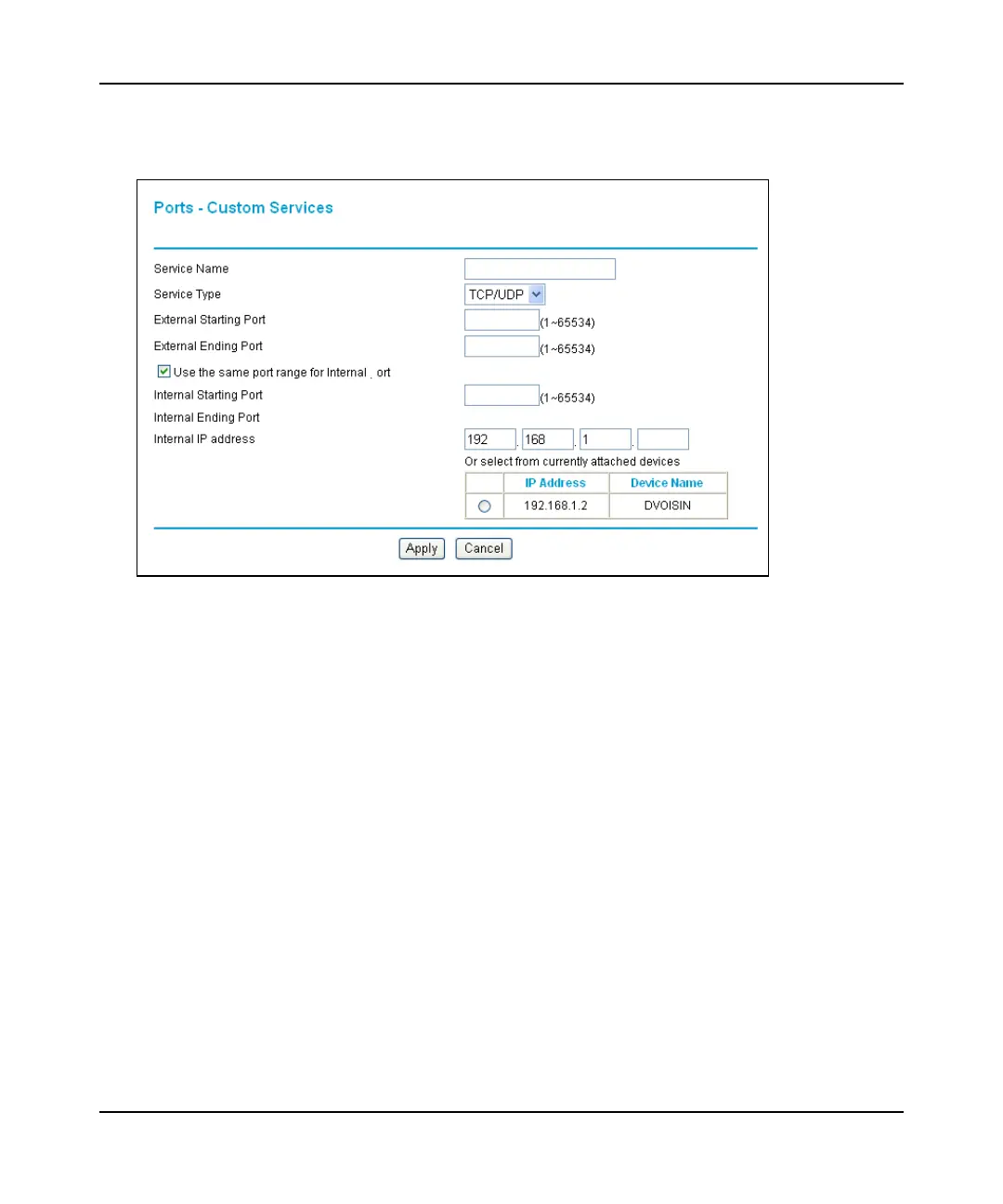

2. Click Add Custom Service (see Figure 5-1 on page 5-7).The Ports–Custom Services screen
displays.
3. In the Service Name field, enter a descriptive name.
4. In the Service Type field, select the protocol. If you are unsure, select TCP/UDP.
5. In the Starting Port field, enter the beginning port number.
• If the application uses only a single port, enter the same port number in the Ending Port
field.
• If the application uses a range of ports, enter the ending port number of the range in the
Ending Port field.
6. In the Server IP Address field, enter the IP address of your local computer that will provide
this service.
7. Click Apply. The service appears in the list in the Port Forwarding/Port Triggering screen.
Figure 5-2

on networks N300R Specifications

General

Brand	on networks
Model	N300R
Category	Network Router
Language	English
