N300 WiFi Router (N300R) User Manual

6-2 Using Network Monitoring Tools

v1.0, May 2012

Viewing WiFi Router Status Information

To view router status and usage information:

1. Select Router Status under Maintenance in the main menu. The Router Status screen

displays.

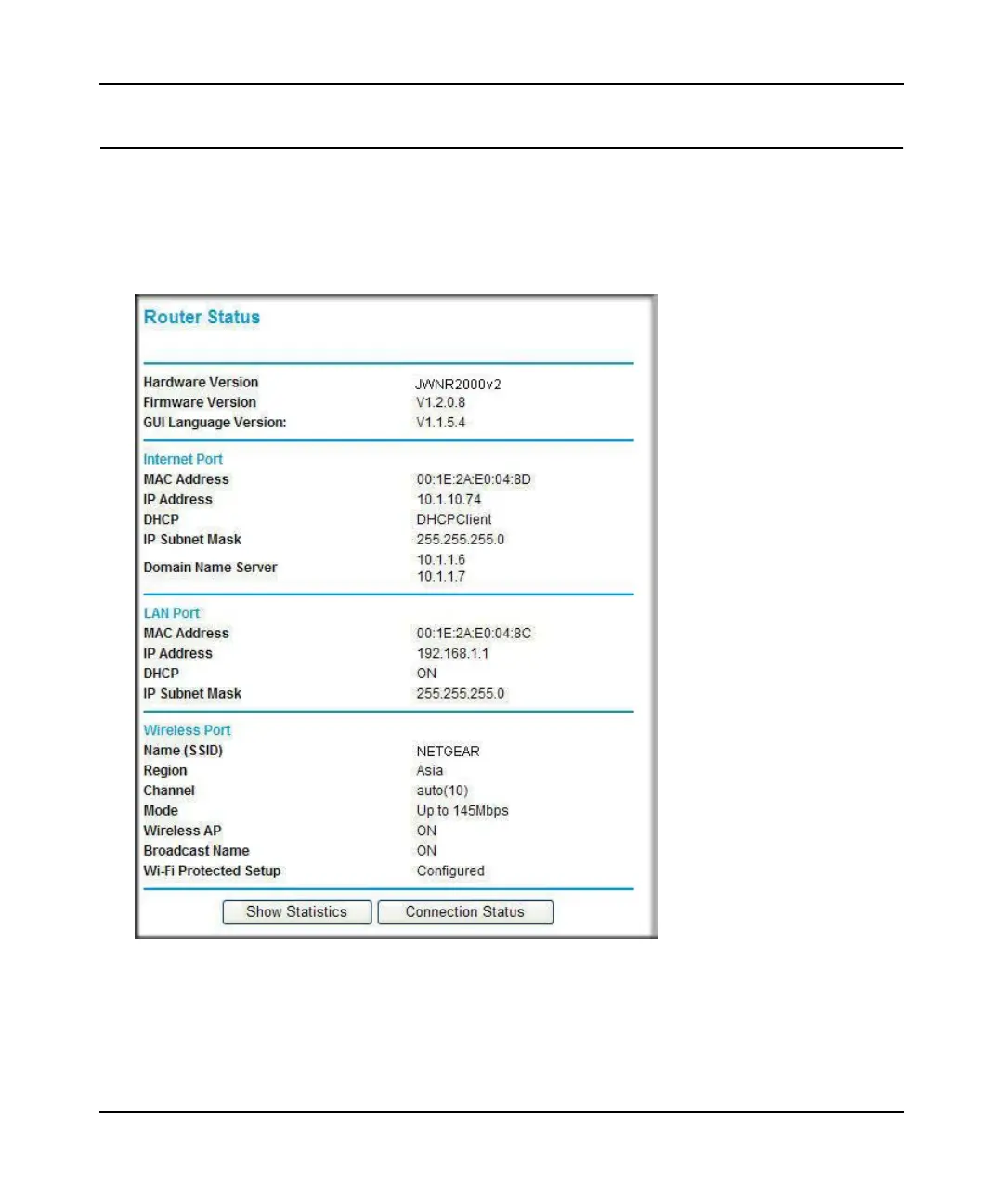

Figure 6-1

Main Page
