Onan 50.0DDB-15R Series User Manual

FUEL PUMP
RETURN LINI.
INJtCTOR
FUEL RETURN
All models require fuel return
line from injectors to tank.
VENT LINE •
FLOAT TYPE
VALVE
'DAY'TANK
5 GAL MIN.
CAPACITY
I SIZE LARGER
OVERFLOW
FUEL TRANSFER
PUMP: - ELECTRIC
MOTOR DRIVEN
SUPPLY LINE
NOTE: Where used. Float-type
"Day" Tank and Lines
must be below injector
return outlet!
WARNING: It is necessary that an overflow
pipe be installed between the day tank and
main fuel tank. A hazardous fire condition
exists with spilled fuel.
- FILL
PIPE
UNDERGROUND
FUEL TANK
u

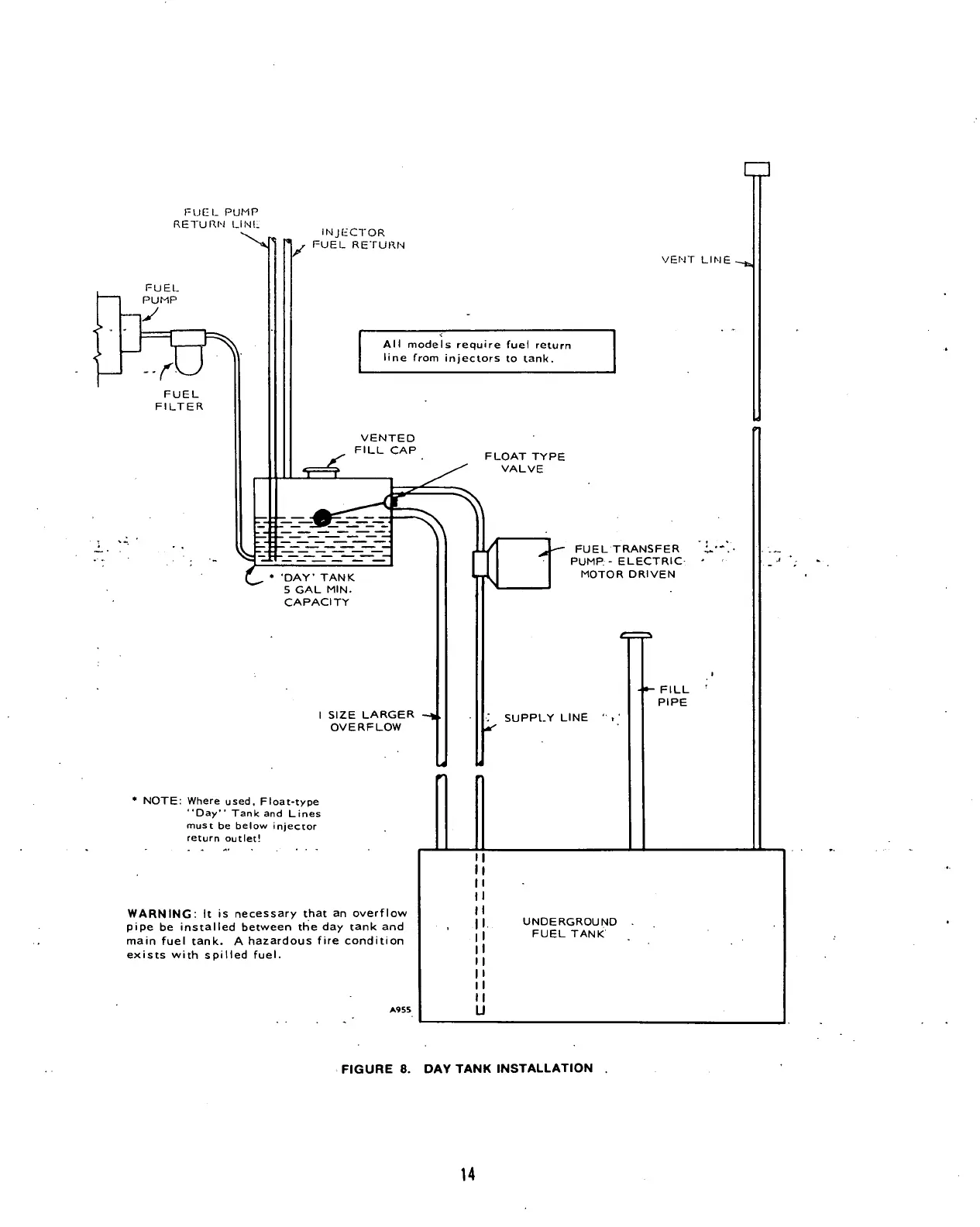

FIGURE 8. DAY TANK INSTALLATION
14
