Onan 50.0DDB-15R Series - Cooling System Group

-2

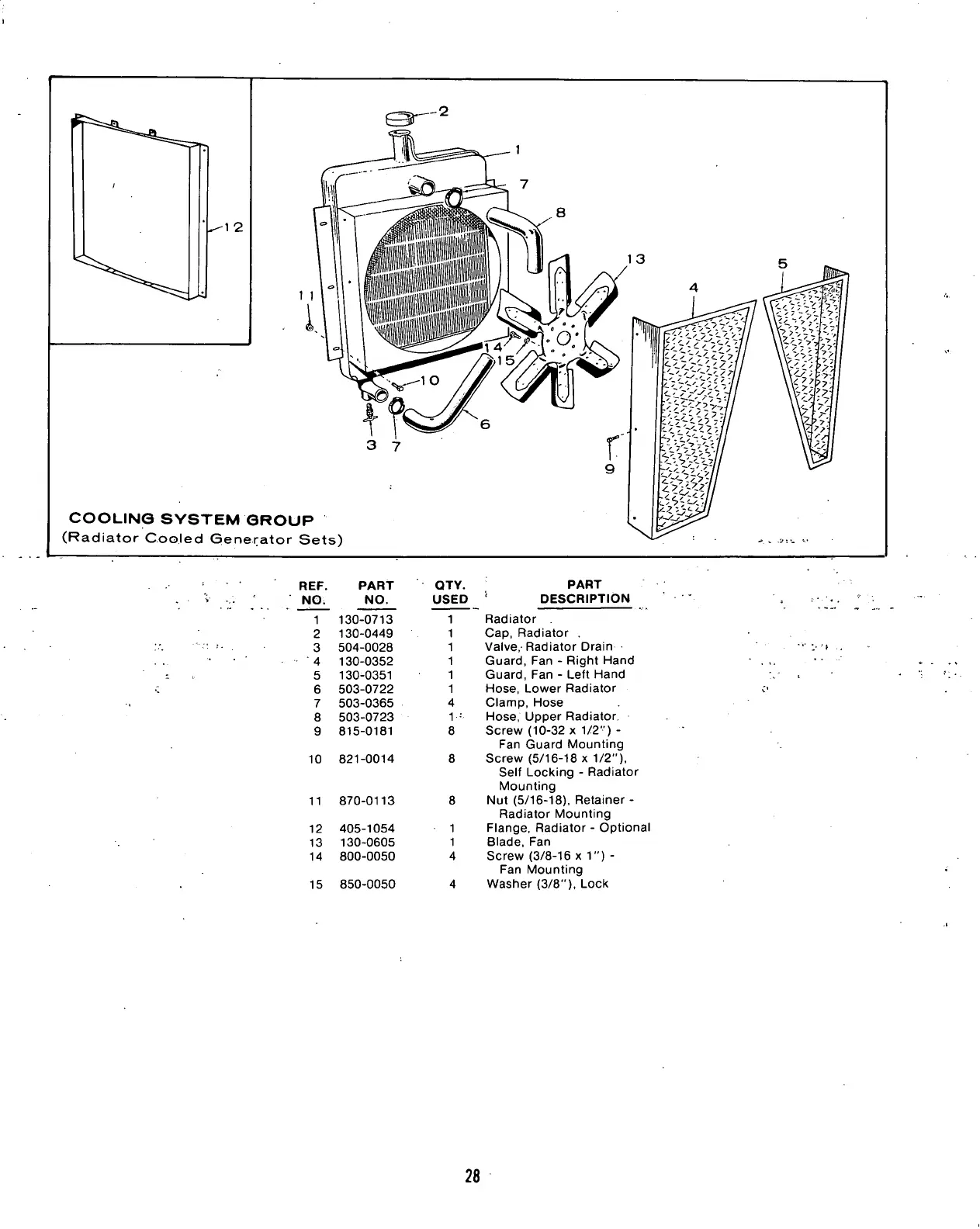

COOLING SYSTEM GROUP
(Radiator Cooled Generator Sets)
REF.
PART
QTY.
PART
NO.
NO.
USED DESCRIPTION
1
130-0713
1
Radiator .
2
130-0449
1
Cap, Radiator .
3
504-0028 1 Valve,-Radiator Drain
• ' 4
130-0352
1
Guard, Fan - Right Hand
5 130-0351
1 Guard, Fan - Left Hand
6
503-0722
1 Hose, Lower Radiator c
7 503-0365
4 Clamp, Hose
8
503-0723
1
:
Hose, Upper Radiator,
9
815-0181 8
Screw (10-32 x 1/2")-
Fan Guard Mounting
10
821-0014 8 Screw (5/16-18 x 1/2"),
Self Locking - Radiator
Mounting
11 870-0113 8 Nut (5/16-18), Retainer -
Radiator Mounting
12
405-1054 1 Flange, Radiator - Optional
13
130-0605
1 Blade, Fan
14 800-0050
4
Screw (3/8-16 x 1") -
Fan Mounting
15 850-0050 4 Washer (3/8"), Lock
