Onan 50.0DDB-15R Series User Manual

179-2022

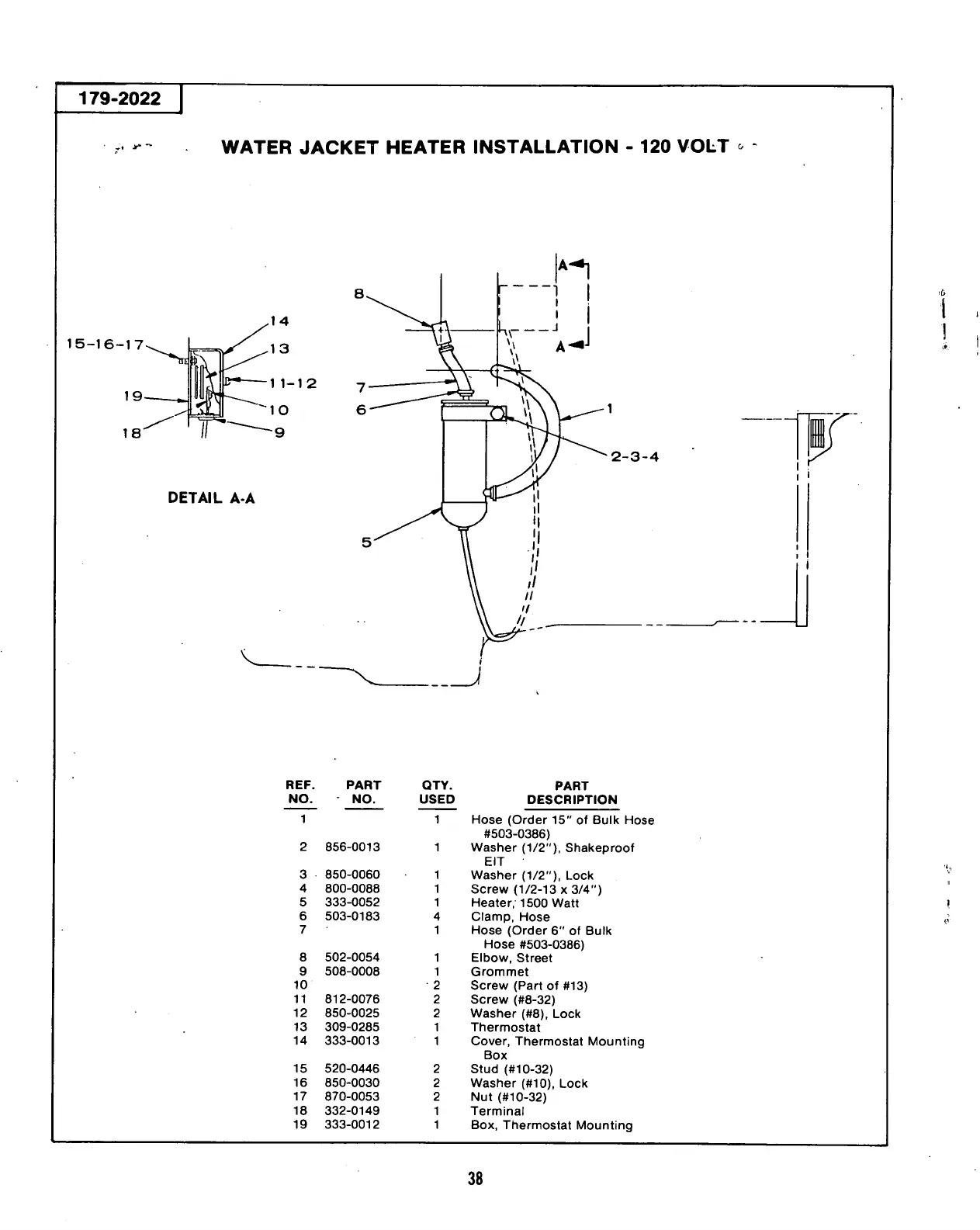

WATER JACKET HEATER INSTALLATION - 120 VOLT
15-16-17
REF.
PART QTY.
PART
NO.
NO. USED
DESCRIPTION
1 1
Hose (Order 15" of Bulk Hose
#503-0386)
2 856-0013 1 Washer (1/2"), Shakeproof
EIT
3 850-0060 1
Washer (1/2"), Lock
4 800-0088 1
Screw (1/2-13x3/4")
5 333-0052 1
Heater, 1500 Watt
6
503-0183 4
Clamp, Hose
7 1
Hose (Order 6" of Bulk
Hose #503-0386)
8 502-0054 1 Elbow, Street
9
508-0008
1
Grommet
10
2
Screw (Partof #13)
11 812-0076 2
Screw (#8-32)
12 850-0025 2
Washer (#8), Lock
13 309-0285 1
Thermostat
14
333-0013
1
Cover, Thermostat Mounting
Box
15 520-0446 2
Stud (#10-32)
16 850-0030 2
Washer (#10), Lock
17 870-0053 2
Nut (#10-32)
18
332-0149
1 Terminal
19 333-0012 1
Box, Thermostat Mounting
