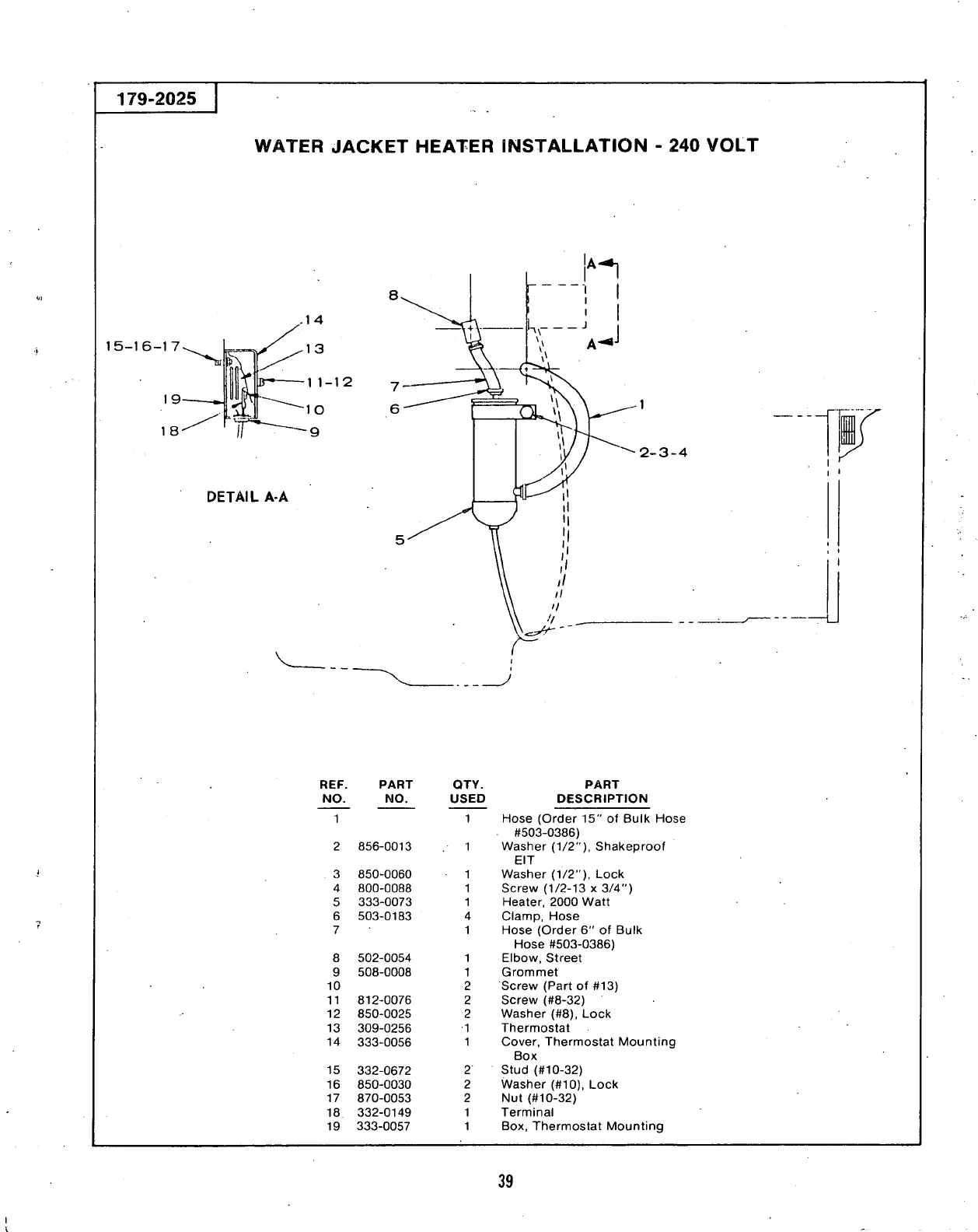

WATER JACKET HEATER INSTALLATION - 240 VOLT
15-16-17
2-3-4
REF. PART QTY. PART
NO. NO.
USED DESCRIPTION
1
1
Hose (Order 15" of Bulk Hose
#503-0386)
2 856-0013 1 Washer (1/2"), Shakeproof
EIT
3 850-0060
1
Washer (1/2"), Lock
4
800-0088
1 Screw (1/2-13 x 3/4")
5 333-0073 1 Heater, 2000 Watt
6 503-0183
4 Clamp, Hose
7 1 Hose (Order 6" of Bulk
Hose #503-0386)
8 502-0054
1
Elbow, Street
9
508-0008
1
Grommet
10 2 Screw (Part of #13)
11 812-0076 2 Screw (#8-32)
12 850-0025
2
Washer (#8), Lock
13
309-0256
T Thermostat
14
333-0056
1 Cover, Thermostat Mounting
Box
15
332-0672
2 Stud (#10-32)
16 850-0030 2 Washer (#10), Lock
17
870-0053
2 Nut (#10-32)
18
332-0149 1 Terminal
19 333-0057 1
Box, Thermostat Mounting
