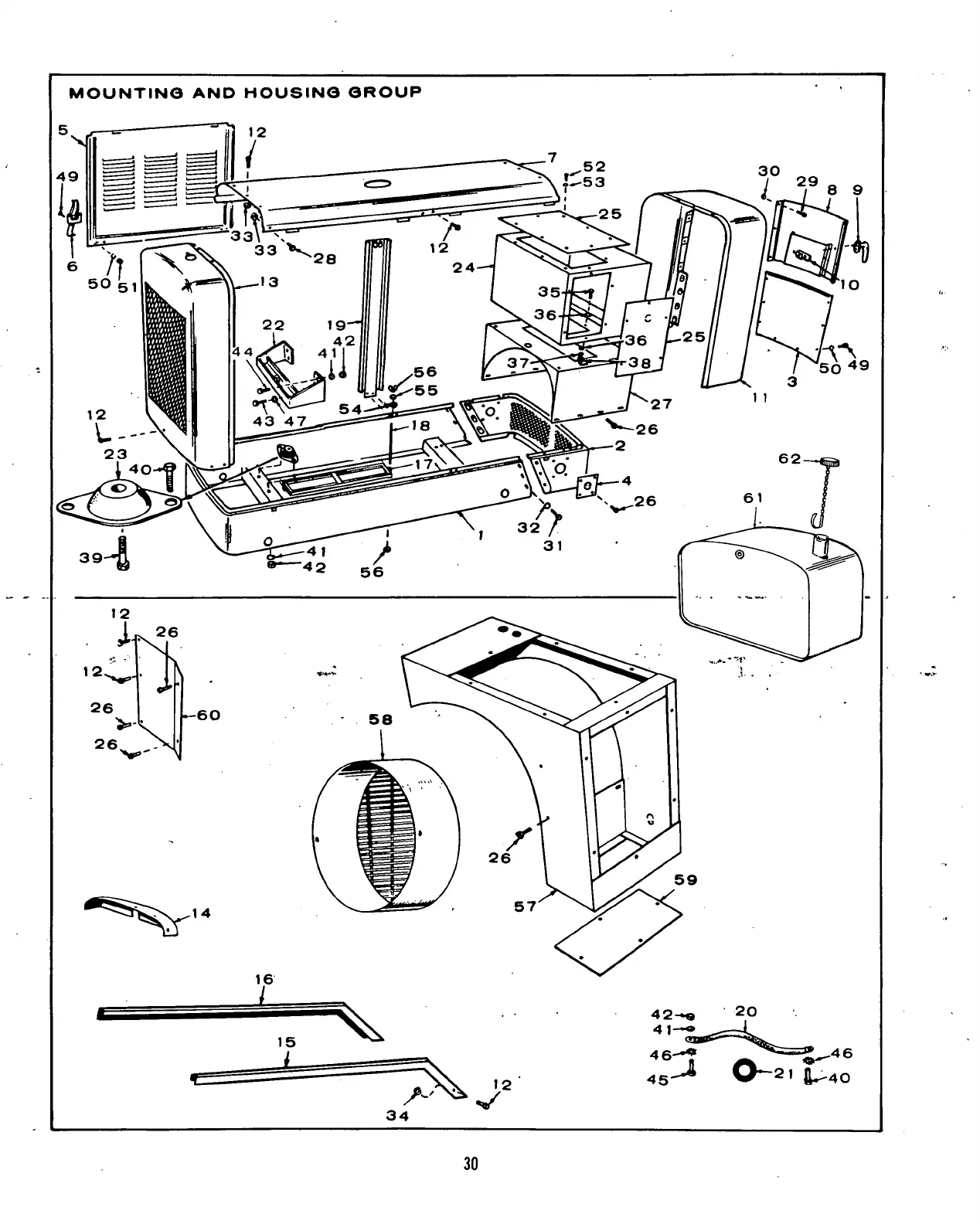

MOUNTIN
G
AN
D
HOUSIN
G
GROU
P
1
2
12
,
2
6
1
2
26
.
-6
0
1
4
1
6
1
5
A
3
4
1
2
4
2
4
4
6—
*
2
0
=5^
4
6
Q-2
1
^.
4
0
3
0
31
33
Table of Contents
Table of Contents
2
Introduction
3
Model Identification
3
Specifications
4
UR Generator Voltage Options
5
Safety Precautions
6
General
6
Fuel System
6
Exhaust System
7
Coolant System
7
Ventilation System
7
Electrical System
7
Typical Control Panel
8
Optional Control Panel
8
Description
9
Engine
9
AC Generator
9
AC Panel
9
Control Panel Interior
10
Optional Modules
10
Terminal Board
10
Voltage Regulator
10
Fault Lamp Options
11
Typical Installation
12
Installation
13
Location
13
Mounting
13
Ventilation
13
City Water Cooling
14
Typical Standpipe System
14
Typical Heat Exchanger System
14
Water Jacket Heater
14
Exhaust
15
Exhaust Thimble
15
Exhaust Condensation Trap
15
Day Tank Installation
16
Fuel Connections
17
Day Tank
17
Battery
17
Battery, Hot Location
17
Remote Control Connections
18
Wiring Connections
18
Load Transfer Switch
18
Control Box Connections
18
Connecting Lead from Terminal 63
19
Phase Delta Connection
19
Operation
20
Prestart Servicing
20
Priming Fuel System
20
Stopping
21
Batteries
21
Starting
21
Exercise Period
21
Troubleshooting Engine Shutdown System
22
No Load Operation
24
Out of Service Protection
24
High Temperatures
24
Low Temperatures
24
General Maintenance
25
Operator Maintenance Schedule
25
Engine Speed
26
Inspection and Cleaning
26
Connections
26
Parts Catalog
27
Onan Parts
27
John Deere Parts
27
Miscellaneous Engine Parts Group
28
Cooling System Group
30
Muffler Installation
31
Mounting and Housing Group
32
Control Group
34
Water Jacket Heater Installation
40
