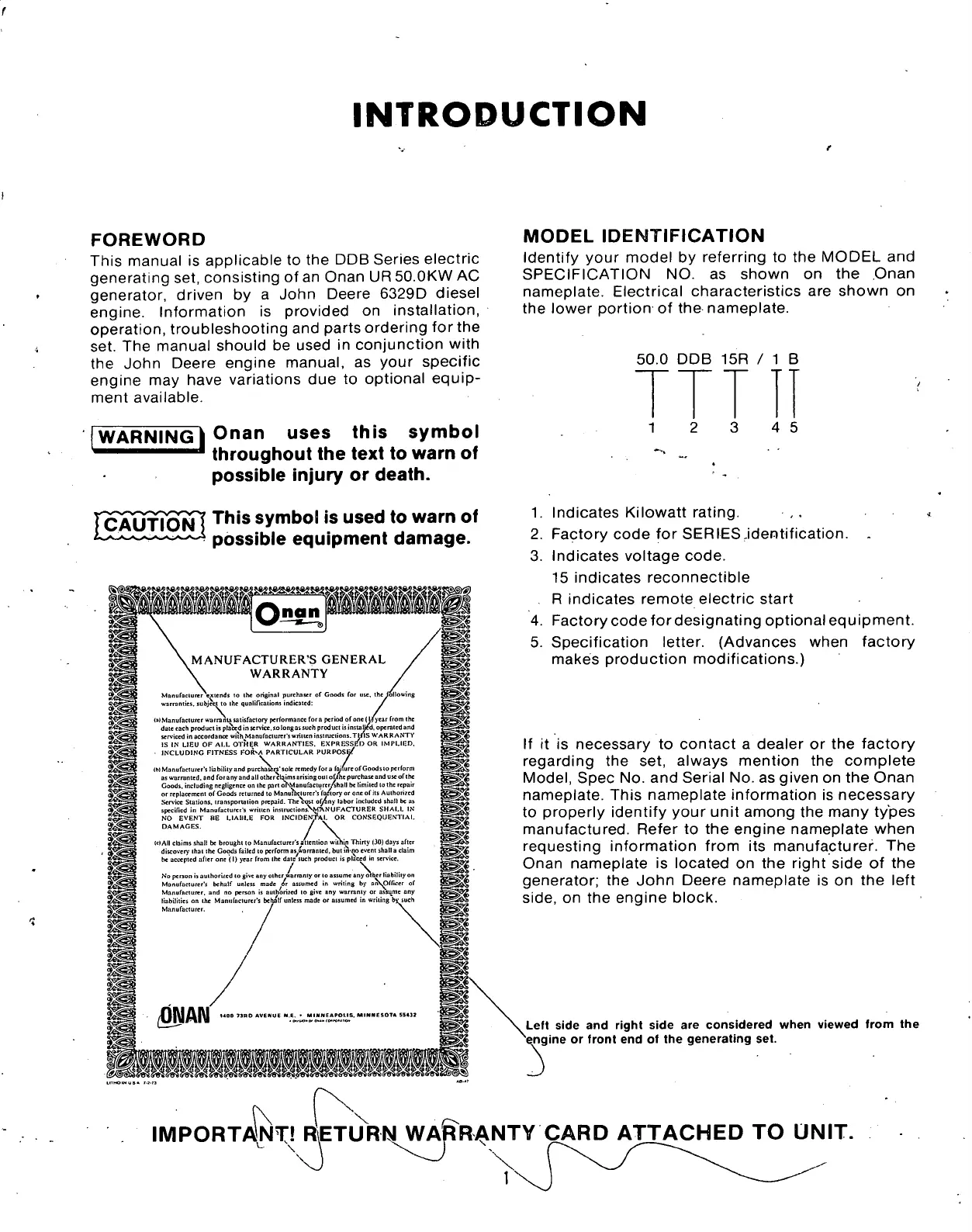

INTRODUCTION
FOREWORD
This manual is applicable to the DDB Series electric
generating set, consisting of an Onan UR 50.0KW AC
generator, driven by a John Deere 6329D diesel
engine. Information is provided on installation,
operation,
troubleshooting and parts ordering for the
set. The manual should be used in conjunction with
the John Deere engine manual, as your specific
engine may have variations due to optional equip-
ment available.
WARNING | Onan
uses
this symbol
' throughout the
text
to warn of
possible
injury or death.
This
symbol is
used
to warn of
possible
equipment damage.
MODEL
IDENTIFICATION
Identify your model by referring to the MODEL and
SPECIFICATION NO. as shown on the Onan
nameplate. Electrical characteristics are shown on
the lower portion of the nameplate.
50.0 DDB 15R /IB
1 2 3 4 5
1.
Indicates Kilowatt rating.
2.
Factory code for SERIES Jdentification. .
3. Indicates voltage code.
15 indicates reconnectible
R indicates remote electric start
4.
Factory codefordesignating optionalequipment.
5. Specification letter. (Advances when factory
makes production modifications.)
If it is necessary to contact a dealer or the factory
regarding the set, always mention the complete
Model,
Spec No. and Serial No. as given on the Onan
nameplate. This nameplate information is necessary
to properly identify your unit among the many types
manufactured. Refer to the engine nameplate when
requesting information from its manufacturer. The
Onan nameplate is located on the right side of the
generator; the John Deere nameplate is on the left
side,
on the engine block.
Left side and right side are considered when viewed from the
ngine or front end of the generating set.
IMPORTANT!
RETURN
WARRANTY
CARD
ATTACHED
TO
UNIT.
