DUAL RANGE
AC VOLTMETER
VOLTAGE ADJUSTING
RHEOSTAT
EXCITER
CIRCUIT BREAKER
INDICATOR LAMPS -INDICATE UPPER
OR LOWER SCALE ON VOLTMETER
PANEL LIGHT AND SWITCH
OIL PRESSURE GAUGE
WATER TEMPERATURE
GAUGE
FAULT LAMP
DC AMMETER
1/4
TURN FASTENERS. TURN BOTH
TO
OPEN HINGED CONTROL PANEL DOORS.
PHASE SELECTOR SWITCH
•—RUN-
STOP- REMOTE SWITCH

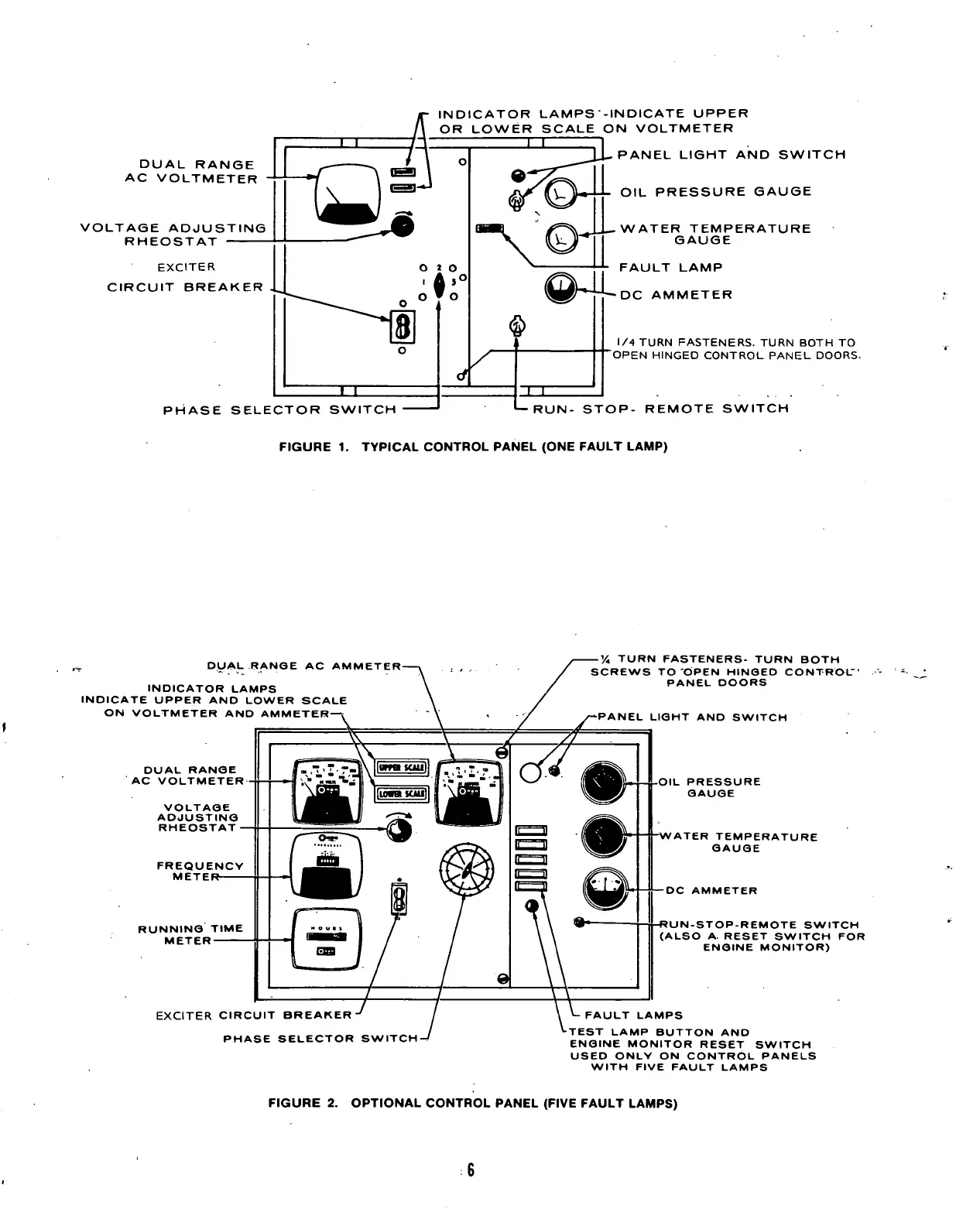

FIGURE
1.
TYPICAL CONTROL PANEL
(ONE
FAULT
LAMP)
DUAL RANGE
AC
AMMETER
INDICATOR LAMPS
INDICATE UPPER
AND
LOWER SCALE
ON VOLTMETER
AND
AMMETER—.
DUAL RANGE
AC VOLTMETER
VOLTAGE
ADJUSTING
RHEOSTAT
FREQUENCY
METER
RUNNING TIME
METER
% TURN FASTENERS- TURN BOTH
SCREWS
TO
OPEN HINGED CONTROL-
PANEL DOORS
PANEL LIGHT
AND
SWITCH
EXCITER CIRCUIT BREAKER
PHASE SELECTOR SWITCH
OIL PRESSURE
GAUGE
WATER TEMPERATURE
GAUGE
DC AMMETER
«UN-STOP-REMOTE SWITCH
(ALSO
A.
RESET SWITCH
FOR
ENGINE MONITOR)
FAULT LAMPS
TEST LAMP BUTTON
AND
ENGINE MONITOR RESET SWITCH
USED ONLY
ON
CONTROL PANELS
WITH FIVE FAULT LAMPS
FIGURE
2. OPTIONAL
CONTROL PANEL (FIVE FAULT LAMPS)
