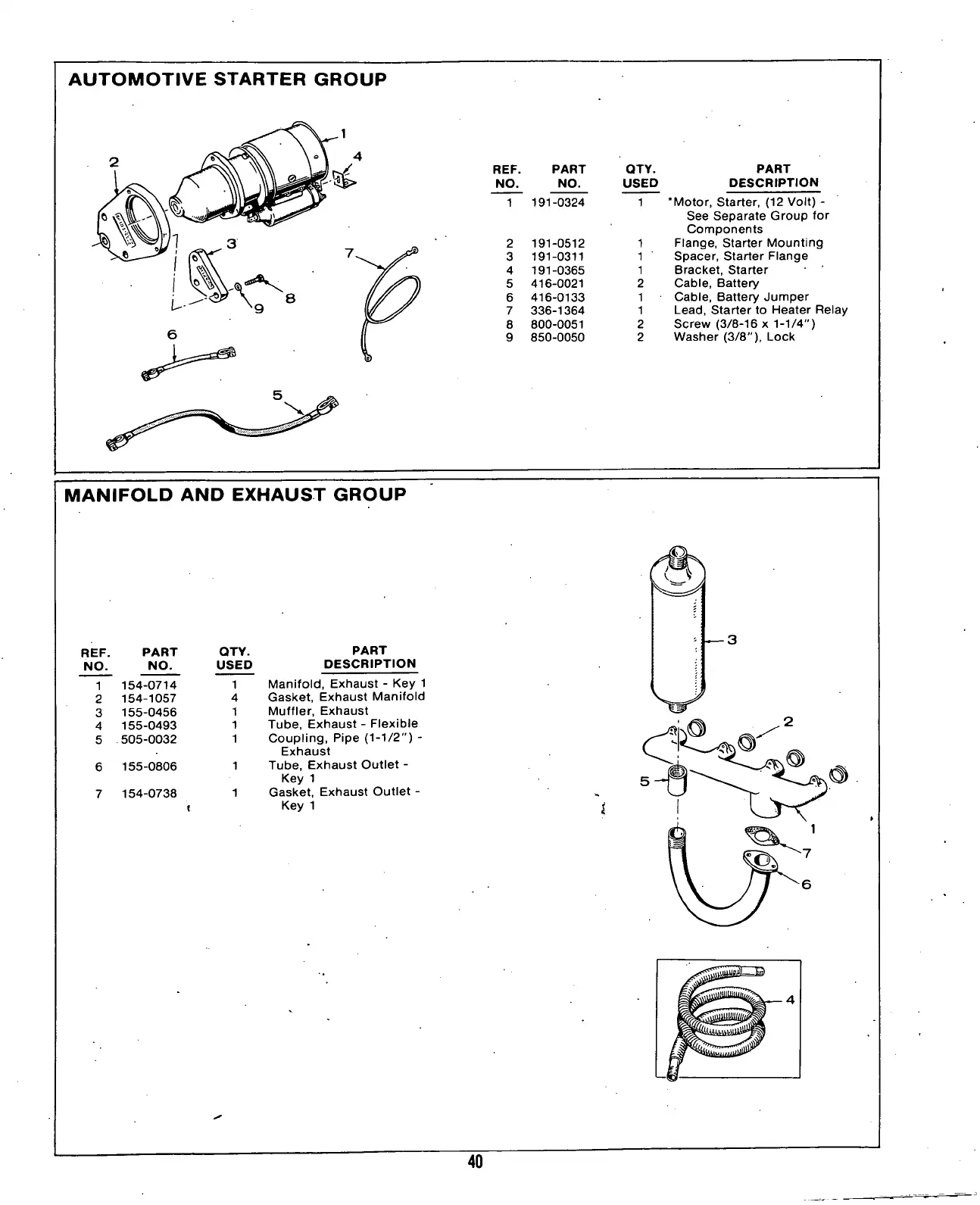

AUTOMOTIVE STARTER GROUP
REF.
NO.
PART
NO.
QTY.
USED
1 191-0324
2 191-0512 1
3 191-0311 1
4 191-0365 1
5 416-0021 2
6 416-0133
1
7 336-1364 1
8 800-0051
2
9
850-0050 2
PART
DESCRIPTION
•Motor, Starter, (12 Volt) -
See Separate Group for
Components
Flange, Starter Mounting
Spacer, Starter Flange
Bracket, Starter
Cable, Battery
Cable, Battery Jumper
Lead, Starter to Heater Relay
Screw (3/8-16 x 1-1/4")
Washer (3/8"), Lock
MANIFOLD AND EXHAUST GROUP
REF.
NO.
1
2
3
4
5
PART
NO.
154-0714
154- 1057
155- 0456
155-0493
505-0032
6 155-0806
7 154-0738
QTY. PART
USED DESCRIPTION
1 Manifold, Exhaust - Key 1
4 Gasket, Exhaust Manifold
1 Muffler, Exhaust
1 Tube, Exhaust - Flexible
1 Coupling, Pipe (1-1/2") -
Exhaust
1 Tube, Exhaust Outlet -
Key 1
1 Gasket, Exhaust Outlet -
Key 1
40
