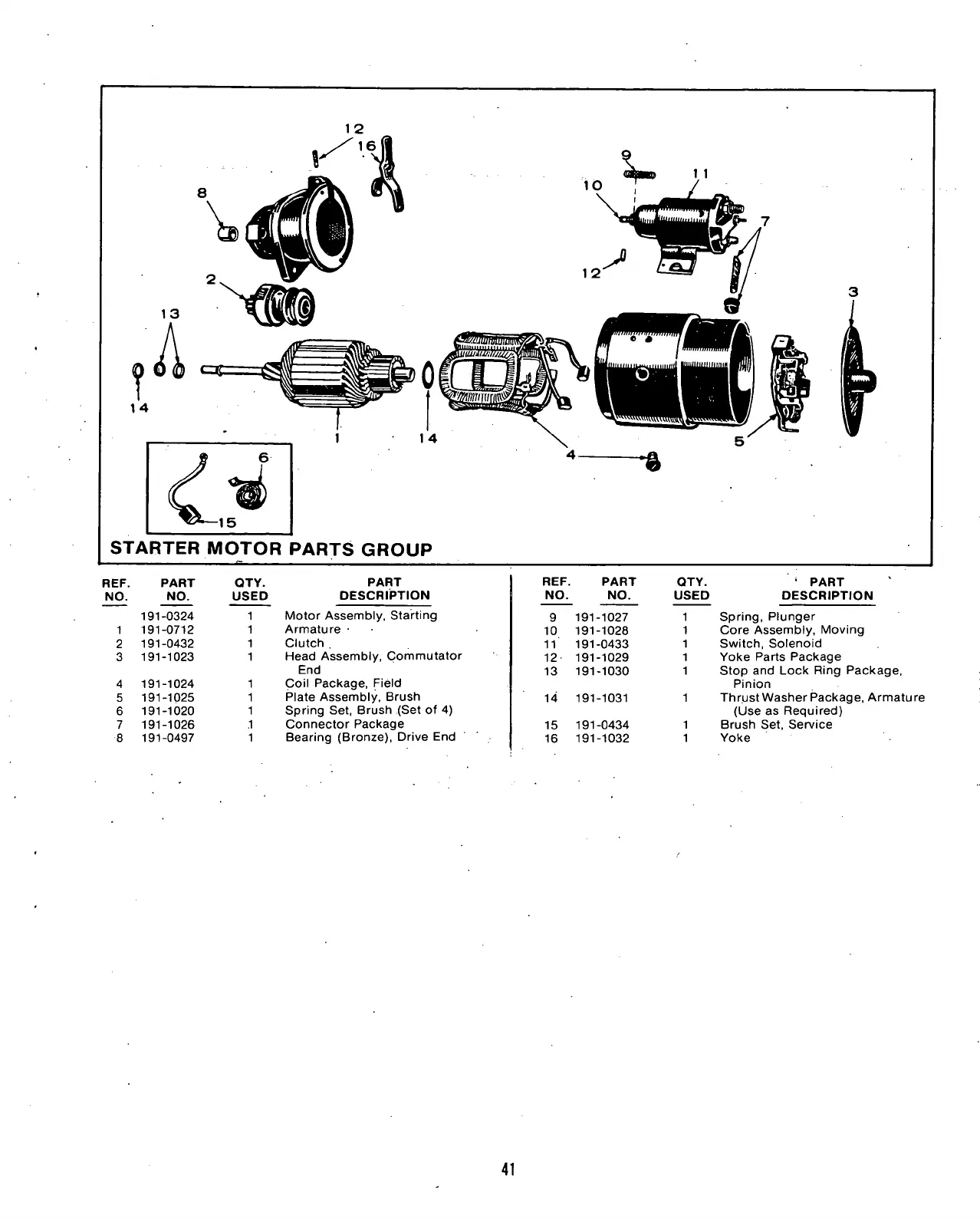

Onan RDJF Series User Manual

REF.
PART QTY.
PART
REF.
PART QTY.
' PART
NO.
NO.
USED
DESCRIPTION NO. NO. USED
DESCRIPTION
191-0324
1
Motor Assembly, Starting
9
191-1027
1 Spring, Plunger
1 191-0712 1 Armature •
10 191-1028
1 Core Assembly, Moving
2
191-0432
1 Clutch .
11'
191-0433
1 Switch, Solenoid
3 191-1023
1 Head Assembly, Commutator
12-
191-1029
1
Yoke Parts Package
End
13 191-1030
1 Stop and Lock Ring Package,
4 191-1024 1 Coil Package, Field Pinion
5 191-1025 1 Plate Assembly, Brush
14 191-1031
1 Thrust Washer Package, Armature
6 191-1020
1 Spring Set, Brush (Set of 4)
(Use as Required)
7 191-1026 .1 Connector Package
15
191-0434 1 Brush Set, Service
8
191-0497 1 Bearing (Bronze), Drive End
16
191-1032 1
Yoke
41
