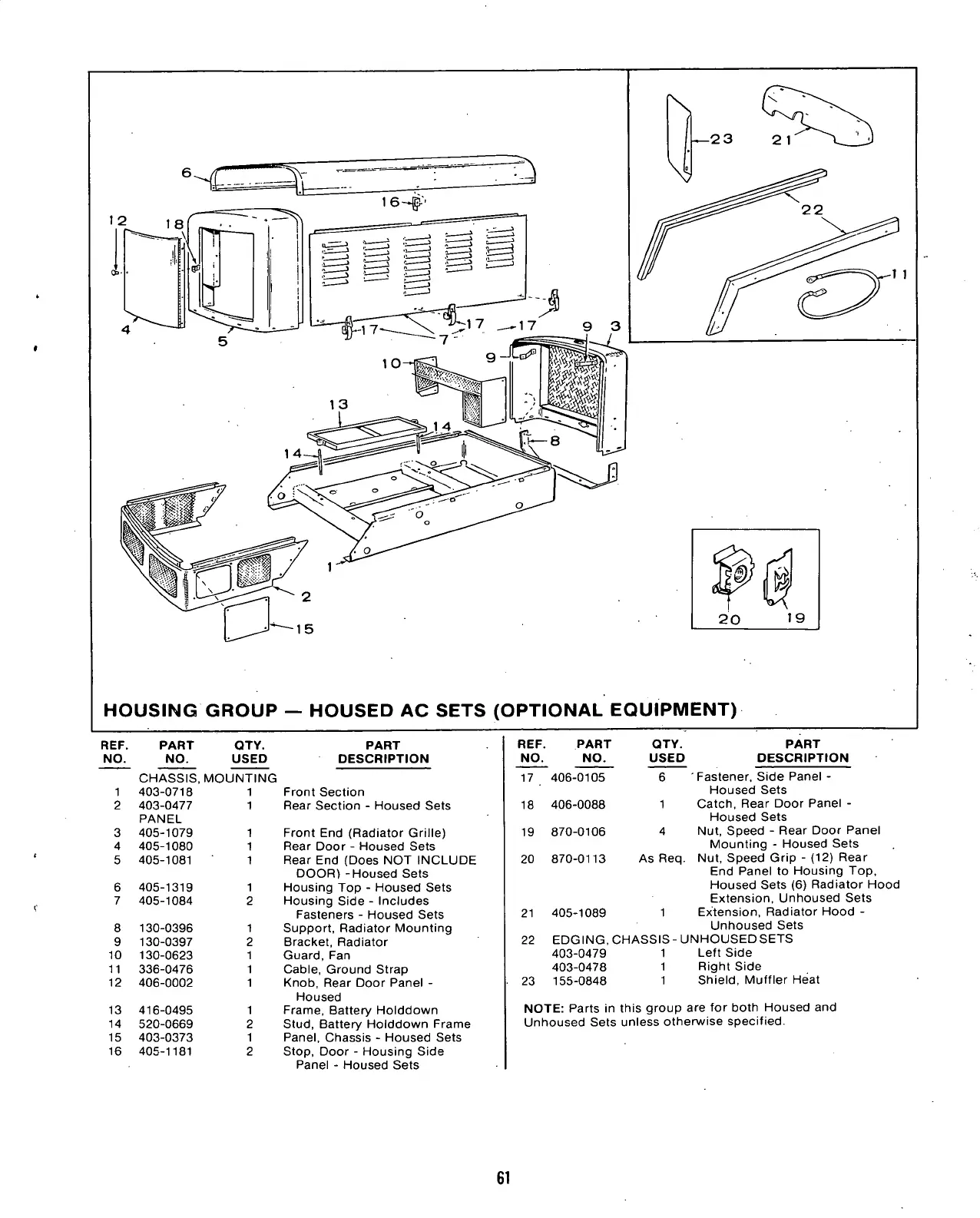

REF. PART QTY. PART
REF. PART QTY.
PART
NO. NO.
USED DESCRIPTION
NO. NO. USED DESCRIPTION
CHASSIS, MOUNTING
17 406-0105
6
Fastener, Side Panel -
1
403-0718
1 Front Section
Housed Sets
2 403-0477
PANEL
1 Rear Section - Housed Sets
18
406-0088
1
Catch, Rear Door Panel -
Housed Sets
3 405-1079
1
Front End (Radiator Grille)
19
870-0106
4
Nut, Speed - Rear Door Panel
4
405-1080 1 Rear Door - Housed Sets
Mounting - Housed Sets
5 405-1081
1
Rear End (Does NOT INCLUDE
DOOR) - Housed Sets
20 870-0113
As Req.
Nut, Speed Grip - (12) Rear
End Panel to Housing Top,
6 405-1319
1
Housing Top - Housed Sets
Housed Sets (6) Radiator Hood
7
405-1084 2 Housing Side - Includes
Extension, Unhoused Sets
7
Fasteners - Housed Sets
21 405-1089
1 Extension, Radiator Hood -
8 130-0396 1 Support, Radiator Mounting
Unhoused Sets
9
130-0397 2 Bracket, Radiator
22
EDGING, CHASSIS - UNHOUSED SETS
10
130-0623 1 Guard, Fan
403-0479 1
Left Side
11 336-0476
1
Cable, Ground Strap
403-0478
1 Right Side
12 406-0002 1 Knob, Rear Door Panel -
Housed
23
155-0848
1 Shield, Muffler Heat
13
416-0495
1 Frame, Battery Holddown
NOTE: Parts in this group are for both Housed and
14
520-0669 2 Stud, Battery Holddown Frame
Unhoused Sets unless otherwise specified.
15
403-0373
1
Panel, Chassis - Housed Sets
16 405-1181 2 Stop, Door - Housing Side
Panel - Housed Sets
61
