•Q

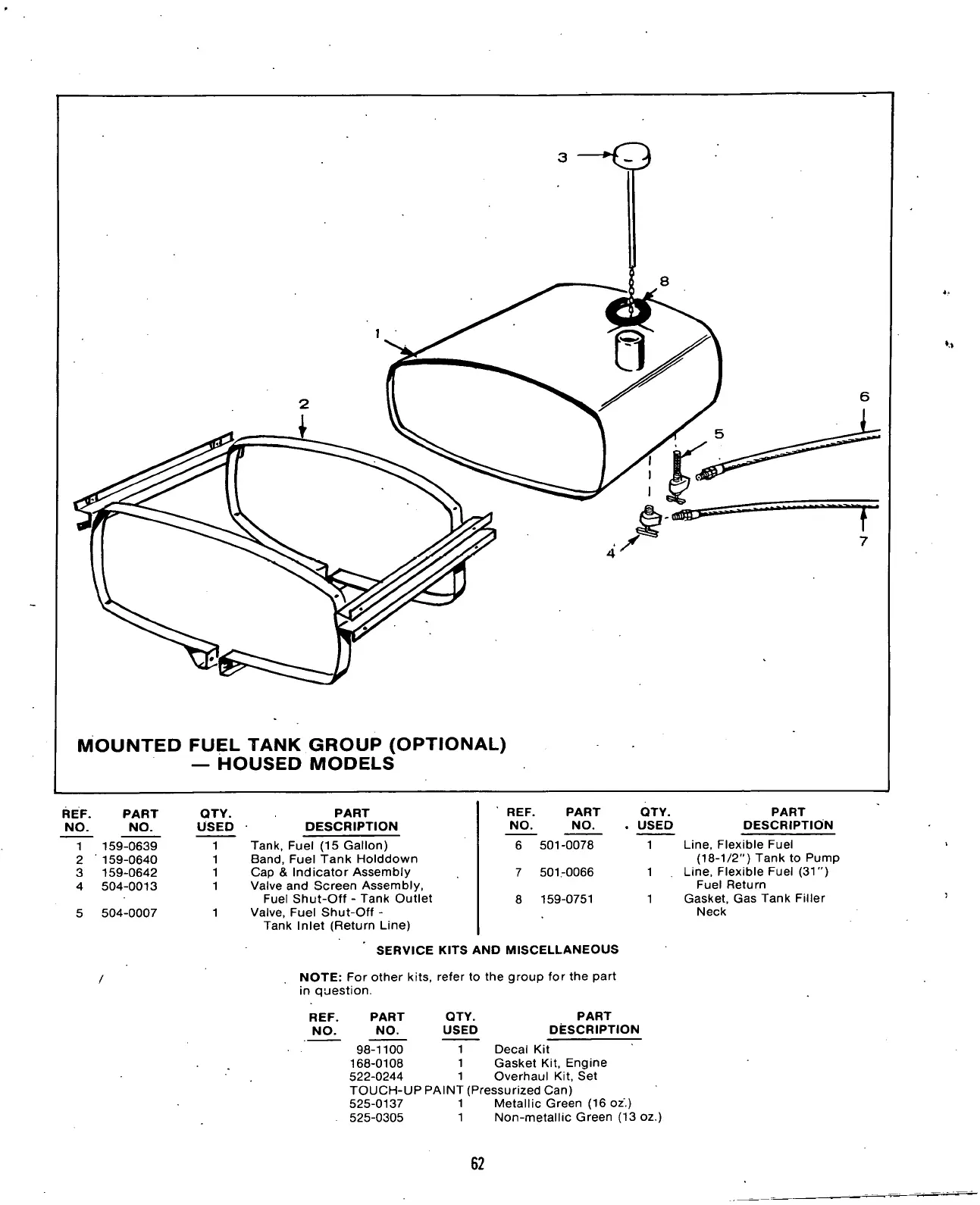

MOUNTED FUEL TANK GROUP (OPTIONAL)
— HOUSED MODELS
REF. PART
QTY.
PART
REF. PART QTY.
NO.
NO.
USED
DESCRIPTION NO. NO. USED
1
159-0639
1
Tank, Fuel (15 Gallon)
6 501-0078
1
2
159-0640 1
Band, Fuel Tank Holddown
3 159-0642 1
Cap & Indicator Assembly 7 501.-0066 1
4 504-0013
1
Valve and Screen Assembly,
Fuel Shut-Off - Tank Outlet
8 159-0751 1
5
504-0007 1
Valve, Fuel Shut-Off -
Tank Inlet (Return Line)
SERVICE KITS AND MISCELLANEOUS
/
NOTE: For other kits, refer to the group for the part
PART
DESCRIPTION
Line, Flexible Fuel
(18-1/2") Tank to Pump
Line, Flexible Fuel (31")
Fuel Return
Gasket, Gas Tank Filler
Neck
in question.
REF.
NO.
PART QTY.
PART
NO.
USED
DESCRIPTION
98-1100
1
Decal Kit
168-0108
1
Gasket Kit, Engine
522-0244 1 Overhaul Kit, Set
TOUCH-UP PAINT (Pressurized Can)
525-0137 1 Metallic Green (16 oz.)
525-0305
1
Non-metallic Green (13 oz.)
62
