Turbine Flow Meter Manual 05/13 - 0721-1 / 13518 Page 37

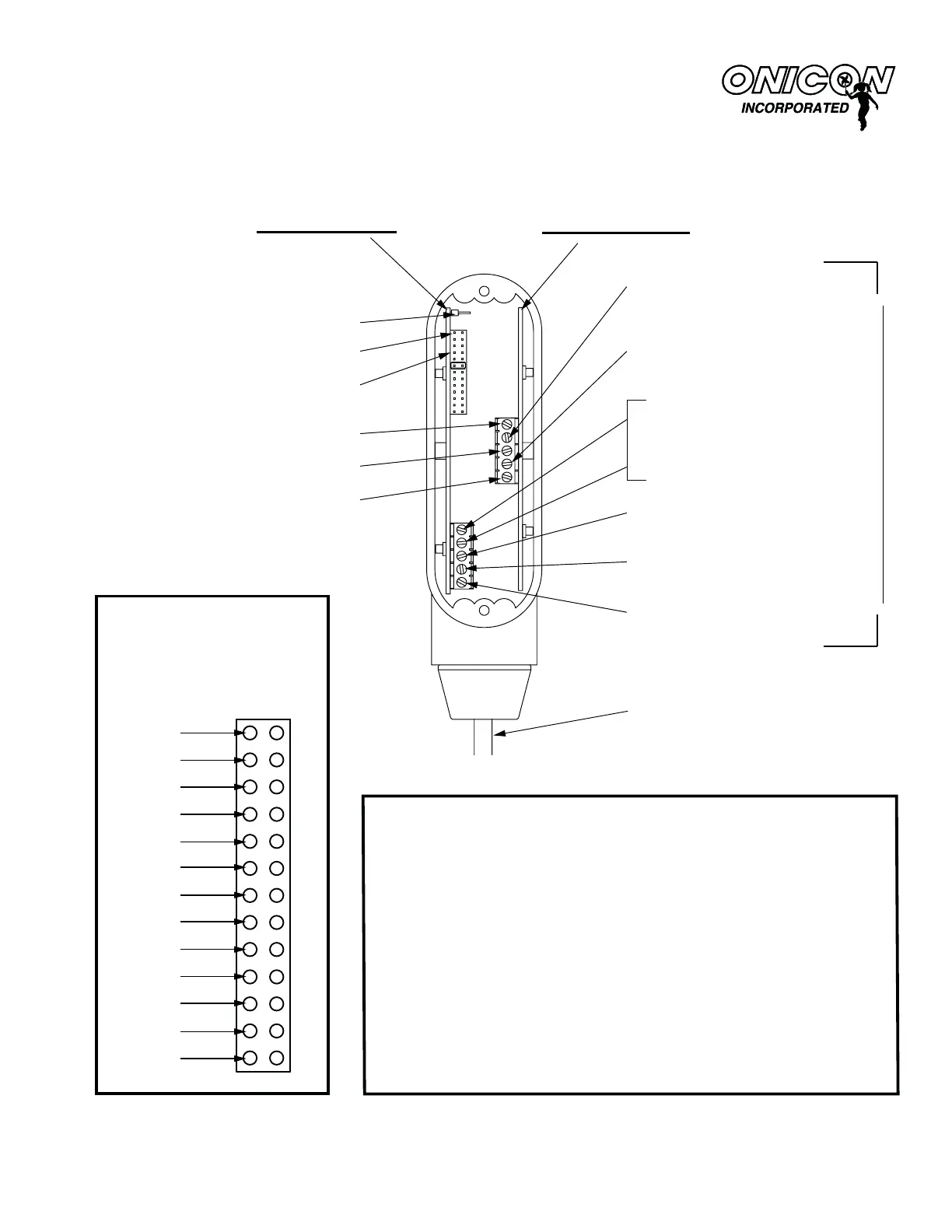

WIRING DIAGRAM
INTERNAL CONNECTIONS FOR
DIVIDED OUTPUT FLOW METERS
MODELS F-1120 / F-1220 / F-1320
SENSING BOARD
DIVIDER BOARD
EXTERNAL CABLE CONNECTIONS
NOTES:
1:1
1:32
1:16
1:8
1:4
1:2
1:4096
1:2048
1:1024
1:512
1:256
1:128
1:64
1:1 JUMPER AT
THIS END
8-22-00
1500 North Belcher Road, Clearwater, Florida 33765 Tel (727) 447-6140 Fax (727) 442-5699
www.onicon.com E-mail: sales@onicon.com
0069-1
AVAILABLE BINARY DIVIDER
SELECTIONS
SELECT ONLY ONE VALUE
OR THE DIVISION WILL
NOT BE CORRECT
TOP TURBINE:
F-1220 ONLY
(WHITE WIRE)
BOTTOM TURBINE:
F-1220 ONLY
(ORANGE WIRE)
(BROWN WIRE)
DIVIDED OUTPUT SWITCH
(BLUE WIRE)
FREQUENCY OUTPUT
(GREEN WIRE)
COMMON GROUND
(BLACK WIRE)
24V AC/DC SUPPLY
(RED WIRE)
EXTERNAL CABLE
NOTE: INTERNAL CONNECTIONS
OMITTED FOR CLARITY
TEST SIGNAL INPUT
1:1 JUMPER AT THIS END
DIVIDER JUMPER BLOCK
BLACK WIRE (BOARD TO BOARD)
GREEN WIRE (BOARD TO BOARD)
RED WIRE (BOARD TO BOARD)
For use with serial numbers
115692 and later
0069-1 08-00
