05-11
0542-2/15953
1500 North Belcher Road, Clearwater, FL 33765 • Tel (727) 447-6140 • Fax (727) 442-5699
www.onicon.com • sales@onicon.com
For Use With Kits: INSTL19, INSTL20, INSTL21, INSTL22, INSTL23, INSTL24,
INSTL25, INSTL26, INSTL27, INSTL28, INSTL29, INSTL30, INSTL75
Pipe saddle types vary by application.
Important Note
ONICON provides pipe saddles to facilitate the installation of our ow meters. These saddles
are purchased from leading manufacturers who provide quality products. Separate installation
instructions accompany the saddle. Please follow these instructions when installing the
saddle. Pay particular attention to bolt torque specications and temperature/pressure limits.
Installation Hardware Instructions
Hot Tap Installation Kit for Applications Requiring Pipe Saddles
For F-1100, F-1200 & FB-1200 Series Insertion Turbine Flow Meters
This kit can be installed on a pressurized pipe. A hot tap drilling machine is used to create a one
inch opening in the pipe wall. Once installed, this kit allows for insertion and removal of the ow
meter without a system shutdown.
Directions:
1. Identify an appropriate location for the ow meter
(see pages 2-4).
2. Clamp the saddle onto the pipe; refer to
manufacturer’s instructions.

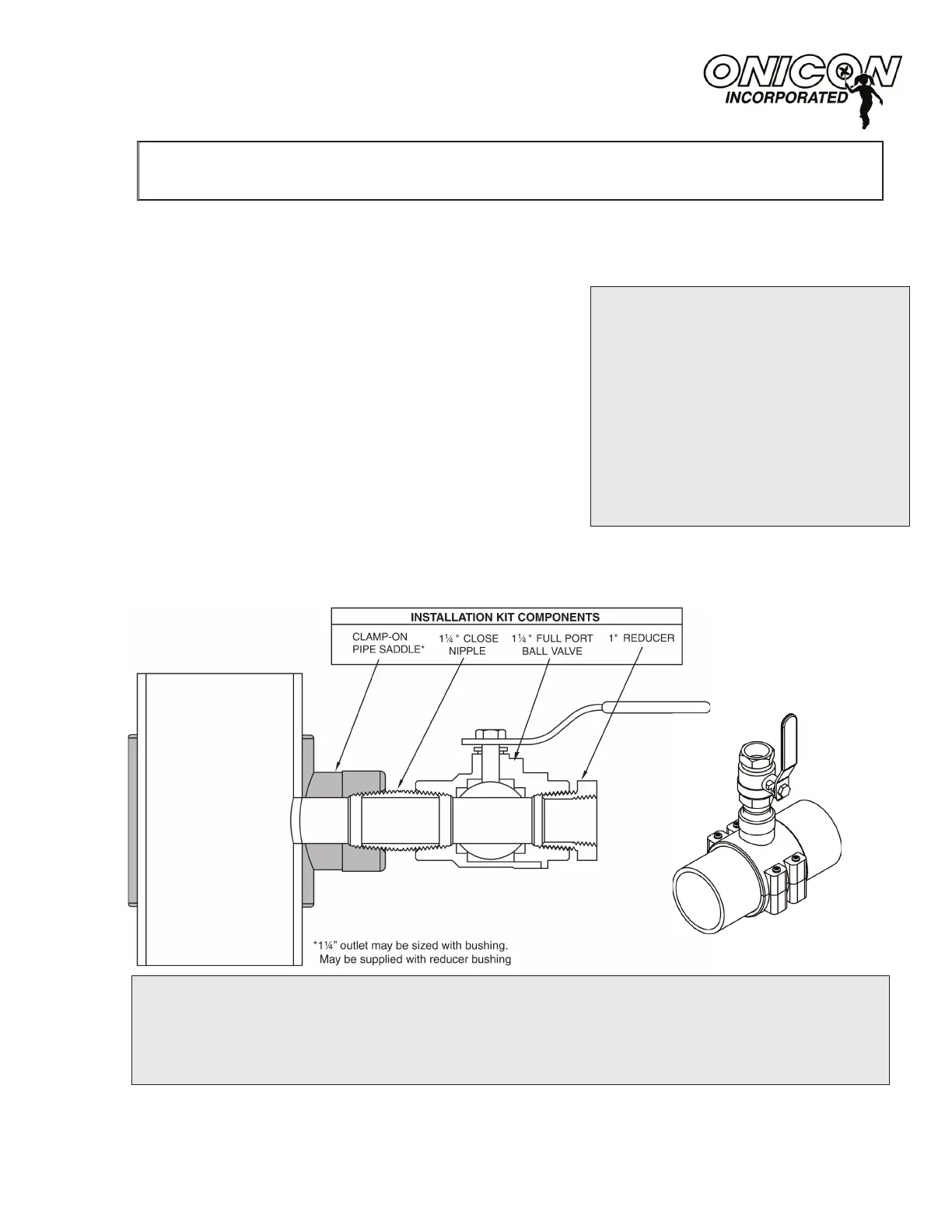

3. Install the close nipple and ball valve as shown
below. Use a paste type thread sealant. DO NOT
use Teon
®
tape.
4. Use a hot tap drilling machine with a 1” hole saw
to drill the access hole.
5. Remove the drill; then ush all debris out of the
valve.
6. Use the 1” reducer provided in this kit when
installing the ow meter.
Important Note
ONICON insertion ow meters
are precision measuring devices
that must be installed according to
the instructions contained in this
document in order to maintain their
accuracy and reliability. Failure to
follow these instructions will result
in erratic operation and reduced
accuracy.
NOTE: Before installing the ow meter,
read the entire installation manual.
(see Sections 3.1 and 3.2).
