09-08
0544-1
For Use With Kits: INSTL7, INSTL8
Installation Hardware Instructions
Standard Installation Kit for 1¼” – 2½” Threaded Pipe
For F-1100, F-1200 & FB-1200 Series Insertion Turbine Flow Meters
This kit must be installed prior to lling the system, or into a section of pipe that is isolated from
pressure and ow. Once installed, this kit allows for insertion and removal of the ow meter without
a system shutdown.
Directions:
1. Identify an appropriate location for the ow meter
(see pages 2-4).

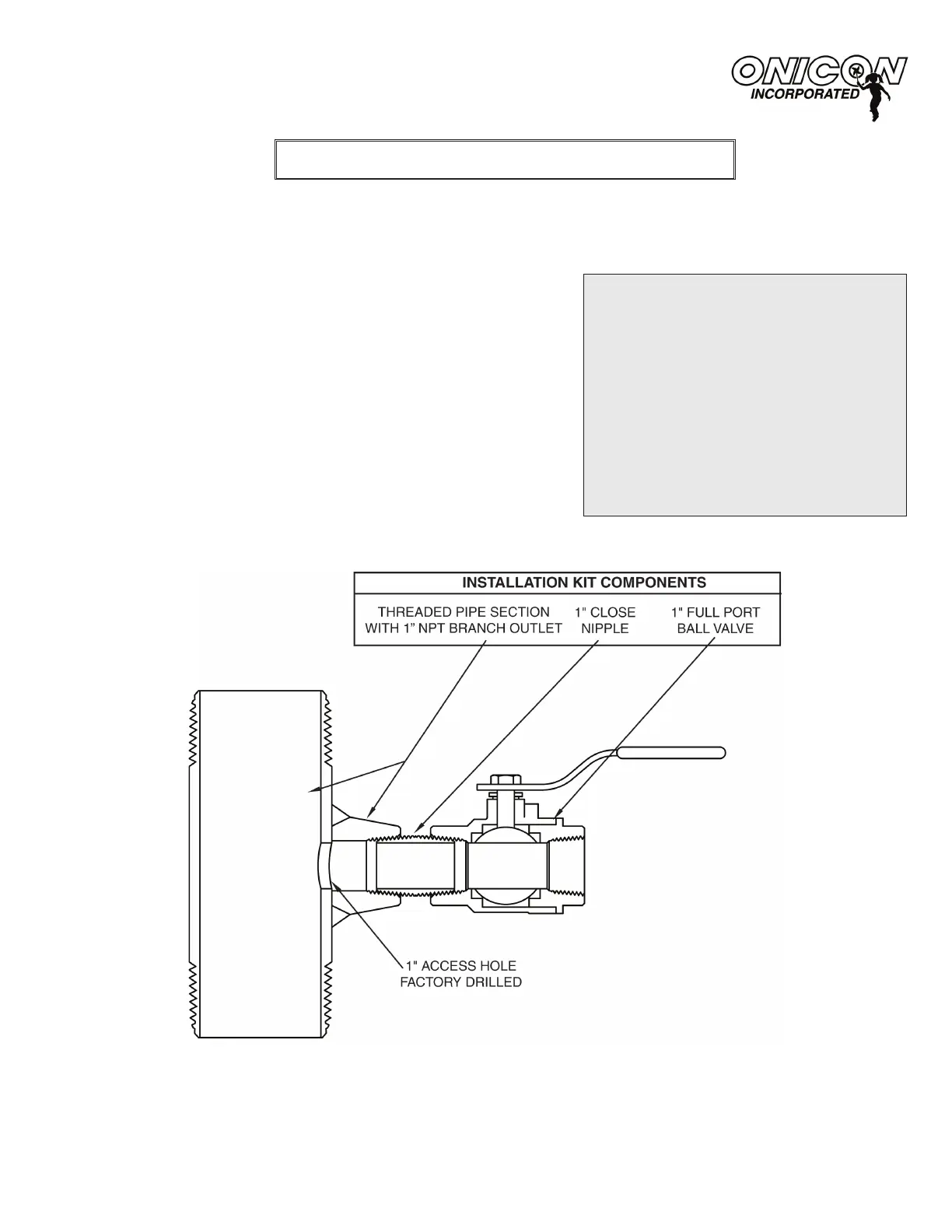

2. Install the threaded pipe nipple, close nipple and
ball valve as shown below. Use a paste type
thread sealant. DO NOT use Teon
®
tape.
3. Flush and ll the system prior to installing
the meter.
NOTE: Before installing the ow meter, read the entire
installation manual.
Important Note
ONICON insertion ow meters
are precision measuring devices
that must be installed according to
the instructions contained in this
document in order to maintain their
accuracy and reliability. Failure to
follow these instructions will result
in erratic operation and reduced
accuracy.
(see Sections 3.1 and 3.2).
