Before Using This Product—Continued
6
Names of Each Part

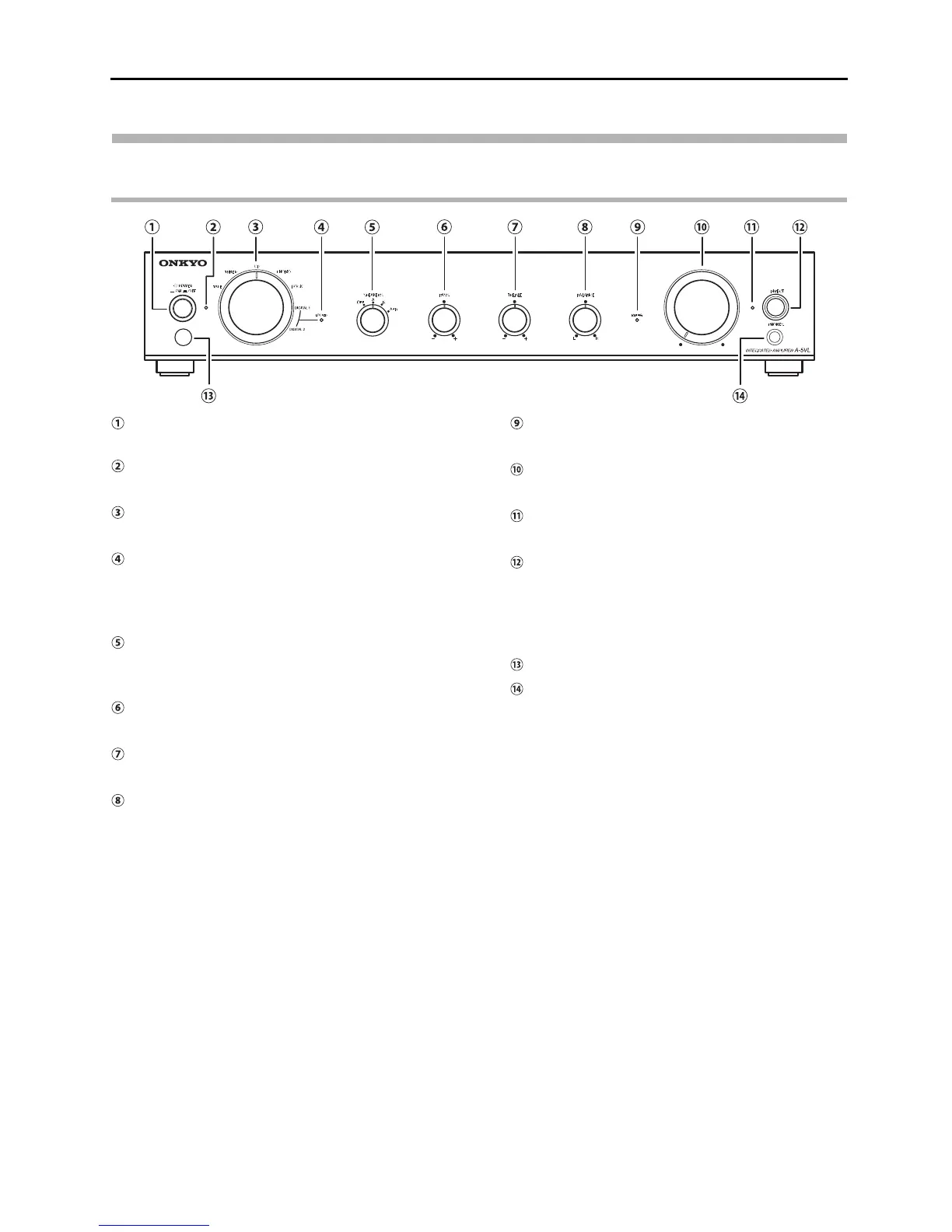

Front Panel
POWER button
This button is used to turn the unit on and off.
POWER indicator
Illuminates when the amp is on.
Input selector control
This control is used to select the playback device.
LOCKED indicator
Illuminates when there is audio signal input from
the device connected to DIGITAL1 (COAXIAL)
or DIGITAL2 (OPTICAL).
SPEAKERS control
This control sets the speaker output to A, B, A+B,
or OFF.
BASS control
This control is used to adjust the bass volume.
TREBLE control
This control is used to adjust the treble volume.
BALANCE control
This control is used to adjust the left-right audio
balance.
MUTING indicator
Illuminates when the volume is muted.
VOLUME control
This control adjusts the volume.
DIRECT indicator
Illuminates when there is direct output.
DIRECT button
This button selects whether to output the audio-
signal input directly, or to output it through the
amp, adjusting the BASS, TREBLE, and
BALANCE.
Remote control sensor
PHONES jack
Stereo headphones with a standard plug can be
plugged into this jack.
