Connections
En-7

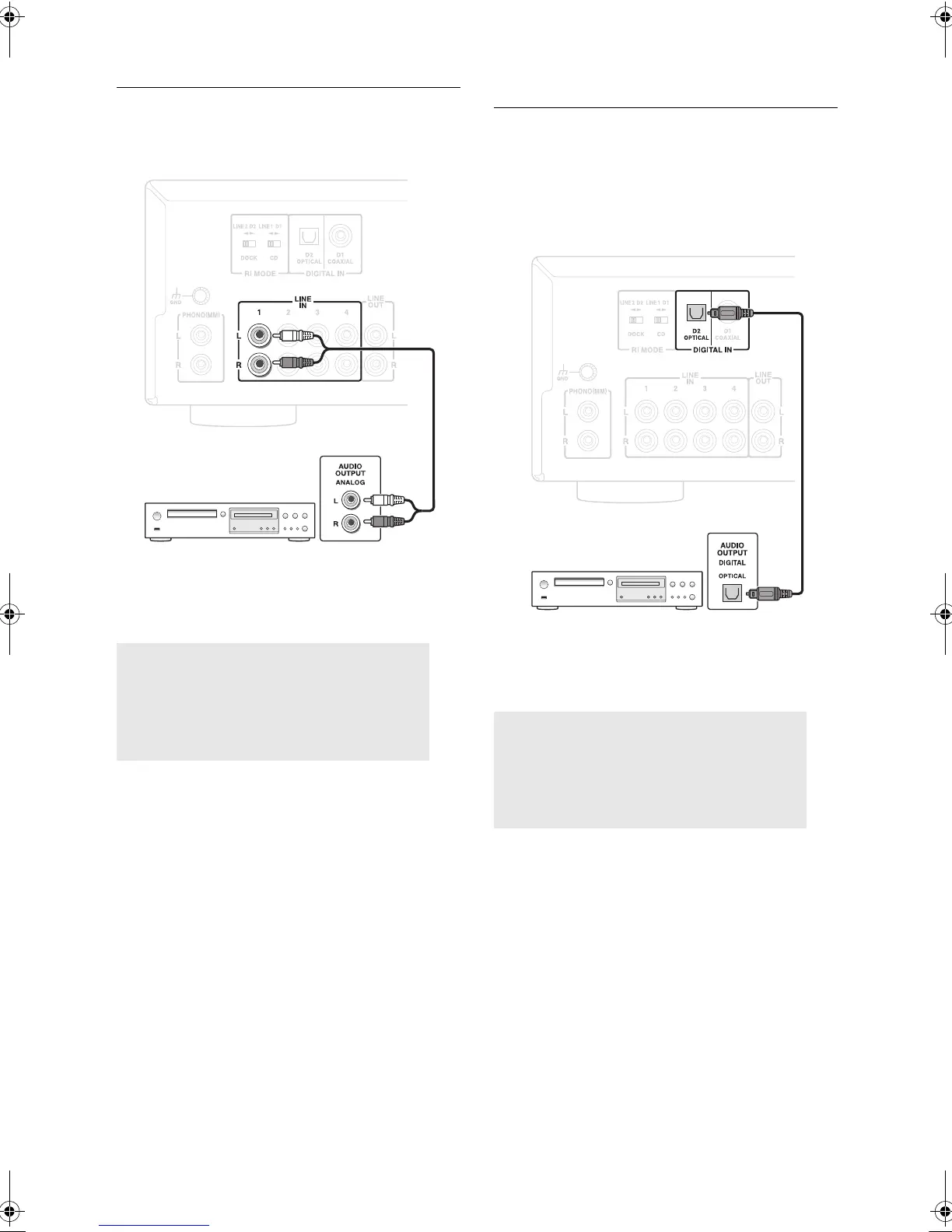

Connecting CD player, etc., via LINE
Using an audio pin cable, connect to one of the terminal
of LINE IN 1/2/3/4.
Example: Connection with the LINE IN 1 terminal
0 When playing back, turn the INPUT selector and light
up the input source LED corresponding to the
connected terminal. (Example: “LINE 1” when
connected to the LINE IN 1 terminal)
Connecting CD player, etc., via DIGITAL (North
American and Continental European models)
Connect to either COAXIAL (D1) terminal or OPTICAL
(D2) terminal in accordance with the connecting terminal
of the reproduction equipment to be used.
A PCM digital audio can be enjoyed with this unit. Do not
input digital audio signal other than PCM.
Example: Connection with the OPTICAL (D2) terminal
0 When playing back, turn the INPUT selector and light
up the input source LED corresponding to the
connected terminal. (Example: “D 2” when connected
to the OPTICAL (D2) terminal)
Connecting to an Onkyo equipment with RI
terminal
The operation such as power can be linked when
connecting to an Onkyo equipment with RI terminal.
For the connecting and setting methods, refer to
“Connecting Onkyo equipment with RI terminal” (> 8).
Connecting to an Onkyo equipment with RI
terminal
The operation such as power can be linked when
connecting to an Onkyo equipment with RI terminal.
For the connecting and setting methods, refer to
“Connecting Onkyo equipment with RI terminal” (> 8).
