Connections
En-10

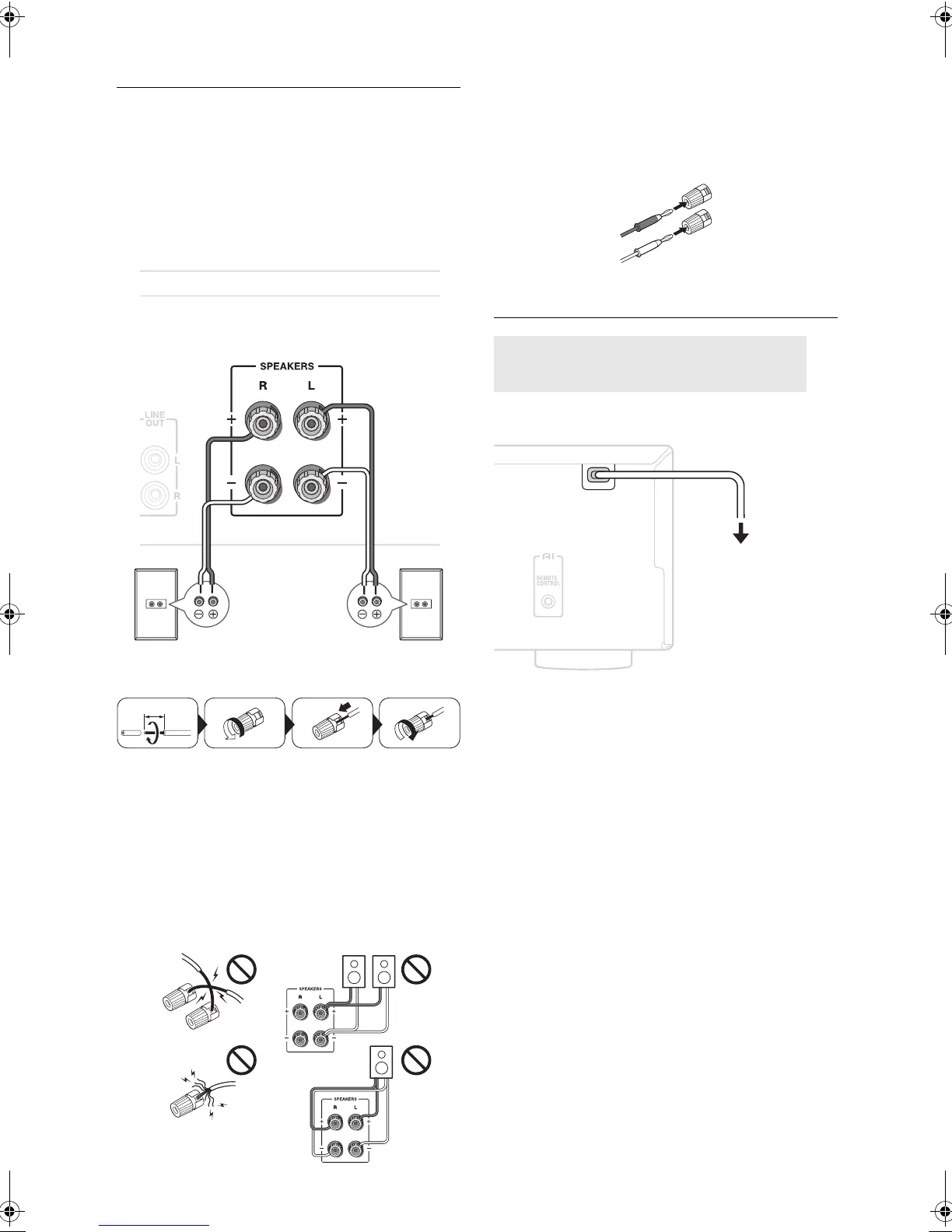

Connecting speakers
Refer to the illustration below to connect the unit and the
right and left speakers with the speaker cables. Connect
the speaker to be placed on the right hand side to the
SPEAKERS terminal (R), and connect the speaker to be
placed on the left hand side to the SPEAKERS terminal
(L).
Important: Connect speakers with 4 h to 16 h
impedance. Connecting a speaker with a lower
impedance may damage the unit.
Remove the vinyl from the tip of the speaker cable and
twist the core before connecting to the terminal. Make
correct connection between the unit’s terminals and
speaker’s terminals (i to i and j to j) for each
channel. If connection is wrong, a bass sound may
become poor due to reverse phase.
0 Short-circuiting the i cable and j cable or contacting
the cable core to the rear panel of the unit may cause
failure. Also do not connect two or more cables to one
speaker terminal or one speaker to several terminals.
0 (North American models) When using commercially
available banana plugs, tighten the speaker terminals
to the end and then insert the banana plugs. It is not
possible to connect by inserting the core of the
speaker cable directly into the hole for a banana plug.
Make sure to attach a banana plug before inserting.
Connecting the power cord
Connect the power cord to an AC outlet.
0 Turning on the unit may cause a momentary power
surge that might interfere with other electrical
equipment on the same circuit. If this is a problem,
plug the unit into a different branch circuit.
0 To reduce noise, do not tie signal cables together with
the power cord. Wire them so that they are away from
each other.
Disconnect the power cord only after putting the unit into
standby mode.
Left speakerRight speaker
Speaker cable
Before connecting the power cord, connect all of your
equipment.
