En-6

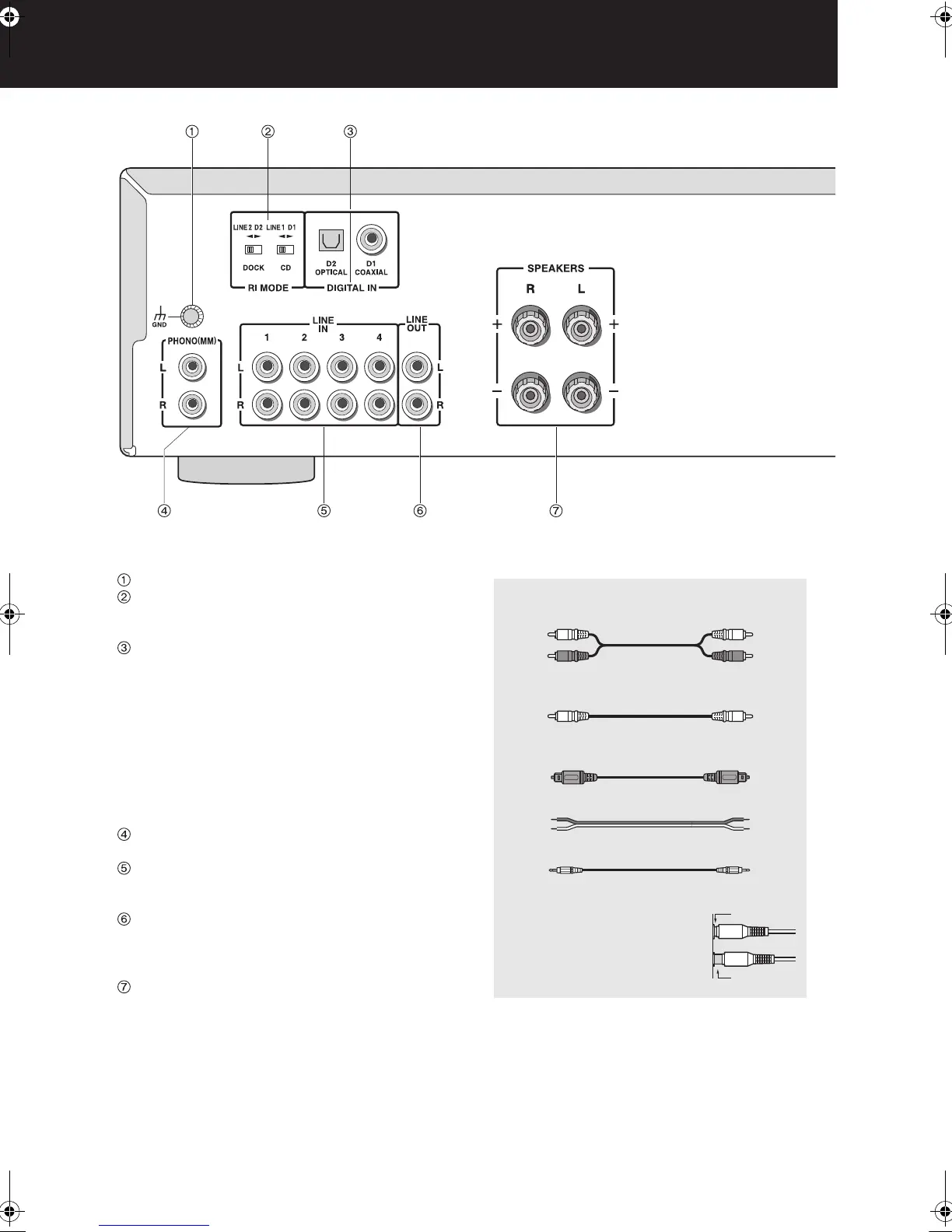

Connections
GND terminal: Connects the turntable’s ground wire.
RI MODE switch (North American and Continental
European models): Used to set the link function with
the Onkyo equipment with RI terminal.
DIGITAL IN COAXIAL (D1)/OPTICAL (D2) jacks
(North American and Continental European
models): Connects to a reproduction equipment with
digital audio output terminal such as CD player, TV,
etc. Connect with an optical digital cable (OPTICAL) or
an coaxial digital cable (COAXIAL).
0 As the OPTICAL (D2) jack of the unit has a cover,
push in the cable against the cover as it is turned
inside.
0 To prevent cover damage, hold the optical plug
straight when inserting and removing.
PHONO (MM) jacks: Connects to a turntable with an
audio pin cable.
LINE IN 1/2/3/4 jacks: Connects to a reproduction
equipment such as CD player, etc., with an audio pin
cable.
LINE OUT jacks: Connects to a recording equipment
such as cassette tape deck, etc., with an audio pin
cable. This is used to record an audio from the
reproduction equipment connected to this unit.
SPEAKERS terminals: Connect speakers.
Cables used to connect (sold separately)
Audio pin cable
(North American and Continental European models)
Coaxial digital cable
(North American and Continental European models)
Optical digital cable
Speaker cable
RI cable
Push plugs in all the way to make
good connections. Loose
connections can cause noise or
malfunctions.
