Getting to Know the CD receiver
For detailed information, see the pages in parentheses.
a iPod/iPhone Dock (24)
b Dock cover (24)
c  ON/STANDBY button (17, 29, 31, 32)
d INPUT button (17, 24, 25, 26, 27)
e Previous []/PRESET [] button
(19, 24, 27)
f Next []/PRESET [] button (19, 24, 27)
g Stop [] button (19, 24, 32)
h Play/Pause [/] button (19)
i VOLUME [–]/[+] buttons (17, 25)
j Headphones jack (17)
k Display
l Disc tray (19)
m Remote control sensor (12)
n Open/Close [] button (19)

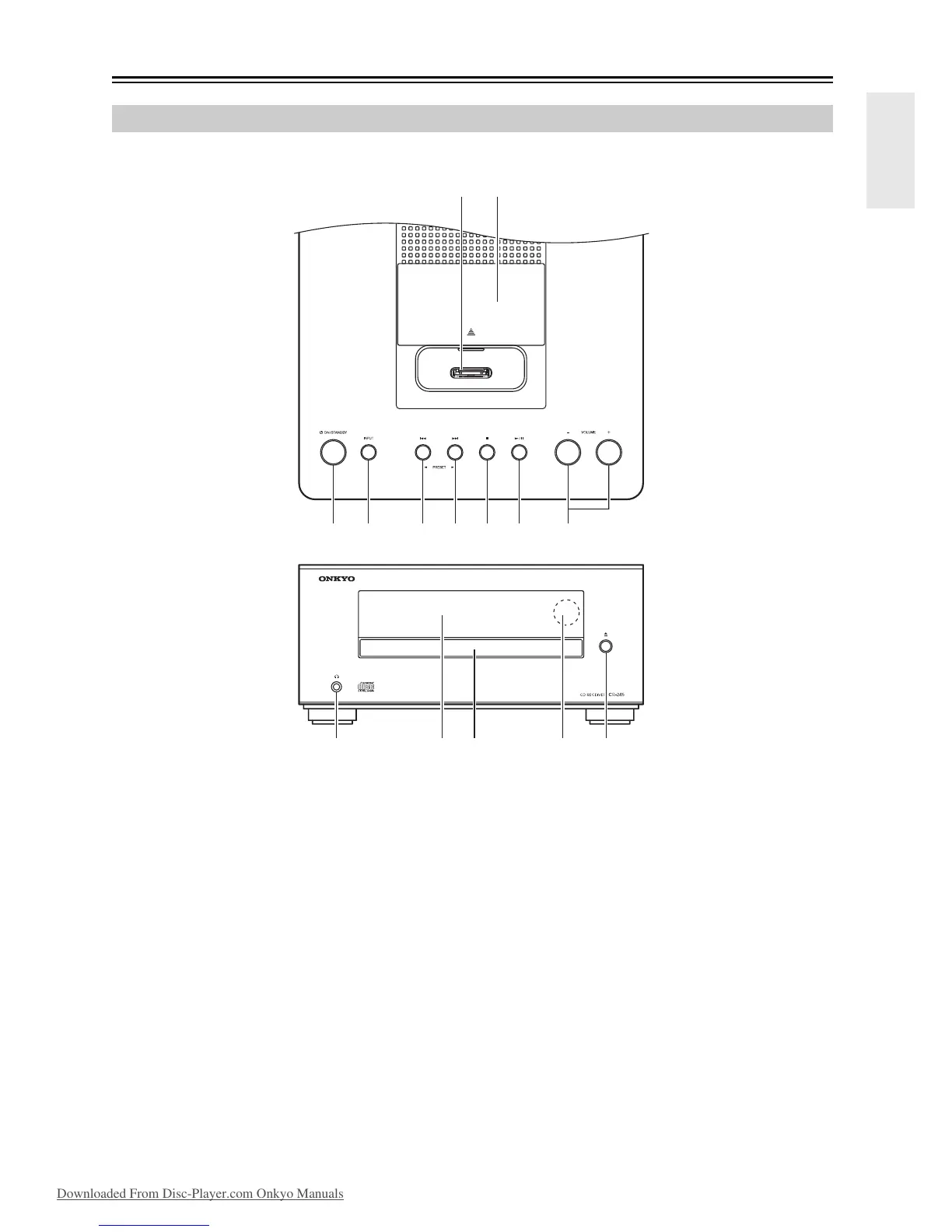

Top and Front Panels
a b
j k ml n
cidefgh
Top Panel
Front Panel
