Part Names and Functions
1
MD disc slot
Insert an MD in this slot.
2
Remote control sensor
Receives signals from the remote controller.
3 MD REC button
Places the MD player into Record Standby mode.
4
CD DUBBING button
Starts the CD dubbing operation.
5
CD disc tray
Place a CD in the disc tray.
6 STANDBY/ON button
Press this button to turn on the power to the unit or place the unit
in Standby mode.
7
STANDBY indicator
Lights up in Standby mode.
8
PHONES jack
Connect a headphone mini plug here.
9
REC MODE button
Accesses Record Mode settings.
J
MD button
Ejects a loaded MD.
K
MD button
Stops MD playback or recording.
L
MD button
Starts or pauses MD playback or recording. When you press this
button during playback, the unit is placed in Pause mode.
M
VOLUME control
Adjusts the volume level.
N CD button
Ejects a loaded CD.
O
CD button
Stops CD playback.
P
CD button
Starts or pauses CD playback.When you press this button dur-
ing playback, the unit enters Pause mode.
Q
MULTI JOG dial
Turn the dial to select a preset channel or playback track. Press
it to confirm the current setting.
R EDIT/NO/CLEAR button
Enables you to adjust settings for recording and playback, and
select editing operations. It also cancels the displayed setting.
S YES/MODE button
Press this button to confirm the displayed settings for recording,
playback, and other editing operations.
T TIMER button
Press this button to enable the Timer function.
U DISPLAY button
Each time you press this button, the information on the display
changes. This button also enables you to select the input char-
acter type.
V INPUT/CURSOR buttons
Enable you to select an input source. Alternatively, they enable
you to insert, correct, or erase characters.
W GROUP button
Use this button for Group recording/playback.

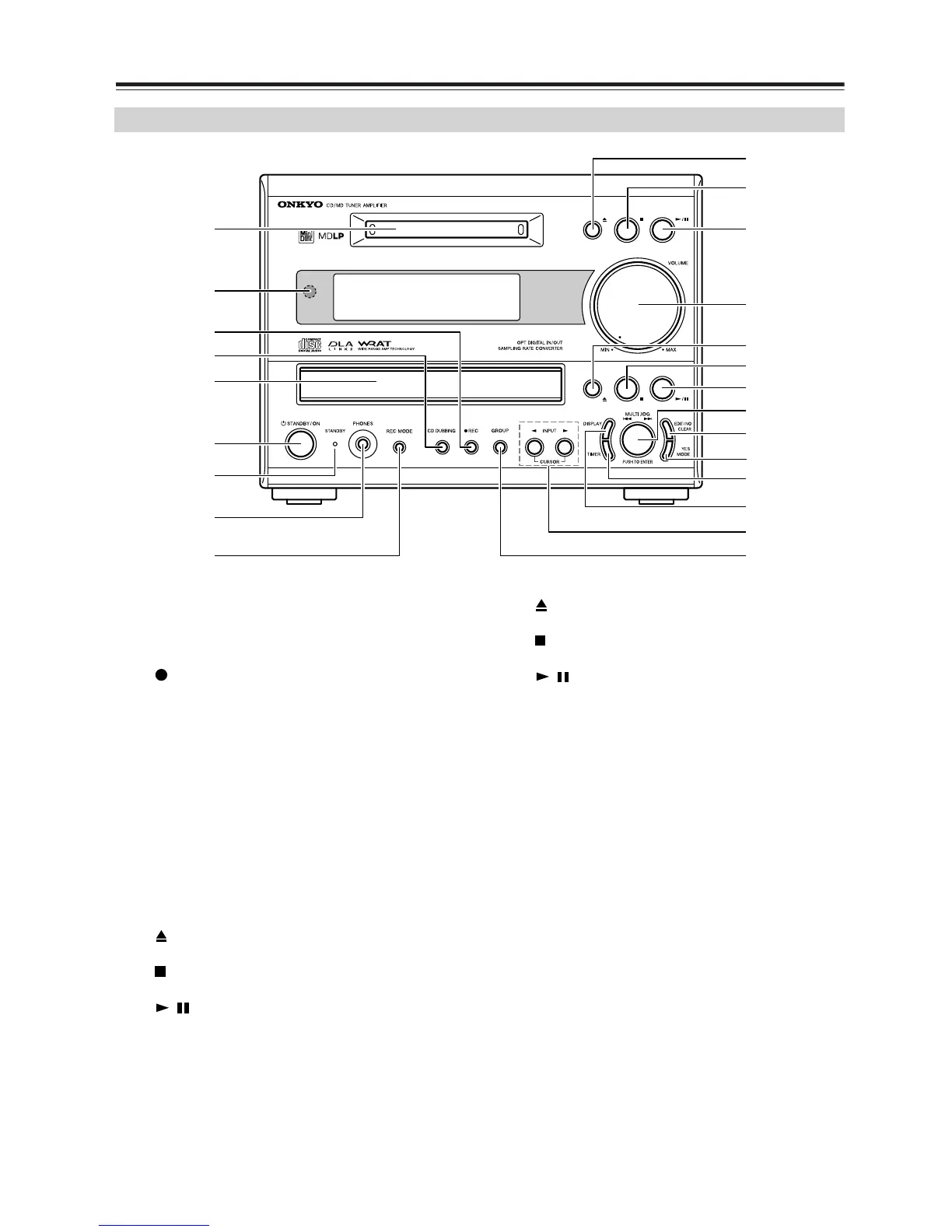

Front panel
1
2
3
4
5
6
7
8
L
M
P
R
S
T
V
U
W
Q
N
K
J
9
O
/
/
